Ohaus DF 5000 Mild Steel DF52P300F1S (300kg x 50g)

Was £2,410.00
£1,928.00
2,313.60 Incl. VAT)
Item in Stock
(0 review)

Click for Accessories

About the Ohaus DF 5000 DF52P300F1S

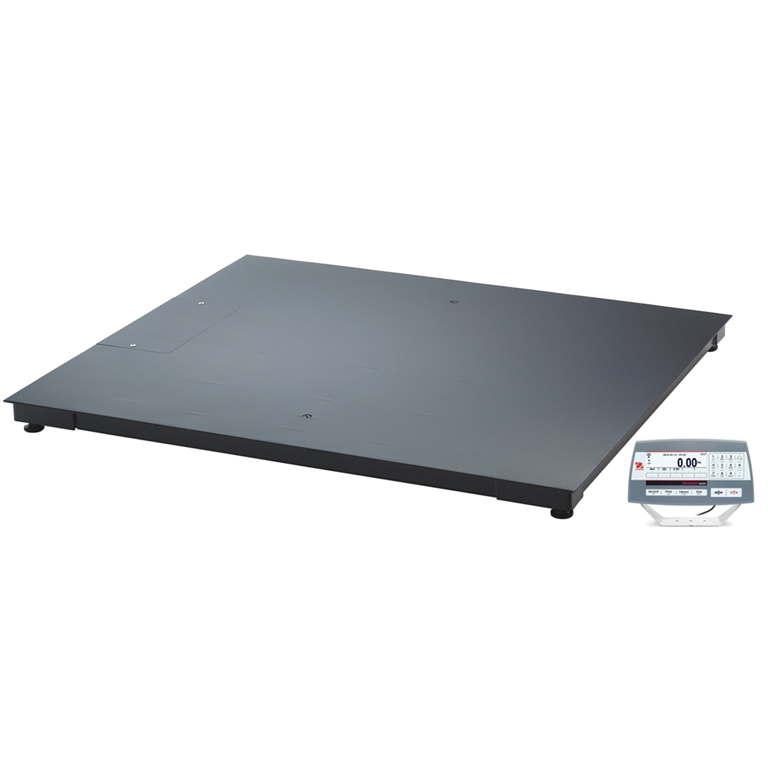

The Ohaus DF 5000 DF52P300F1S Mild Steel Floor Scale is German built for the most demanding of industrial applications. Painted mild steel steel platform.  Available as floor or pit mounted, (pit frames and ramps available) powered by four stainless steel IP68 OIML R60 hermetically sealed load cells. OhausTD52P Multifunctional indicator with large backlit display, Alphanumeric keypad and function keys. Enclosure ABS plastic with powder-coated steel bracket.  *RS232 is standard and optional interfaces RS232/RS485/USB device, Ethernet and Bluetooth/WiFi, Analog Output are available. Weighing capacity 300kg x 50g increments. Platform size 800 x 800 x 90mm.


Ohaus DF 5000 DF52P300F1S features -


Applications

Weighing, Parts Counting, Percent Weighing, Check-weighing, Dynamic Weighing (Display Hold)
Display

Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation

Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication

Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet, and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction

ABS plastic indicator, black painted steel platform, IP67 stainless steel junction box with top access, IP68 OIML R60 electro-polished stainless steel load cells, available pit frames mounting
Design Features

Structural channel bracing and pendulum design feet with removable rubber cap, 150% overload protection. Check-weighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare.

* Note:
Analog Output Kit, TD52
2nd RS232/RS485/USB, TD52
I/O with Relay (2 In/4 Out)
Only one of them can be used at the same time

USB Host for Dongle, TD52
Ethernet Kit, TD52
USB Host for Flash Drive
Only one of them can be used at the same time
