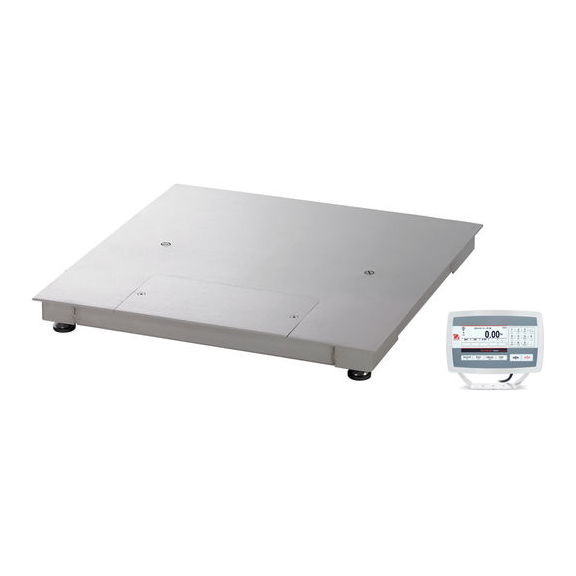

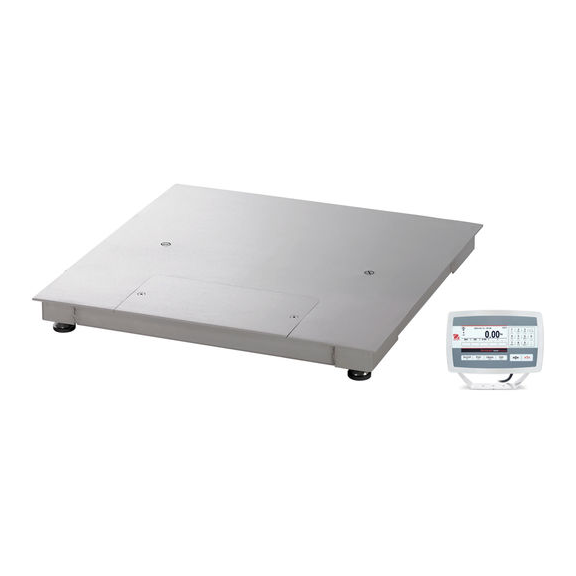

Ohaus DF 5000 Stainless Floor Scale

The Ohaus DF 5000 Washdown Stainless Floor Scales are German built for the most demanding of industrial applications. Bead-blasted stainless steel platform, IP67 stainless steel junction box with top access, Available as floor or pit mounted, (pit frames and ramps available) powered by four stainless steel IP68 OIML R60 hermetically sealed load cells. Complete with the OhausTD52XW Multifunctional indicator with large backlit display and Alphanumeric keypad and function keys which allow for a simplified user experience. The TD52XW is housed within a stainless IP68 rated enclosure. RS232 is standard and has optional interfaces RS232/RS485/USB device, Ethernet and Bluetooth/WiFi, Analog Output and Discrete I/O with relays. Applications include - Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing (Display Hold).

Ohaus DF 5000 Stainless Steel Floor Scales features -

Applications

Weighing, Parts Counting, Percent Weighing, Check weighing, Dynamic Weighing (Display Hold), Filling

Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels

Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)

Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet, and Wi-Fi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock

Construction
ABS plastic indicator, black painted steel platform, IP67 stainless steel junction box with top access, IP68 OIML R60 electro-polished stainless steel load cells, available pit frames mounting

Design Features
Structural channel bracing and pendulum design feet with removable rubber cap, 150% overload protection. Check weighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare.
