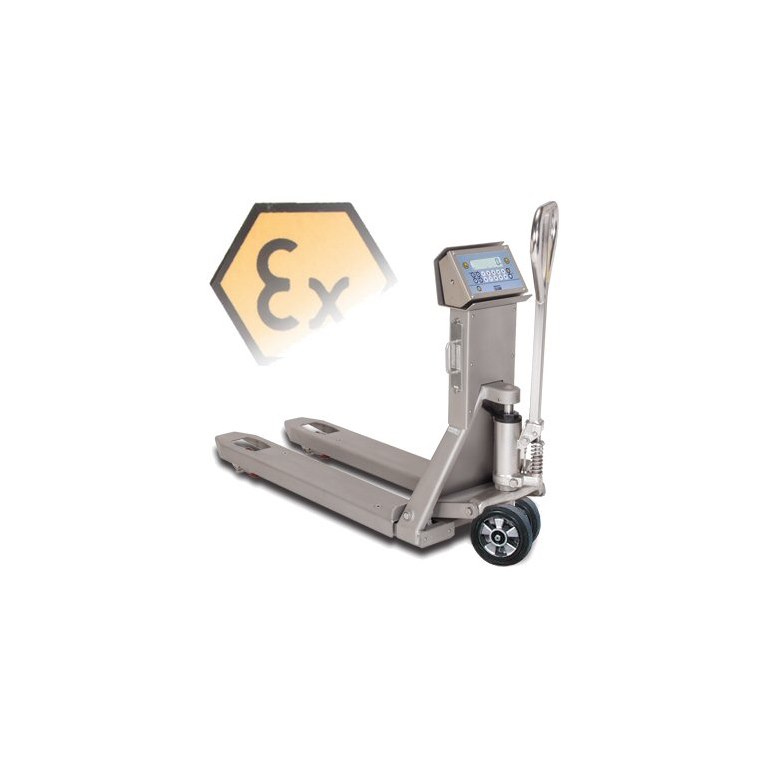

Dini Argeo TPW20IEX2GD Atex Pallet Truck Scale
The Dini Argeo TPW20IEX2GD Stainless Steel pallet truck scales are part of their 'Hazardous Zone' series. With a capacity of 2000kg and a 10x high resolution function the TPWI20EX2GD is the ideal solution for accurate and reliable weighing in dangerous areas classified as hazardous (Zones 1 and 21 and 2 and 22) The bearing structure and lifting pump are made fron stainless steel and the indicator is housed within an IP68 stainless enclosure and has a large 25mm LCD display which can be easily seen even in poor lighting conditions. The four load cells are IP68 and Atex certified. User features include lb/kg conversion; formulation; counting; in/out weighing etc. Power is supplied via a built-in retractable rechargeable battery for recharging in a safe zone, giving up to 150 hours of continuous use.
Dini Argeo TPW20IEX2GD Hazardous Zone Atex Pallet Truck Scale details:
- Maximum lifting capacity: 2000 kg.
- Accuracy: +/- 0.1% of the maximum capacity.
- Fork dimensions 1182 x 550 x 80 mm.
- Weighs about 135 kg.
- Bearing structure entirely in extra thick sheet steel.
- Lifting pump in STAINLESS steel.
- Steering wheels with rubber coating.
- Double loading rollers with a polyurethane coating.
- 4 stainless steel IP68 Atex certified shear-beam load cells.
- Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 17 numerical/functional keys.
- Calibration and Set-Up parameters configurable from keyboard.
- Power supply through extractable battery, rechargeable in safe zone.
- 150-hour approximate operating time.
- Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
Zones 1 and 21 & 2 and 22
| Code | Max (kg) |
d (kg) |
CE-M 3000e (kg) |
| TPW20IEX2GD | 500/1000/2000 | 0,2/0,5/1 | |
| TPW20IEX2GDM Trade Approved |
1000/2000 | 0,5/1 |
