Systec IT1 EX2/22 Intrinsically Safe Bench Scales
About the Systec IT1 Intrinsically Safe Bench Scales
Systec IT1 EX2/22 Intrinsically Safe bench scales are ATEX Rated Zone 2/22 and designed to be used in hazardous environments and meet global standards in metrology and electrical safety with precision weighing.ATEX approval
II 3G Ex e ic IIC T4 Gc (gas)
II 3D Ex ic tc IIIC T135°C Dc (dust)
IT1 EX2/22 indicator has a stainless steel enclosure dated IP65, bright 11cm colour screen and a sealed membrane keyboard suitable for harsh environments, all cable connections through sealed cable glands. Power - 110–240 V AC, 50/60 Hz or 12–30 V DC via integrated power supply unit, or 12–30 V DC for power supply via external battery. Optional DC and panel mount versions available as below. All Linked to either Powder coated mild steel bases with stainless top plate or all stainless bases. All with Atex load cells.
Mild steel bases - ATEX load cells: Aluminium IP67 - FX/LX/XLX models; ATEX load cells: Stainless steel IP67 - BX modelsStainless bases - ATEX SBX Stainless Steel IP67 all capacities; ATEX SFX/SLX/SXLX Stainless IP68 all capacities.

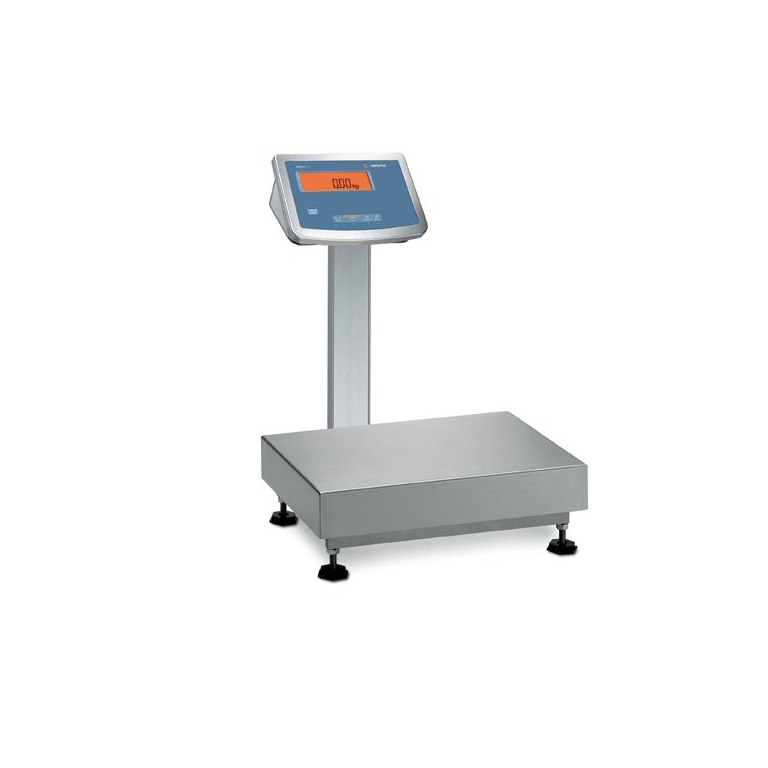

Systec IT1 EX2/22 Intrinsically Safe Bench Scale
The Systec IT1 EX2/22 indicator has 4 power options as follows:
Standard Desk/Wall Verision - Standard Enclosure 110-240 VAC
Panel Mount Version 110-240 VAC.
Standard Enclosure or Panel Mount 12-30 VDC
Heavy Duty Mild Steel Single load cell base:
Heavy duty 'X' shaped construction
Powder coated mild steel. Stainless steel top plate
IP67 ATEX load cell
Column mounted on short side
370mm circular column on BX models, 650mm circular column on larges sizes
Other capacities available. SLS size pallet delivery only
Heavy Duty Stainless load cell base:
C3 approved stainless steel load cell
Heavy duty 'X' shaped construction
Column mounted on short side
370mm circular column on the SBX models, 650mm box section column on larger sizes (top bracket not included)
SBX IP67 rating. SFX,SLX, SXLX IP69K rating
SXLX size pallet delivery only
ATEX Rated Zone 2/22 Explanation:
Zone 2 - A place in which an explosive atmosphere consisting of a mixture with air of dangerous substances in the form of gas, vapor or mist is not likely to occur in normal operation but, if it does occur, will persist for a short period only.
Zone 22 - A place in which an explosive atmosphere in the form or a cloud of combustible dust in air is not likely to occur in normal operation but, if it does occur, will persist for a short period only.
Model (WB Series) |
Weighing Capacity (Max) (kg) |
Readability (d) g |
Weigh Plate (mm) |
|---|---|---|---|
| BX-6 | 6 | 1 | 400 x 300 |
| BX-15 | 15 | 2 | 400 x 300 |
| BX-30 | 30 | 5 | 400 x 300 |
| FX-30 | 30 | 5 | 500 x 400 |
| FX-60 | 60 | 10 | 500 x 400 |
| LX-60 | 60 | 10 | 600 x 500 |
| XLX-60 | 60 | 10 | 800 x 600 |
| FX-150 | 150 | 20 | 500 x 400 |
| LX-150 | 150 | 20 | 600 x 500 |
| XLX-150 | 150 | 20 | 800 x 600 |
| FX-300 | 300 | 50 | 500 x 400 |
| LX-300 | 300 | 50 | 600 x 500 |
| XLX-300 | 300 | 50 | 800 x 500 |
Model (X Series) |
Weighing Capacity (Max) (kg) |
Readability (d) g |
Weigh Plate (mm) |
|---|---|---|---|
| SBX-6 | 6 | 1 | 400 x 300 |
| SBX-15 | 15 | 2 | 400 x 300 |
| SBX-30 | 30 | 5 | 400 x 300 |
| SFX-30 | 30 | 5 | 500 x 400 |
| SFX-60 | 60 | 10 | 500 x 400 |
| SLX-60 | 60 | 10 | 600 x 500 |
| XLX-60 | 60 | 10 | 800 x 600 |
| SFX-150 | 150 | 20 | 500 x 400 |
| SLX-150 | 150 | 20 | 600 x 500 |
| SXLX-150 | 150 | 20 | 800 x 600 |
| SFX-300 | 300 | 50 | 500 x 400 |
| SLX-300 | 300 | 50 | 600 x 500 |
| SXLX-300 | 300 | 50 | 800 x 500 |
