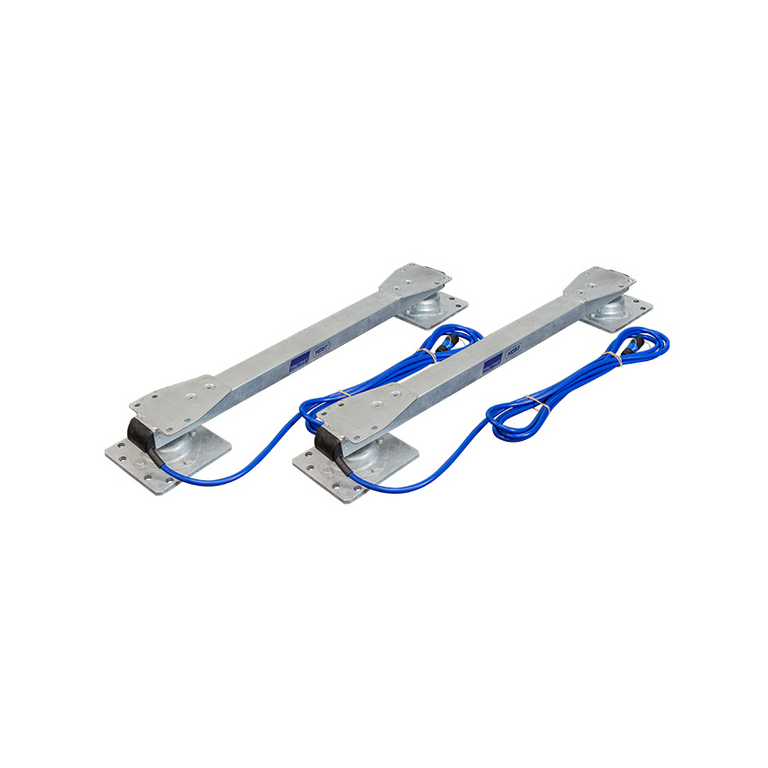

The Tru-Test HD5T load bars replace the now obsolete HD1010 load bars. Tru-Test HD5T load bars are designed for durability and performance in harsh environments. Easily installed under any crush. Bolt to the crush and then bolt the load bars to a level concrete surface. Huge 5,000 kg capacity. Ruggedly constructed from galvanised steel. The sealed load cells have heavy duty TPR/PVC cables which minimises the risk of cable damage and ensures that the HD5T Load Bars can endure the harshest agricultural environment. Each heavy duty load bar is 1010mm long and the weight of the pair is only 36kg.


Tru-Test HD5T Load Bars with a capacity suitable for the heaviest of cattle crushes, you will have outstanding performance with the best weighing set up for your animals.

TECHNICAL SPECIFICATION

CABLE LENGTH: 5 m (16 ft)
OVERALL HEIGHT: 110 mm (4.3″)
BAR SECTION WIDTH: 75 mm (3”)
RESOLUTION: Base resolution with Tru-Test scales: 2 x HD5T load bars = 0.5 kg (1 lb)
TOTAL CAPACITY: 2 x HD5T load bars = 5,000 kg (11,000 lb)
NOMINAL LENGTH: 1115mm (43”)
ACCURACY: +/- 1 % or 2 resolutions, whichever is greater
WEIGHT: Pair: 36 kg (80 lb)
