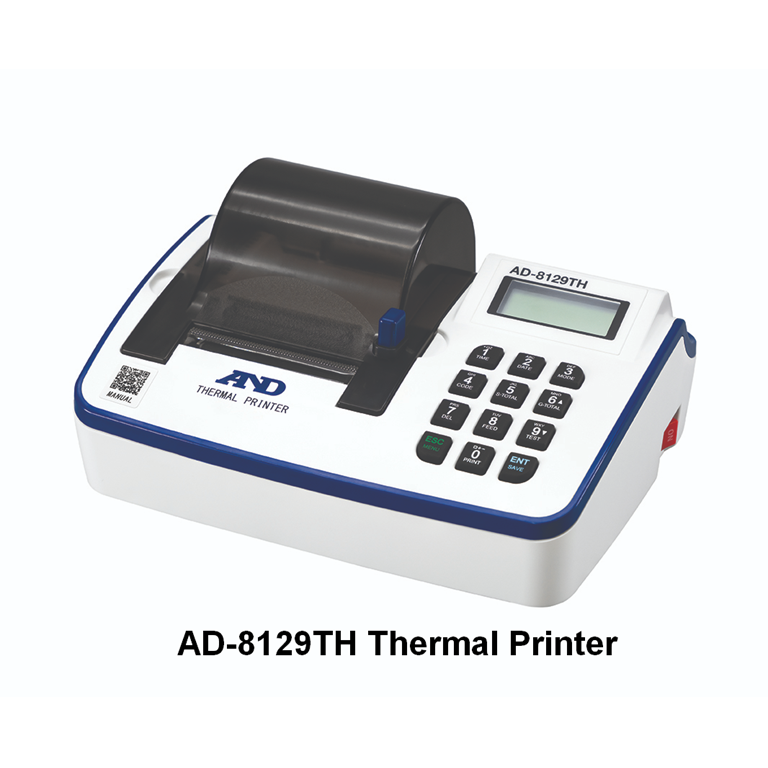

A&D AD-8129TH Statistical Thermal Printer

About A&D AD-8129TH Statistical Thermal Printer

The new A&D AD-8129TH statistical thermal printer used to connect to any of A&D’s scales and balances. With thermal printing, the printed contents can be clearly and easily viewed, and the print density can also be changed. Light weight and compact size of the printer enables it to be set up in various locations and be easily transported. The printer is equipped with the RS-232C or current loop interface for data input, so it allows easy connections between the printer and a weighing device. Dust-free paper sold separately is available for using the printer in cleanrooms (AX-PP183-S). Built-in clock function of the printer enables printing out of the date and time. Printing at a regular interval is possible. (Interval printing) Statistical calculation results of the weighing data, including standard deviation, can be printed out. Time series variation of the weighing data in chart form can be printed out. The liquid crystal display provides easy conditions confirmation and settings of the printer. By pressing the key switch of the printer, a re-zero command to zero the display and request commands for the weighing data can be transmitted to a weighing device, enabling the weighting data to be printed out without touching the highly sensitive weighing device.

Specifications

Printing method Direct thermal Character specifications 13 × 28 dots, 1.5 (W) × 2.6 (H) mm Number of characters printed 24 characters/line Operating environment 0 to 40 ˚C (32 to 104 ˚F), 20 to 85 %RH (no condensation) Storage environment −10 to 50 ˚C (14 to 122 ˚F), 10 to 90 %RH (no condensation) Interface RS-232C (D-Sub 9-pin) / Current loop (DIN) Power supply AC adapter Size / weight 174 (W) × 141 (D) × 87 (H) mm / Approx. 500 g Standard accessories Thermal printer paper (1 roll), AC adapter, AC adapter labels, Simplified instruction manual, RS-232C cable (D-Sub 9-pin to 9-pin, 1 m), Power supply cable (2 m)
