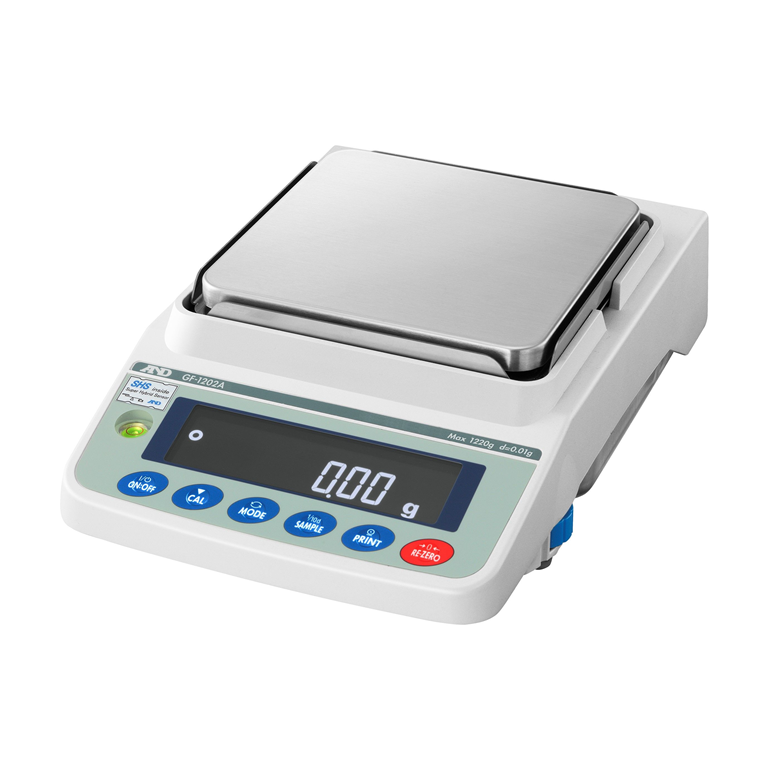

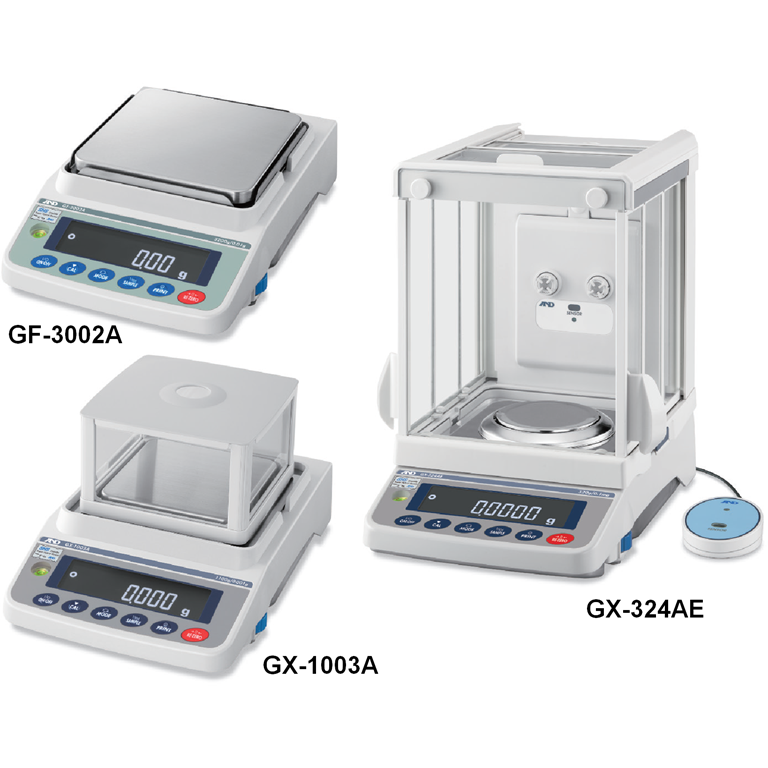

A&D GF-A & GX-A Precision Balances

£0.00
0.00 Incl. VAT)
Item in Stock
(0 review)

Click for External Calibration Models
Click for Internal Calibration Models
Click for Accessories

A&D GX-A and A&D GF-A Apollo precision balance have many new key features including Impact Shock Protection (ISP) and Auto Precision Assessment (APA), both fully explained below.  Models include A&D GF-A for external calibration (calibrating with your own test weights) and  A&D GX-A for internal automatic self-calibration (calibrates itself with an internal weight inside the balance). Both models have Superior overload protection, super-fast stability of less than 1 second for quick weighing readings, large illuminated leveling bubble, super accurate 1mg models, easy leveling feet with large thumb wheels, large bright white display that's clearly visible in bad light, 6 easy to use buttons and RS232 and USB interfaces as standard. Options are listed below to customize your balance.


A&D GX-A and A&D GF-A Apollo Precision Balances - Full Specification:

  • Flow rate display (FRD) that makes calculating and recording flow rates easier and more accurate
  • One touch calibration using internal weight (GX-A)
  • Cushioning under the weighing pan to mitigate impact shocks
  • Protection against vertical and transverse static overloading
  • Flow rate comparator that indicates whether the flow rate is within the designated limits
  • Tare memory function that saves the tare value in non-volatile memory
  • Alert function to ensure that the measured quantity is not smaller than the set minimum weight
  • Data memory function to save weighing results and calibration results
  • Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function for target weighing or checking sample variation
  • Animal weighing (average & hold) function for weighing moving object
  • Statistical calculation function (SCF) to facilitate the analysis of measurements
  • Five-level comparator function with buzzer
  • Auto power ON and OFF functions
  • Density determination function (optional density determination kit available for the 0.001 g models)
  • Underhook for weighing a magnetic material as well as measuring density
  • Security slot in the rear of the balance to accommodate an anti-theft lock
  • Fast stabilization of approx. 1 second (approx. 1.5 seconds with the GX/F-1603A and GX/F-10002A)
  • Selectable response characteristics for trading weighing speed for higher display stability or vice versa
  • Automatic self calibration to maintain accuracy under temperature changes (GX-A)
  • Timed calibration function (GX-A)
  • Large, front-mounted spirit level with LED illumination
  • Easy-to-adjust leveling feet with thumbwheels
  • Clearly visible, reverse backlit LCD display
  • Multiple weighing units: g, oz, lb, lb-oz, ozt, ct, mom, dwt, grain, specific gravity, and a user-programmable unit
  • User access control (UAC) function that password-protects the balance at two levels
  • Key lock function to make the balance operable only by sending commands from an external device
  • Clock and calendar function
  • GLP/GMP/GCP/ISO compliant output to meet documentation requirements
  • Universal Flexi Coms (UFC) function to edit serial data output/printout format
  • Gross/Net/Tare output
External Calibration Models
Model Capacity Div. Pan Size Code
 GF-123A  122g  0.001g  128x128mm  GF-123A
 GF-203A  220g  0.001g  128x128mm  GF-203A
 GF-303A  320g  0.001g  128x128mm  GF-303A
 GF-403A  420g  0.001g  128x128mm  GF-403A
 GF-603A   620g  0.001g  128x128mm  GF-603A
 GF-1003A   1100g  0.001g  128x128mm  GF-1003A
 GF-1603A   1620g  0.001g  128x128mm  GF-1603A
 GF-1202A   1220g  0.01g  165x165mm  GF-1202A
 GF-2002A
2200g  0.01g  165x165mm  GF-2002A
 GF-3002A  3200g  0.01g  165x165mm  GF-3002A
 GF-4002A  4200g  0.01g  165x165mm  GF-4002A
 GF-6002A  6200g  0.01g  165x165mm  GF-6002A
 GF-10002A   10200g  0.01g  165x165mm  GF-10002A
 GF-6001A  6200g  0.1g  165x165mm  GF-6001A
 GF-10001A  10200g  0.1g  165x165mm  GF-10001A
Internal Calibration Models
Model Capacity Div. Pan Size Code
 GX-203A  220g  0.001g  128x128mm  GX-203A
 GX-303A  320g  0.001g  128x128mm  GX-303A
 GX-403A  420g  0.001g  128x128mm  GX-403A
 GX-603A   620g  0.001g  128x128mm  GX-603A
 GX-1003A   1100g  0.001g  128x128mm  GX-1003A
 GX-1603A   1620g  0.001g  128x128mm  GX-1603A
 GX-2002A
2200g  0.01g  165x165mm  GX-2002A
 GX-3002A  3200g  0.01g  165x165mm  GX-3002A
 GX-4002A  4200g  0.01g  165x165mm  GX-4002A
 GX-6002A  6200g  0.01g  165x165mm  GX-6002A
 GX-10002A   10200g  0.01g  165x165mm  GX-10002A
 GX-6001A  6200g  0.1g  165x165mm  GX-6001A
 GX-10001A 10200g 0.1g  165x165mm GX-10001A
