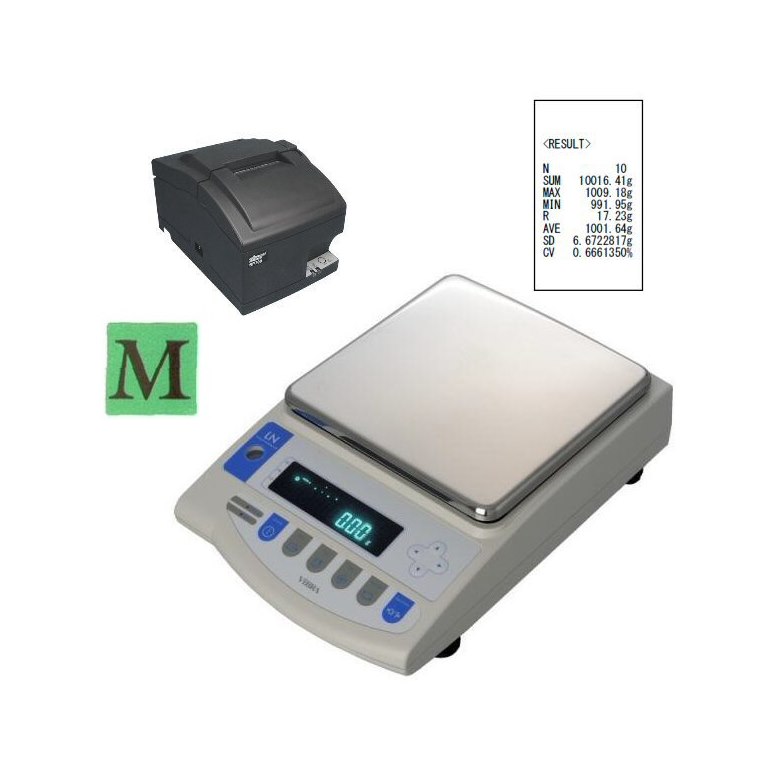

Vibra LN Average Weight System

ViBRA LN series has the function to automatically calculate the various statistical data from the measurement results making them ideal for quality control and average weight control. This data can be useful for the quality control in the assembling line and the statistical checks of prepackaged products. The data can be output to the printer and PC. System complete with Star SP712 tally roll printer. Capacities available - 2200g x 0.1g or 220g x 0.01g.

Vibra LN Class II Average Weight Sytem

• Mono-metal tuning-fork sensor (MMTS) with 5 year warranty

• Aluminium die cast housing

• 18mm Brigh green fluorescent display

• Direction keys for easy function setting

• RS232 as standard

• Serial cable

• Bar graph display. Statistic function ideal for quality control and average weight control

• Sleep mode.

• Dust cover

• Under-bench weighing.

• Density measurement mode

• Windshield standard on 1mg division models

Star SP712 tally roll dot matrix printer

• High speed, two colour high quality 9-pin printer capable of producing 13 x 20 line receipts per minute.

• Easy paper loading, drop a roll of paper into the printer, close the lid and the paper is loaded

• Splash resistant design with easy-clean curves

• Internal power supply.

How the System Works

• The Vibra LN can print out when it’s in 'statistical mode'.

• Data can be stored either manually or automatically so either press the Print key after each weighing or set the balance to auto so that it takes the data when the weight is stable.

• Star SP712 Printout explained:

• N = Number of Samples

• Sum = total weight

• Max = max weight

• Min = min weight

• R = range so difference between max and min

• Ave = average

• SD = standard deviation

• CV = coefficient of variation

• Date and time can also be produced
