Marsden OCS Crane & Hanging Scales

About the Marsden OCS Crane Scales

A selection of hanging and crane scales to measure suspended loads in commercial and industrial applications. Ideal for weighing odd shaped loads which are difficult to put on a standard platform. Widely used in farms, factories, rigs, ship yards and recycling.

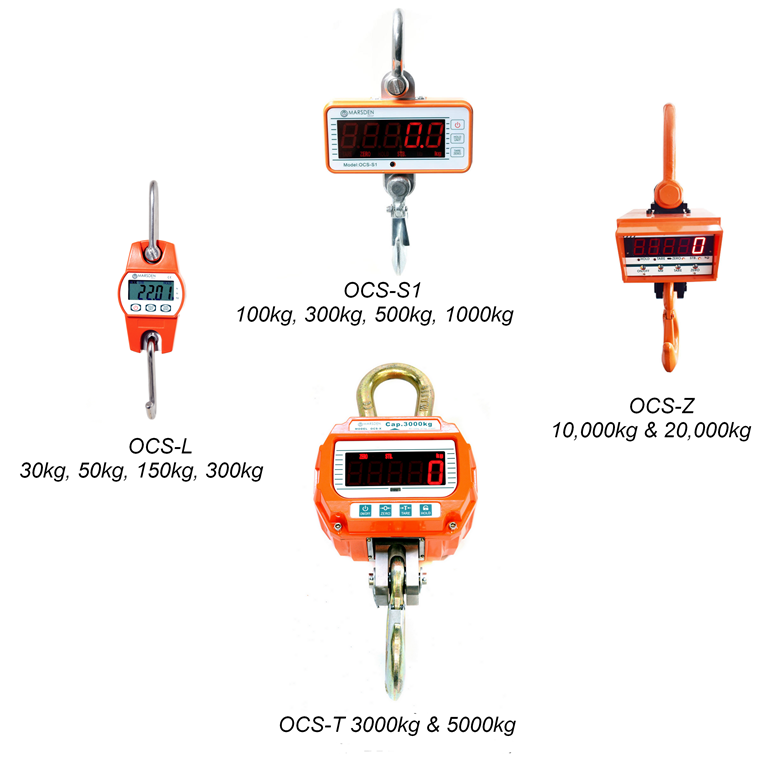

Choose from-

OCS-L Crane Scale. Die-cast aluminium casing and weighs in at only 0.6kg. Large 20mm back lit LCD display; overload alarm; zero; tare; hold. Stainless steel shackle and hook. Power from 3 x AA batteries giving up to 120 hours of use.

OCS-S1 Crane Scale. with die cast aluminium case. Large bright LED display, easy to read in difficult lighting. Overload alarm; zero; tare; hold. Stainless steel shackle and alloy steel hook. Power from 4 x AA batteries. 100kg to 1000kg capacities.

OCS-X Crane Scale. has a die cast aluminium case. Large bright LED display, easy to read in difficult lighting. Overload alarm; zero; tare; hold. Stainless steel shackle and alloy steel hook. Power from 4 x AA batteries. 1000kg to 3000kg capacities.

OCS-Z Crane Scale. has a steel casing and high strength load receptor. Large 56mm red LED display can be seen in difficult lighting situations. Fitted with standard eye hook and standard bow shackle. Power from a long life internal 6V/ah rechargeable battery (over 120 hours continuous use). Infra red remote control comes as standard and enables easy operation at a safe distance from the crane scale. Capacities of 10 Tonnes and 20 Tonnes.

Marsden OCS Range

Model	Capacity	Division	Power	Dimensions
OCS-L 30	30kg	0.1kg	3 AA batteries	55mm x 80mm x 290mm
OCS-L 50	50kg	0.2kg	3 AA batteries	55mm x 80mm x 290mm
OCS-L 150	150kg	0.05kg	3 AA batteries	55mm x 80mm x 290mm
OCS-L 300	300kg	0.1kg	3 AA batteries	55mm x 80mm x 290mm
OCS-S1 100	100kg	0.05kg	Rechargeable Battery	60mm x 145mm x 275mm
OCS-S1 300	300kg	0.1kg	Rechargeable Battery	60mm x 145mm x 275mm
OCS-S1 500	500kg	0.2kg	Rechargeable Battery	60mm x 145mm x 275mm
OCS-S1 1000	1000kg	0.5kg	Rechargeable Battery	60mm x 145mm x 275mm
OCS-X 1000	1000kg	0.5kg	Rechargeable Battery	215mm x 190mm x 580mm
OCS-X 3000	3000kg	1kg	Rechargeable Battery	215mm x 190mm x 580mm
OCS-X 5000	5000kg	2kg	Rechargeable Battery	215mm x 190mm x 580mm
OCS-Z 10K	10,000kg	5kg	Rechargeable Battery	955mm high x 400mm wide
OCS-Z 20K	20,000kg	10kg	Rechargeable Battery	955mm high x 400mm wide
