Sauter FH M Digital Force Gauges

£0.00
0.00 Incl. VAT)
Item in Stock
(0 review)

Click for Gauge Selection
Click for DAkkS Certification

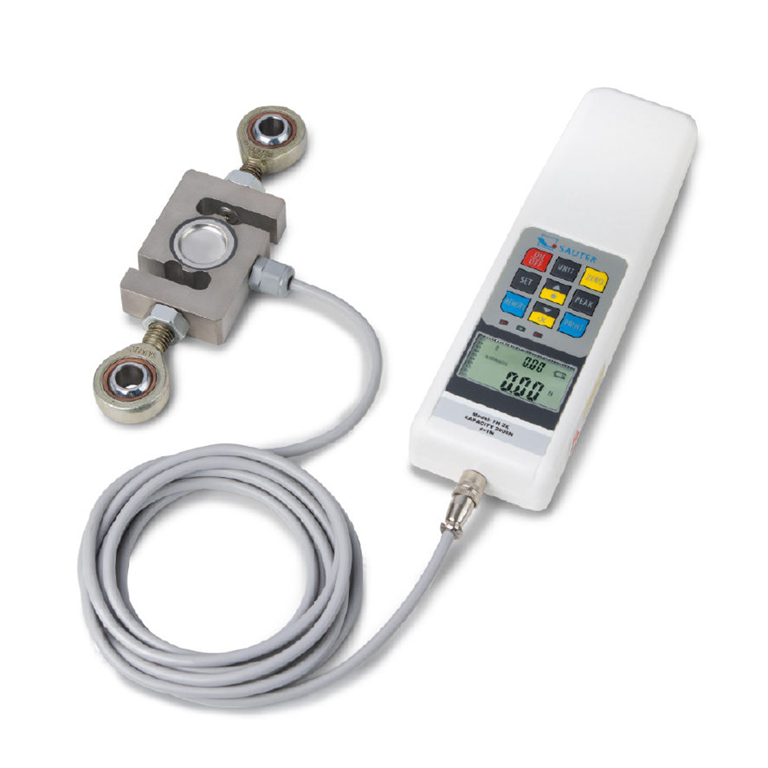

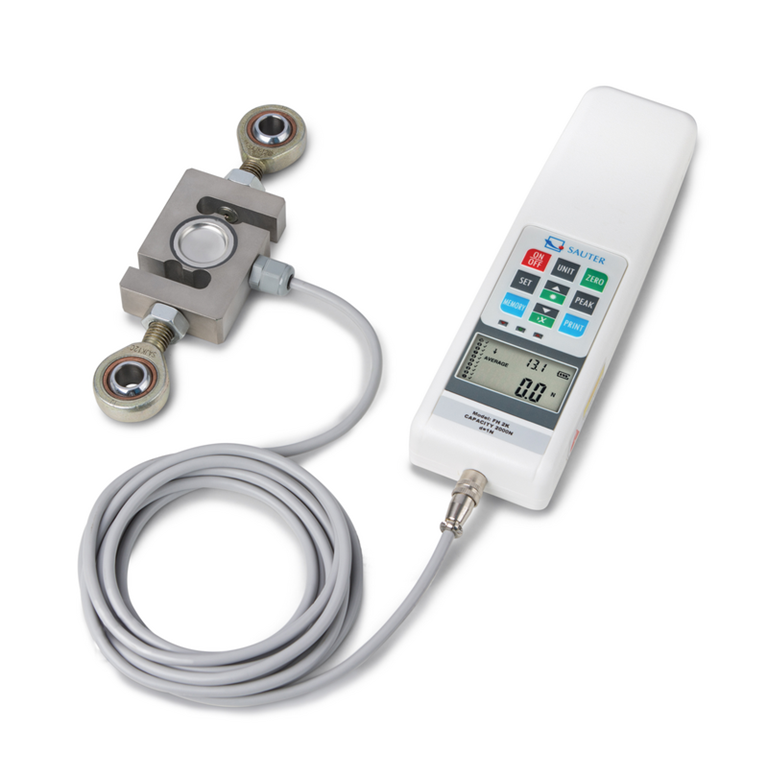

Sauter FH M Digital Force Gauges with remote sensor. Real time or Peak Hold Mode; Selectable measuring units: N, lb, kg; Reversable display with backlight; Data interface RS 232 C; Real time or Peak Hold Mode; Function to set limits: Programmable high /low setpoints for go/no-go testing; Light and sound signal output; Auto-Power-Off; Statistics function.

Sauter FH M Digital Force Gauges
Technical data
• High resolution: up to 10,000 points (total measuring range)
• Measuring frequency: 2000 Hz
• Precision: 0,5 % of [Max]
• Overload protection: 150 % of [Max]
• Dimensions housing LxWxH 238x63x36 mm
• Dimensions sensor WxDxH
• FH 1K - FH 20K: 51x76,2x19 mm
• FH 50K: 76,3x108x25,5 mm
• FH 100K: 125,2x178x51,3 mm


Model
Measuring Range
(Max) kN
Readout
(d) N
DAkkS Certification
Tensile
DAkkS Certification
Compressive
DAkkS Certification
Tension/Compressive
FK 1K   1000  0.5  963-162  963-262 963-362
 FH 2K  2000  1  963-162  963-262  963-362
 FH 5K 5000   963-163  963-263  963-362
 FH 10K  10000  5  963-164  -  -
 FH 20K 20000   10  963-164  -  -
 FH 50K  50000  10  963-165  -  -
 FH 100K 100000   50  963-166  -  -
