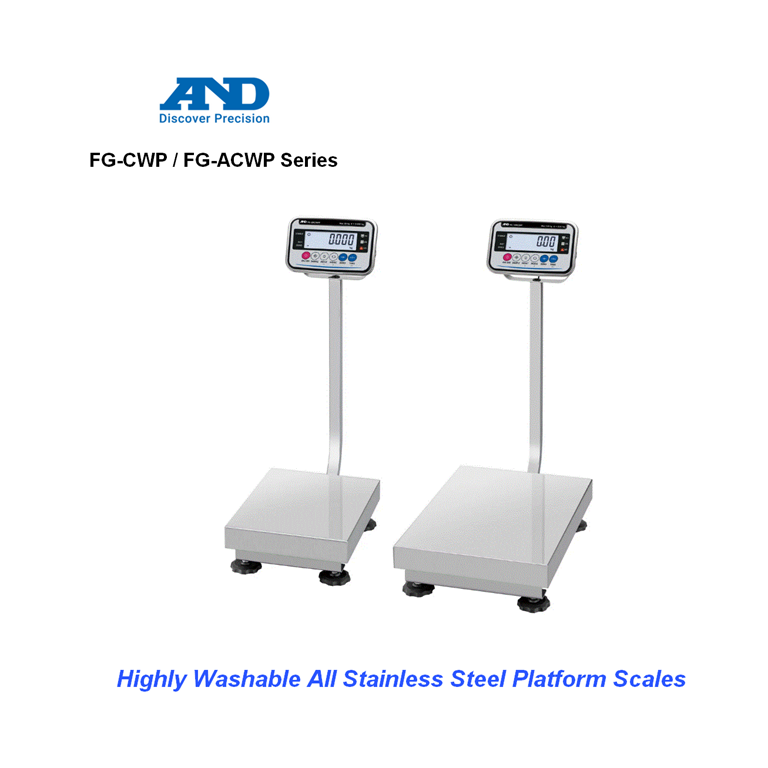

A&D FG-CWP/ FG-ACWP IP67 Washdown Scales

About the A&D FG-CWP/FG-ACWP IP67 Scales

The A&D FG-CWP/FG-ACWP Series scales have IP67 dust and waterproof rating. They are built to last with all SUS304 Stainless Steel Construction. The load cell has a protective coating, ensuring longevity and resistance to corrosion. This all-stainless steel construction is suitable for a wide range of applications, even in harsh environments. They are designed for sterile environments such as pharmaceuticals and food production.They can be easily cleaned with alcohol (diluted to 70% or less).
The FG-CWP Series features bright and multi-coloured LED comparator light Easily distinguish between acceptable and non-acceptable weights with the help of these intuitive lights, reducing the margin for error. Auto-Tare and Negative Comparison. These features make it easy to perform “take-away” check weighing, saving time and effort in your daily operations.
The FG-CWP Series boasts a highly-visible LCD display with a 30 mm character height and white backlight. This makes it easy to read measurements, even in low-light conditions,
Features include - Impact Shock Detection; GMP/GLP Compliant Output; Display Hold Function and Counting Mode; Auto Power On and Off Functions; Password Lock, and Key Restriction;USB Cable and Power Supply; Four Selectable Weighing Resolutions.
Power: FG-CWP supply via USB (Type-A plug), which can be connected to either an AC adapter (provided as standard), a USB port of a PC.
            FG-ACWP supply AC mains (100 to 240 V, 50/60 Hz, 0.1 A Max) AC cable length: Approx. 3m

A&D FG-CWP/FG-ACWP features -

All stainless steel construction^*1
IP67 dust & waterproof
Cleanable with alcohol^*2*3
High-speed measurement of 1 second^*4
Bright and multi-coloured LED comparator lights
Auto-tare and negative comparison functions for "take-away" check weighing
USB cable (3 m) to be connected to either an AC adapter (provided as standard), a USB port of a PC, or an off-the-shelf mobile battery^*5 (FG-CWP)
Power supply and data communication both at the same time when connected to a PC (FG-CWP)
AC mains with 3-meter cable, which is long enough to connect the AC plug to an outlet away from the wet area or to a socket hanging from the ceiling (FG-ACWP)
Highly-visible, LCD display (30 mm character height) with white backlight
Four selectable weighing resolutions
Impact shock detection (ISD) to prevent error and damage to the load cell
Adjustable response characteristics
GMP/GLP compliant output to meet documentation requirements
Display hold function
Counting mode function
Auto power ON and OFF functions
Freely adjustable display angle
Password lock and key restriction functions

*1 Display unit, weighing pan, pole and frame: SUS304
Load cell: SUS420J-2 with protective coating
*2 Alcohol diluted to 70% or less
*3 For the display unit (including the front panel), weighing pan, pole and frame
*4 Typical when the readability is set to normal (factory setting)
*5 For reference, continuous operation time with an off-the-shelf mobile battery (10,000 mAh) is estimated to be approx. 77 hours with backlight on.
