Ohaus Navigator NVT Portable Precision Balances

Ohaus Navigator NVT Balances offer a wide range of weighing applications and features at a budget price. An ultra-fast stabilisation time of less than one second. The Navigator NVT has a 6 full segment LCD white auto backlight display which can be seen even in poor lighting conditions. Multiple application modes such as: counting, percent weighing, checkweighing, display hold and accumulation/totalization. Weighing units: g, kg, N, oz, ozt, dwt, lb, lb:oz, ct, and grains. Power: AC adapter (included) or 4 C batteries (not included). Communication: RS232, USB, or Ethernet (available as accessories) Optional Trade Approved, Legal for Trade models.

                                  Ohaus Navigator NVT Data Transfer

Ohaus Navigator NVT balances -

Applications
Weighing:  Parts Counting, Percent Weighing, Checkweighing
Display: Liquid Crystal Display (LCD) with backlight
Operation; AC adapter (included) or 4 C batteries (not included)
Communication: RS232, USB, or Ethernet (available as accessories)
Construction: ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble
Design Features: Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings

Standard Models

Model	Weighing Capacity (Max) (g)	Readability (d) g	Weigh Plate (mm)	Code
NVT2201	2200	0.1	230 x 174 mm	30456389
NVT4201	4200	0.1	230 x 174 mm	30456390
NVT6201	6200	0.1	230 x 174 mm	30456391
NVT10201				30615587
NVT2200	2200	1	230 x 174 mm	30456392
NVT6200	6200	1	230 x 174 mm	30456393
NVT12000	12,000	1	230 x 174 mm	30456394
NVT22000	22,000	1	230 x 174 mm	30456395

Trade Approved Models

Model	Weighing Capacity (Max) (g)	Verification interval (d) (e) (g)	Weigh Plate (mm)	Code
NVT1601M	1600	0.5	230 x 174 mm	30467835
NVT3200M	3200	1	230 x 174 mm	30467836
NVT6400M	6400	2	230 x 174 mm	30467837
NVT16000M	16,000	5	230 x 174 mm	30467838

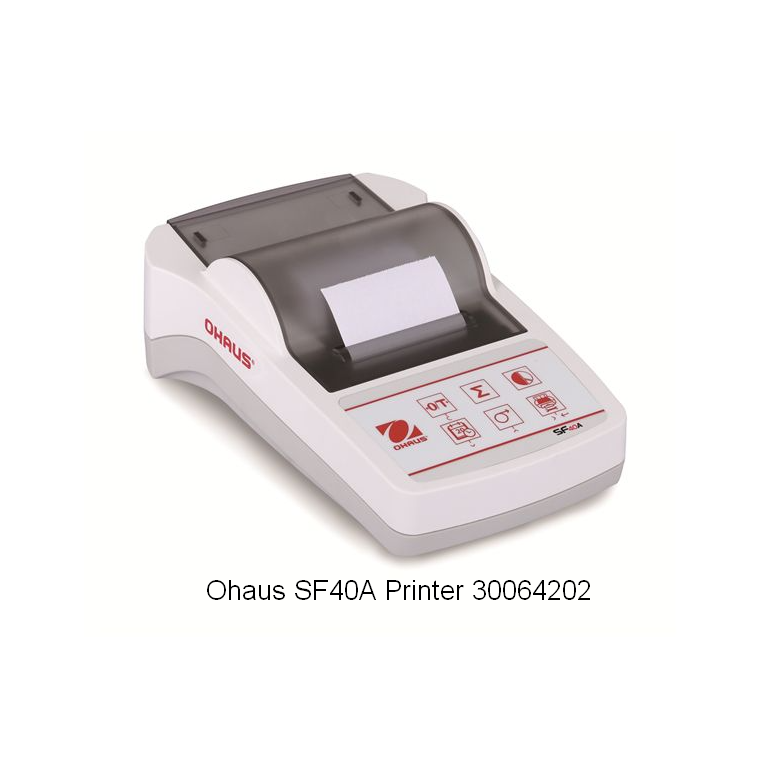

Items 30529323 and 30059316 are included with the SF40A printer package.
Please check cables compatibility with our Sales Support Center prior to placing an order
Note: Scout, Traveler and Navigator require RS232 accessory for printer connection
