Straightpoint Insight Software

Straightpoint INSIGHT software, supplied with an SW-D USB wireless dongle, allows connection of up to 126 Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.

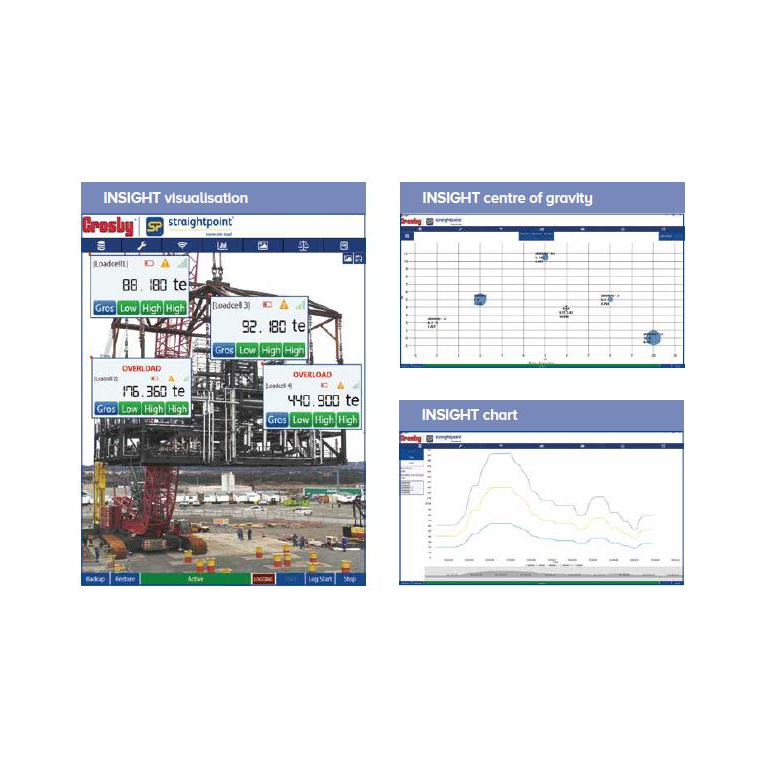

INSIGHT has three main features:
1. Multi-channel display and data logging mode – view and log load data from connected load cells plus totals loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.
2. Visualisation mode – For complicated lifts import a photo of the lift and drag and drop load cell displays – make the screen look like the lift.
3. Centre of gravity mode – Connect to SP’s range of wireless compression load cells and use this feature to weigh and calculate the centre of gravity of large items and structures.
FEATURES
• Logging at timed intervals, manual or on
overload/underload
• Visual and audible alarms indicate overload,
underload, low battery and communications
error
• Zoom in to individual load cell to see data
trends and history
• 100% wireless, no easily damaged cables
• 700m or 2300ft range

Global Specifications - Insight Software
Part number	INSIGHT
Crosby Part number	2789318
USB Dongle Operating temperature	-20°C to 55°C or -4°F to 131°F
Licence	Licence free
Wireless Frequency	2.4GHz
Wireless Range	700 metres or 2300 feet
Loadcell inputs	Up to 126
PC requirements	Intel i3 processor with 2 gb RAM.
Operating system	Windows 7 , Windows 8, windows10
