Systec IT3 EX 2/22 Intrinsically Safe Bench Scale

About the Systec IT3 Intrinsically Safe Bench Scales

The Systec IT3 EX2/22 Intrinsically Safe bench scale has ATEX Approval for use in Ex Zone 1, 2, 21 and 22. Designed to be intrinsically safe in hazardous environments and meet global standards in metrology and electrical safety with precision weighing.
ATEX approval
II 3G Ex e ic IIC T4 Gc (gas)
II 3D Ex ic tc IIIC T135°C Dc (dust)
The IT3 EX2/22 indicator has a stainless steel enclosure rated IP65, bright 13cm colour screen and a sealed membrane keyboard with numeric keys for the input of tare weights and additional information, scale keys for zero setting and taring and function keys. Input of alpha characters via multiple assignment of numeric keys. All cable connections through sealed cable glands and suitable for difficult environmental conditions. Power - 110–240 V AC, 50/60 Hz or 12–30 V DC via integrated power supply unit, or 12–30 V DC for power supply via external battery. Optional DC and panel mount versions available as below. All Linked to WB Powder coated mild steel bases with stainless top plate and heavy duty 'X' shaped construction with Atex load cells.
ATEX load cells: Aluminium IP67 - FX/LX/XLX models
ATEX load cells: Stainless steel IP67 - BX models
Column mounted on short side: 370mm high circular column on BX models, 650mm high circular column on larges sizes.

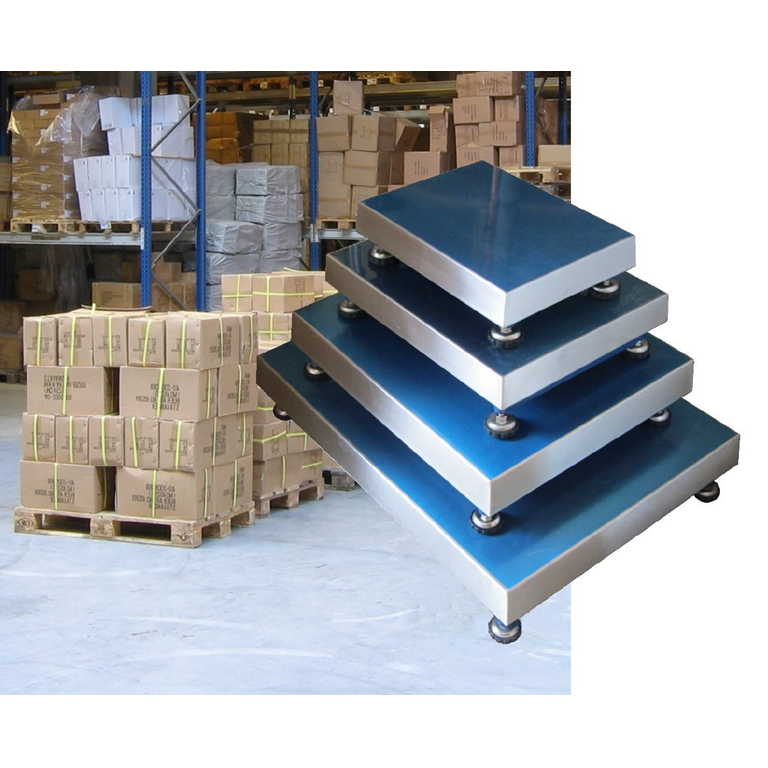

Systec IT3 EX 2/22 Intrinsically Safe Bench Scale weigh bases -

Mild steel stainless top plate Models

Model (WB Series)	Weighing Capacity (Max) (kg)	Readability (d) g	Weigh Plate (mm)
BX-6	6	1	400 x 300
BX-15	15	2	400 x 300
BX-30	30	5	400 x 300
FX-30	30	5	500 x 400
FX-60	60	10	500 x 400
LX-60	60	10	600 x 500
XLX-60	60	10	800 x 600
FX-150	150	20	500 x 400
LX-150	150	20	600 x 500
XLX-150	150	20	800 x 600
FX-300	300	50	500 x 400
LX-300	300	50	600 x 500
XLX-300	300	50	800 x 500

All stainless Models

Model (X Series)	Weighing Capacity (Max) (kg)	Readability (d) g	Weigh Plate (mm)
SBX-6	6	1	400 x 300
SBX-15	15	2	400 x 300
SBX-30	30	5	400 x 300
SFX-30	30	5	500 x 400
SFX-60	60	10	500 x 400
SLX-60	60	10	600 x 500
SXLX-60	60	10	800 x 600
SFX-150	150	20	500 x 400
SLX-150	150	20	600 x 500
SXLX-150	150	20	800 x 600
SFX-300	300	50	500 x 400
SLX-300	300	50	600 x 500
SXLX-300	300	50	800 x 500
