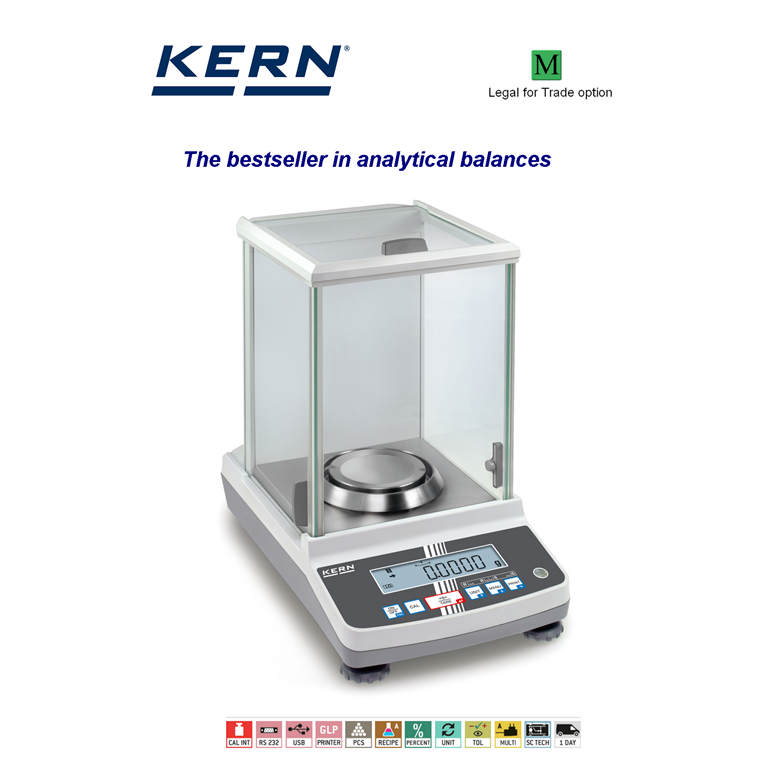

Kern ACS & ACJ Analytical Balances
About the Kern ACS & ACJ Analytical Balances
The Kern ACS and ACJ series are high-accuracy analytical balances with Single-cell advanced technology:
•Fully automatic manufactured weighing cell from one piece of material
•Stable temperature behaviour
•Short stabilisation time: Steady weight values within approx. 3 sec under laboratory conditions
•Shock proof construction
•High corner load performance

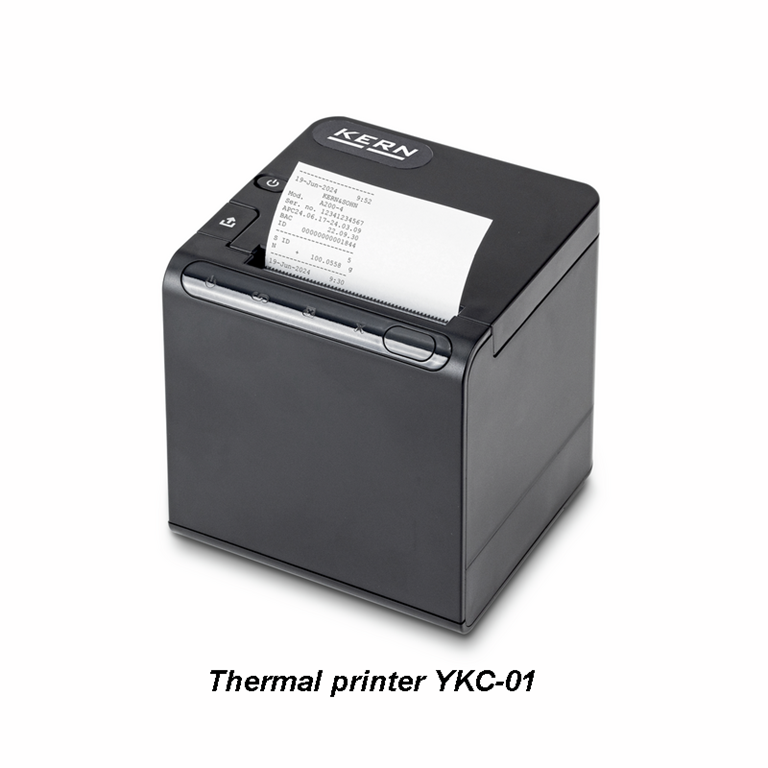

Both models include recipe weighing functions, dosage aids, and automatic data output to the PC/printer each time the balance is steady
ACS models
• Adjusting program CAL for quick setting of the balance accuracy using an external test weight
• Dosage aid: High stability mode and other filter settings can be selected
• Simple recipe weighing and documenting with a combined tare/print function. In addition, the ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight
• Automatic data output to the PC/printer each time the balance is steady
• Identification number: 4 digits, printed on calibration protocol freely programmable

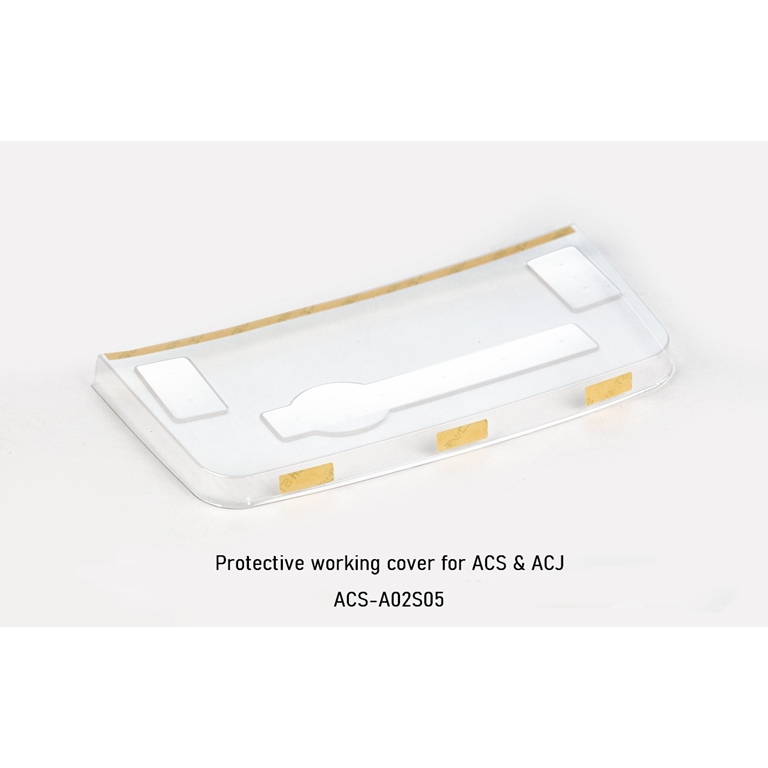

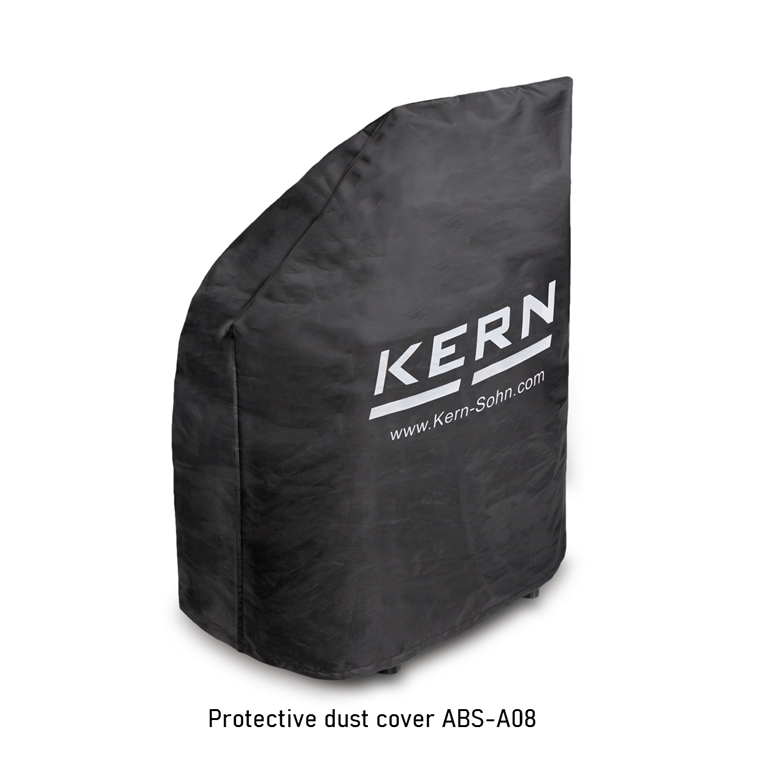

• Protective working cover included with delivery
ACJ models
• Automatic internal adjustment in the case of a change in temperature ≥ 2 °C or time controlled every 4 h, guarantees high degree of accuracy and makes the balance independent of its location of use
• Dosage aid: High stability mode and other filter settings can be selected
• Simple recipe weighing and documenting with a combined tare/print function. In addition, the ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight
• Automatic data output to the PC/printer each time the balance is steady
• Identification number: 4 digits, printed on calibration protocol freely programmable
• Protective working cover included with delivery
Kern ACS & ACJ Analytical Balances features -

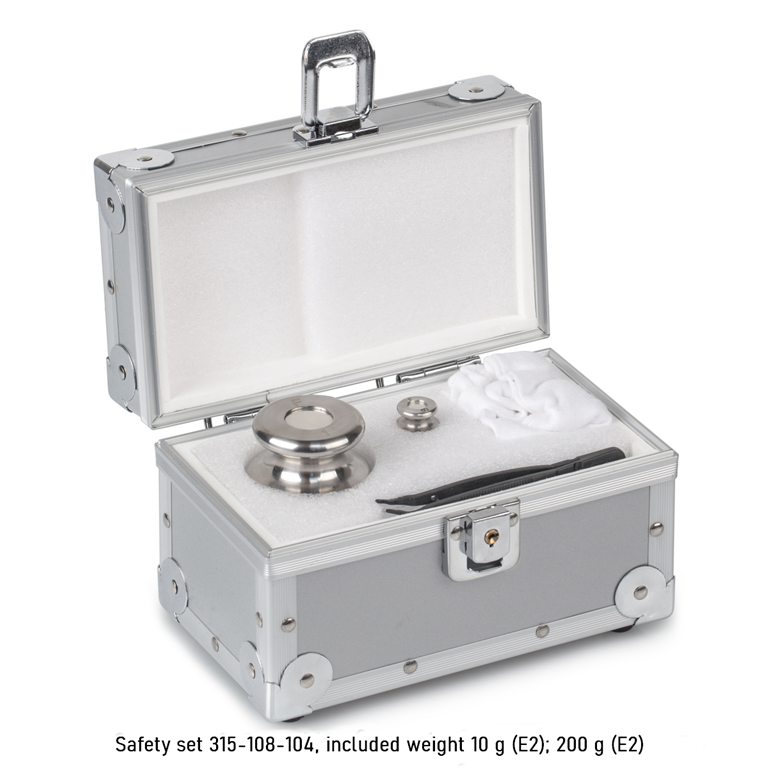

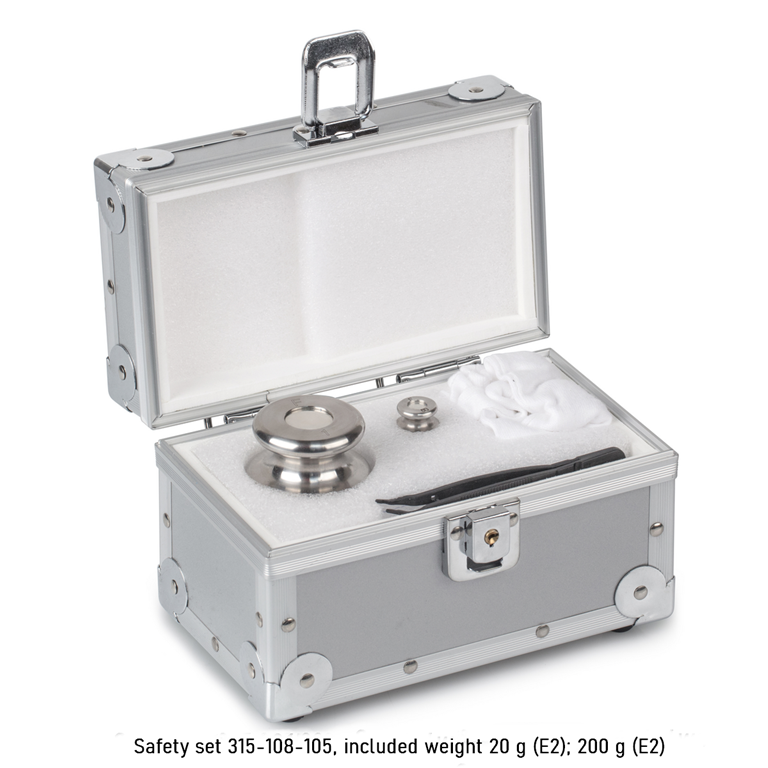

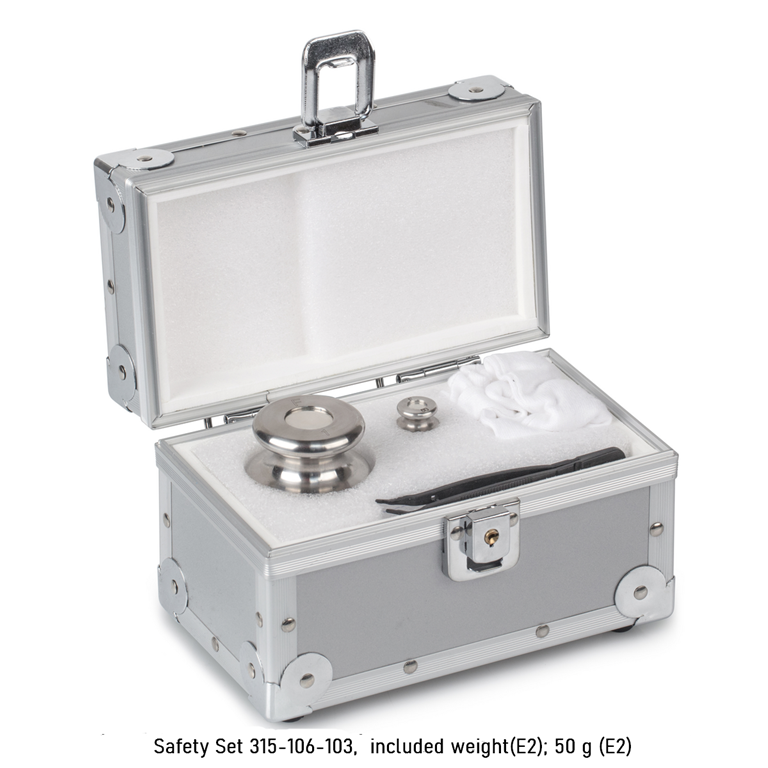

- Calibration: ACS – external using test weights (not supplied); ACJ – automatic internal adjustment
- Display: Large LCD with 14 mm digit height
- Stabilization Time: Approx. 3 seconds
- Recipe Function: Combined tare/print function with automatic ingredient numbering and documentation

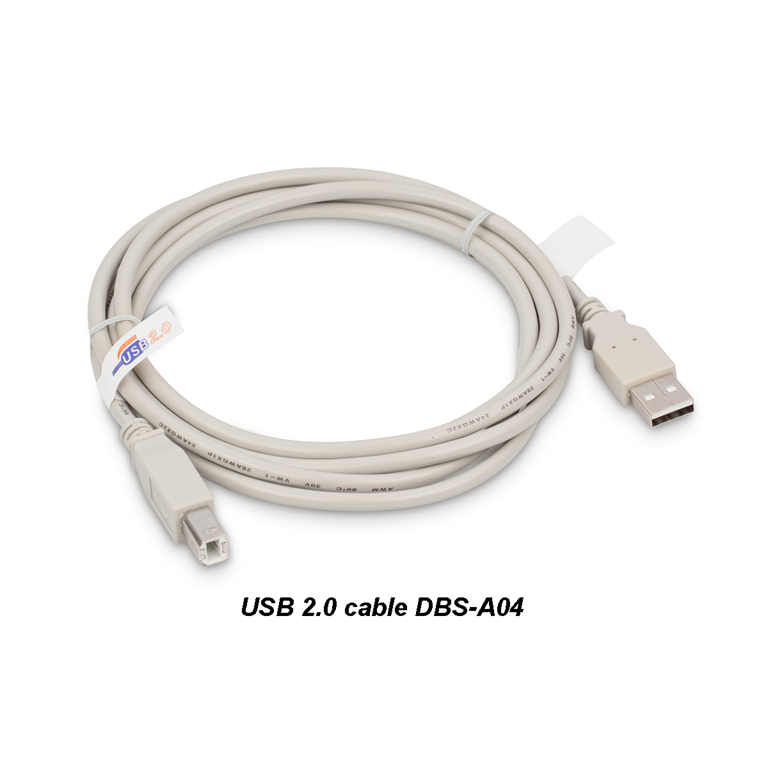

- Data Output: USB data interfaces and RS-232 for transferring weighing data, standard
- Construction: Housing: Cast aluminium and plastic. Ø 91 mm Stainless steel weighing plate
- Draft Shield: Material glass; Internal weighing space: 174 × 162 × 227 mm
- Protective working cover included with delivery
Model |
Capacity (g) |
Division (mg) |
Division (CE-M Approved) (g) | Linearity (mg) +/- | Repeatability (mg) | Pan Size (mm) |
|---|---|---|---|---|---|---|
| ACS 80-4 | 82 | 0.1 | x | 0.3 | 0.1 | ∅ 91 mm |
| ACS 100-4 | 120 | 0.1 | x | 0.3 | 0.1 | ∅ 91 mm |
| ACS 200-4 | 220 | 0.1 | x | 0.3 | 0.1 | ∅ 91 mm |
| ACS 300-4 | 320 | 0.1 | x | 0.3 | 0.1 | ∅ 91 mm |
| ACJ 80-4M | 82 | 0.1 | 1 | 0.3 | 0.1 | ∅ 91 mm |
| ACJ 100-4M | 120 | 0.01 | 1 | 0.3 | 0.1 | ∅ 91 mm |
| ACJ 200-4M | 220 | 00.1 | 1 | 0.3 | 0.1 | ∅ 91 mm |
| ACJ 300-4M | 320 | 00.1 | 1 | 0.3 | 0.1 | ∅ 91 mm |
- Why choose KERN Analytical Balances?
✔ Advanced Measuring Technology: Electromagnetic force compensation and premium mono-block weighing technology deliver top precision and repeatability.

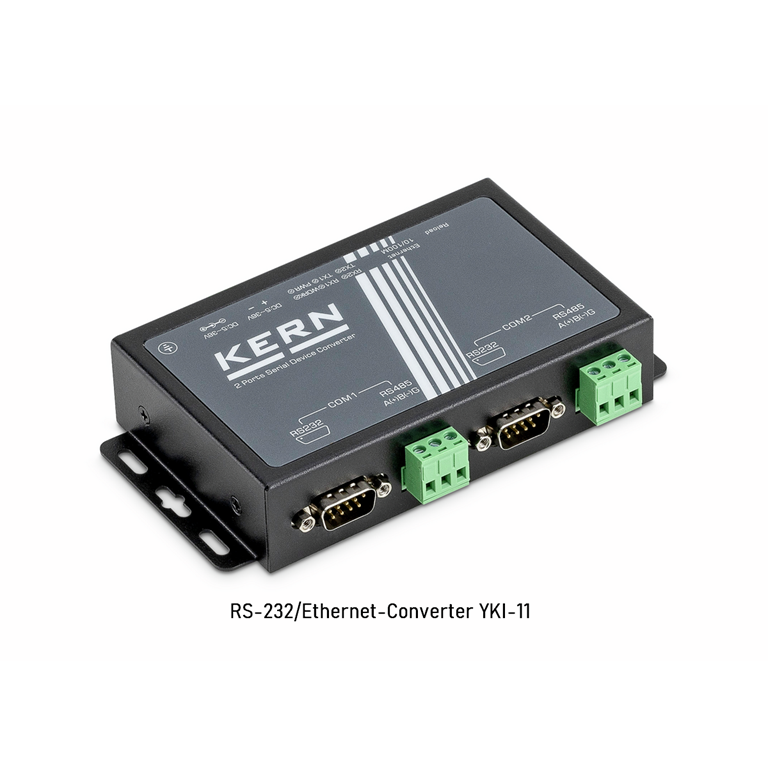

✔ Data Interfaces: Integrated RS-232 or USB ports enable direct transmission of measurement results to printers or PCs.
✔ Durable Design for Consistent Performance: High-quality materials and precise engineering ensure reliable operation and longevity, even with regular, intensive use in laboratory environments.
✔ Versatile Applications: Ideal for chemical laboratories, pharmaceutical research, material analysis, and environmental technology.
