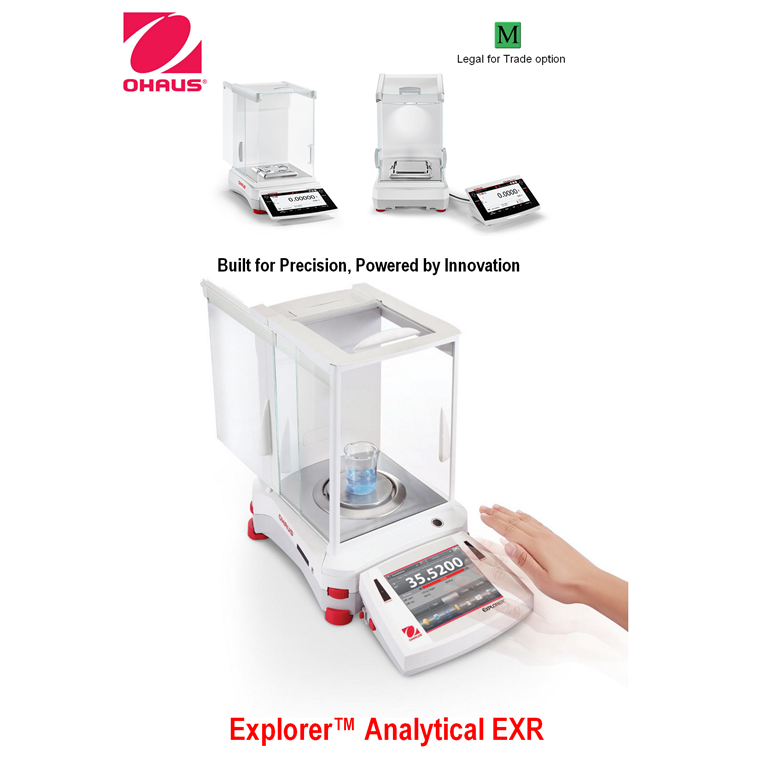

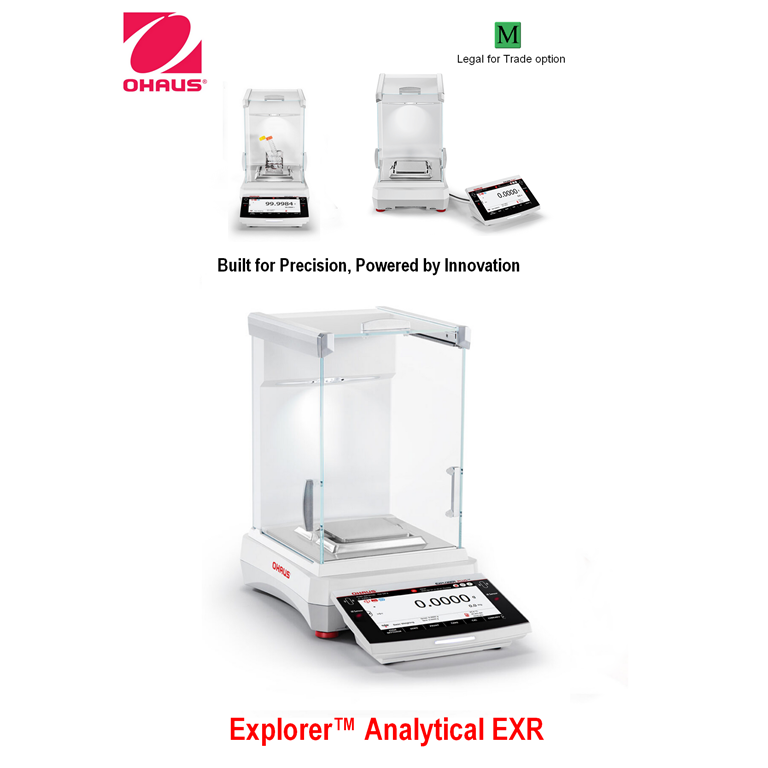

Ohaus Explorer EXR Analytical Balances
About the Ohaus Explorer EXR Analytical Balances
The new Ohaus Explorer EXR Analytical Balances offer an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The High Performance Weighing achieves consistent results with built-in automatic calibration, touchless sensors and a ventilated weighing pan. An intuitive 7-inch glass touchscreen, digital leveling, digital high-speed load cell and simplified data management is easy to use.
Communication Options - The EXR Supports HID connection to PC or keyboard without drivers, and provides 2-way communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data transfer.
Weighing Units - g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tcl, tola, baht, Custom 1, Custom 2
Trade Approved (Legal for Trade) models EXR124M, EXR224M, EXR324M.
Ohaus EXR Analytical features -
Applications

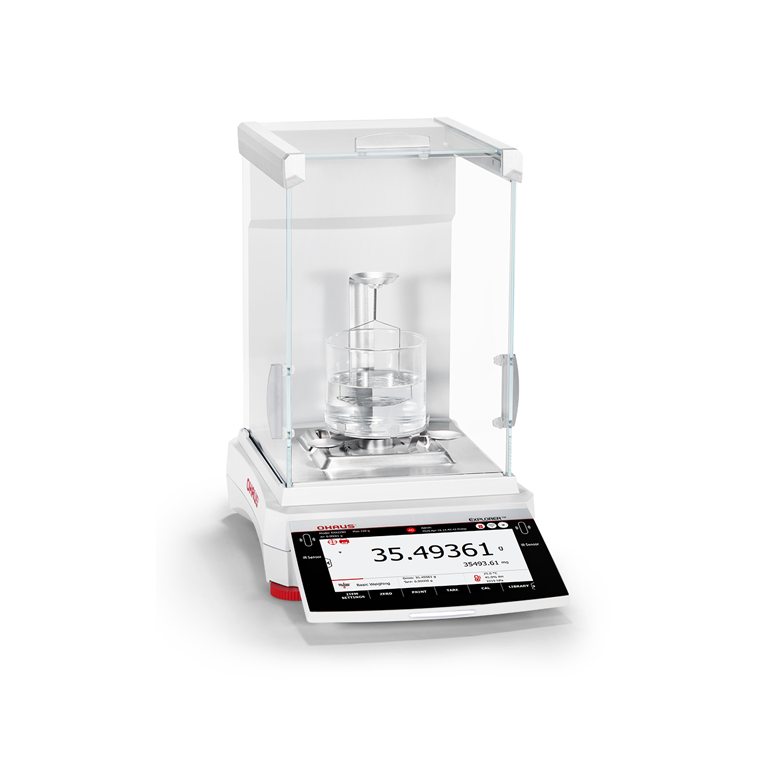

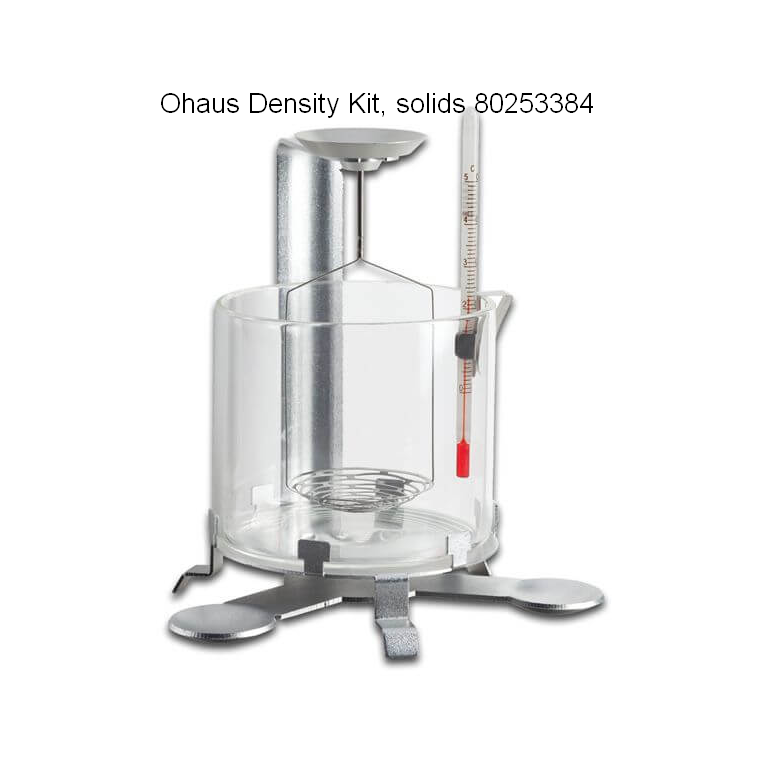

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
Display
7-inch TFT 16.7M Colour Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication

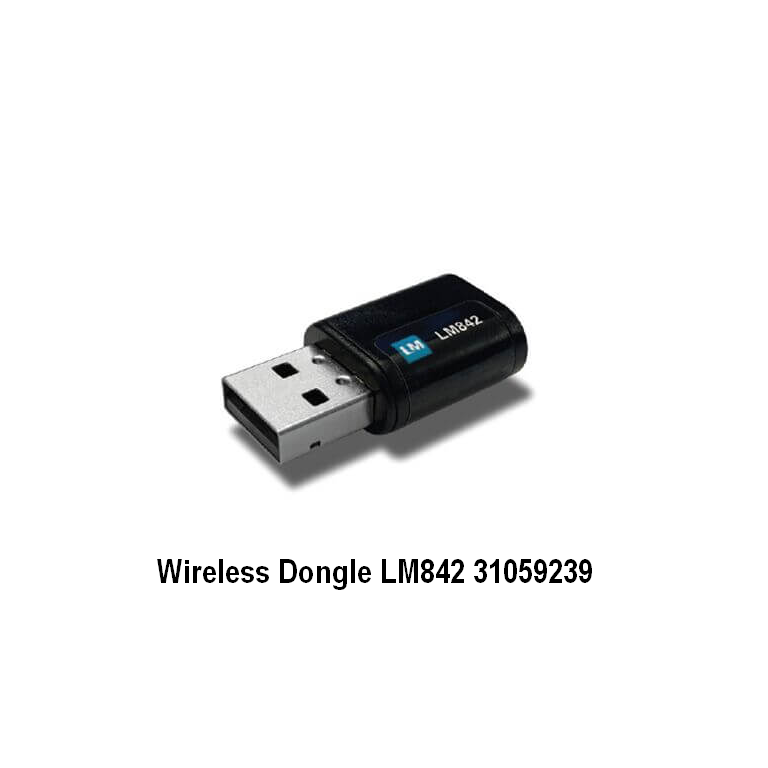

USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Metal housing, SST 316 weighing pan, Anti-static glass draft shield, 2 touchless sensors, Terminal status light
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries
Model |
Class | Capacity (g) |
Division (mg) |
Plate Size (mm) | Division (CE-M Approved) (mg) | Code |
|---|---|---|---|---|---|---|
| EXR124 | 1 | 120 | 0.1 | 90 x 90 | x | 31059125 |
| EXR224 | 1 | 220 | 0.1 | 90 x 90 | x | 31059126 |
| EXR324 | 1 | 320 | 0.1 | 90 x 90 | x | 31059127 |
| EXR124M | 1 | 120 | 0.1 | 90 x 90 | 1 | 31059136 |
| EXR224M | 1 | 220 | 0.1 | 90 x 90 | 1 | 31059137 |
| EXR324M | 1 | 320 | 0.1 | 90 x 90 | 1 | 31059138 |
