SysTec IT6000E Average Weight System

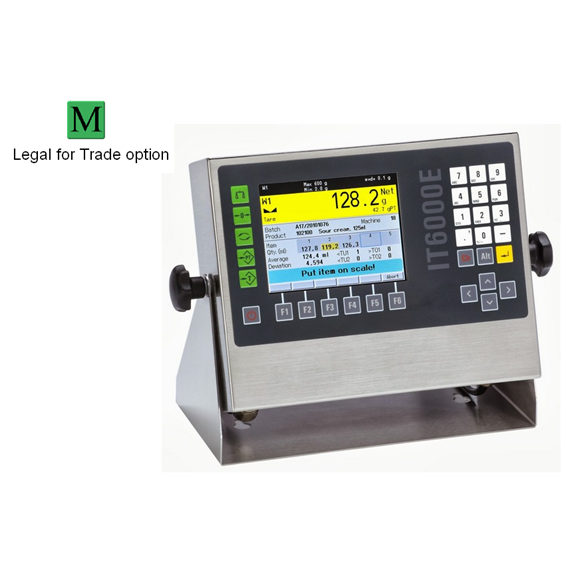

IT6000E SQC is an IP69 rated checkweighing terminal for the capture and evaluation of samples in compliance with the Regulations for Prepackaged Goods. Operator prompting with clearly structured on-screen menus ensures fast and error-free operation and minimum training requirements. Product file for up to 250 products with automatic allocation of permissible tolerances. Checkweighing results of samples and batch are indicated with colored marking on the TFT display. Ability to record data in the indicator memory and then upload it later to a USB drive or over the network to a host PC. Indicator compact stainless steel IP65 housing. System includes wet cover; SQC application for Average weight programme; USB socket; S Series SAX 300 x 300mm weigh platform (other sizes and capacities available). System can be Trade Approved to 3000 divisions (see chart below).
Choice of IP rated single cell all stainless weigh platforms. Platforms supplied with column which can be fitted on the short side of the platform. A top fixing bracket for a display terminal is available as an option. Full instructions for set up supplied with system. Touch screen indicator available as an option Call 01296 393133.
System can be Trade Approved
IT6000E S Series weigh platforms for Average Weight System
Platform Size (mm)
Trade Approved (g)
|SAX-3||300 x 300 x 110||3||1||0.5||67|
|SAX-6||300 x 300 x 110||6||2||1||67|
|SAX-15||300 x 300 x 110||15||5||2||67|
|SBX-6||400 x 300 x 130||6||2||0.5||67|
|SFX-30||500 x 400 x 130||30||10||2||69K|
|SLX-60||600 x 500 x 150||60||20||5||69K|
|SXLX-150||800 x 600 x 150||150||50||20||69K|
- C3 approved stainless steel load cell
- Heavy duty 'X' shaped construction
- Column mounted on short side
- 370mm circular column on the SAX and SBX models, 650mm box section colum on larger sizes (top bracket not included)
- SBX IP67 rating. SFX,SLX, SXLX IP69K rating
- SXLX size pallet delivery only
