Dini Argeo TSE15-HGX Stainless Bench Scale 230 x 330 x 90mm (15kg x 2g)
Was £1,285.00 (ex. VAT)
1,070.00
(1,284.00 Incl. VAT)
Save £215.00
Item in Stock
(0 review)
Indicators *
Accessories *
Add Oakleyweigh Calibration Certificate

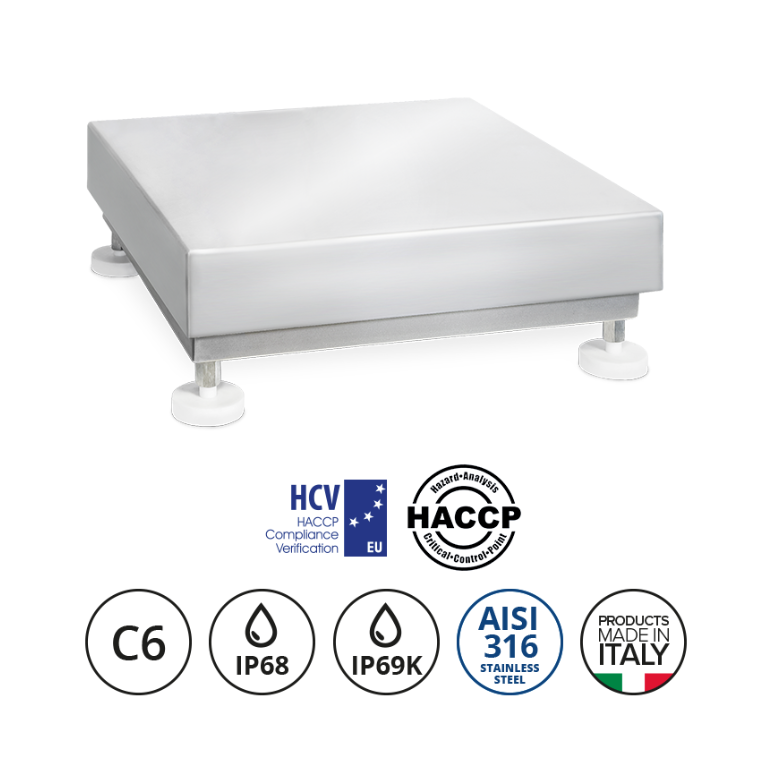

About the Dini Argeo TSE6-HGX Hygienx Stainless Bench Scales
The Dini Argeo Hygienx Bench Scales are HCV-EU certified products (C0553035-0001) for food environments compliant with the hygiene requirements of the HACCP standards. The TE HYGIENX platform is designed for use in wet environments and where very high HACCP-compliant standards are required.Ideal for food, chemical, pharmaceutical and cosmetics industries.
Featuring an AISI 316 Stainless Steel. Load cell in Stainless Steel. IP68 and IP69K protection rating. The platform is entirely washable to prevent the build-up of bacteria in the most critical spots.
The IP68 and IP69K rated load cell means that the entire scale can be sanitised with high-temperature and high-pressure jets of water.
- IP68/IP69K rating, suitable for use in humid environments and for complete scale sanitisation using high-temperature and high-pressure water jets.
- AISI 316 stainless steel structure designed to be opened for inspection with removable seals for easy sanitisation. Designed to prevent the accumulation of water and dirt residues.
- Integrated bubble level.
- Five limit switches for overload protection.
- Non-slip feet for environments with high hygienic requirements, ideal for use on stainless steel counters even in the presence of water.
- Weighing capacity 15kg x 2g.
- Dimensions 230 x 330 x 90mm.
Coice of two indicators -
DFWK-HGX 17-key indicator specifically for environments with high hygiene requirements. AISI 316 stainless steel housing, IP68/IP69K rating, backlit LCD display and internal rechargeable battery.
3590EGT-HGX 5.7" colour touchscreen indicator with AF01 program, specifically for environments with high hygiene requirements. Casing made of AISI 316 stainless steel with IP68/IP69K rating.
DFWK-HGX 17-key indicator specifically for environments with high hygiene requirements. AISI 316 stainless steel housing, IP68/IP69K rating, backlit LCD display and internal rechargeable battery.
3590EGT-HGX 5.7" colour touchscreen indicator with AF01 program, specifically for environments with high hygiene requirements. Casing made of AISI 316 stainless steel with IP68/IP69K rating.
Dini Argeo Hygienx Stainless Bench Scale features -
Scale weigh base -
- Tubular structure, mechanical parts, small parts and loading surface made of AISI 316 stainless steel.
- Platform with continuous welding throughout.

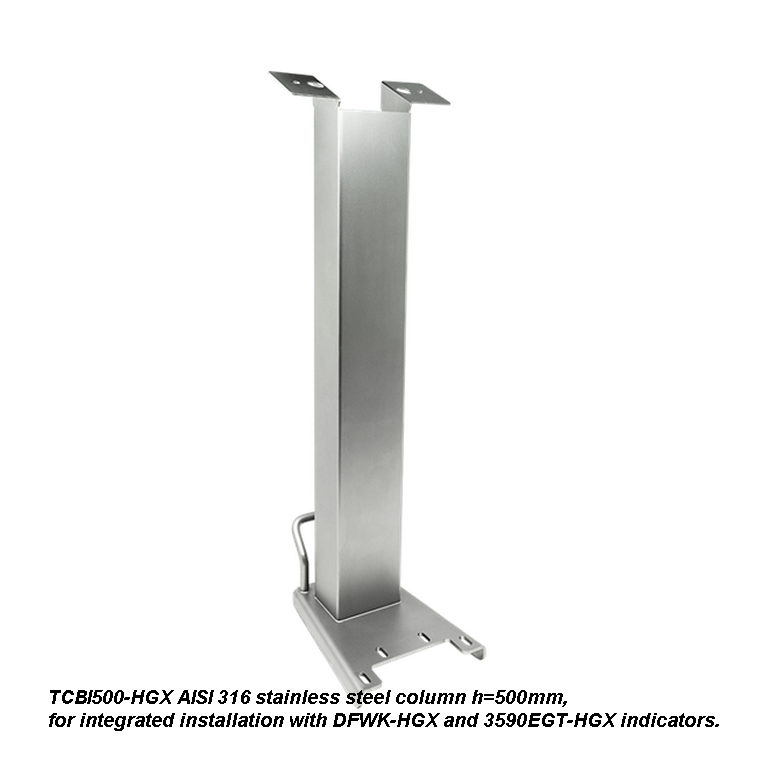

- Hermetically sealed stainless steel load cell with IP68/IP69K rating, suitable for use in wet environments. OIML R60 approved C6 class, with a 3-metre-long shielded cable. Note: The cable length is reduced to just 1 metre in combination with TCBI500-HGX column.
- Direct connection of the load cell to the weight indicator, without connectors using a cable gland.
- Sensitivity: 2mV/V +/- 10%.
- Max. power supply: 15 Vdc.
- Surface finish for food environments.
- HCV laser marking for product identification.
- HCVHCV-EU certified loading surface for use in direct contact with food.

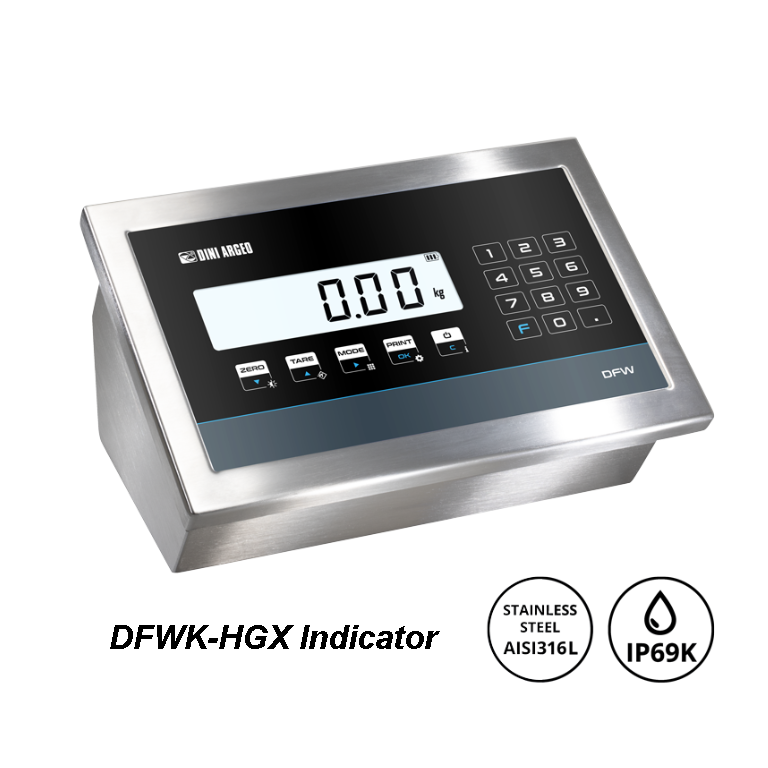

DFWK-HGX indicator - - Waterproof 17-key numeric-functional keypad
- Backlit 25 mm LCD display with 6 high-contrast digits, with icons for indicating active functions
- AISI 316 stainless steel enclosure
- IP68 and IP69K certification against water, dust and high-pressure hot water jets
- Dimensions: 280x143x185 mm
- 24 bit A/D converter, 4 channels max. 200 conv./sec. Autoselect and up to 8 signal linearization points
- Max 10,000e or multi-field 3 x 3000e @ 0.3 µV/e in CE-M approved version for legal for trade systems
- Max 1,000,000 displayable divisions for internal factory use with internal resolution up to 3,000,000 points
- Connection to max. 8 load cells with 350 Ohm input resistance or max. 16 cells with 700 Ohm input resistance
- Digital calibration and set-up from keyboard or PC with DINITOOLS
- Internal rechargeable battery with autonomy up to 60 hours
- 110-240 Vac power supply via 1.5 m cable with Shuko plug

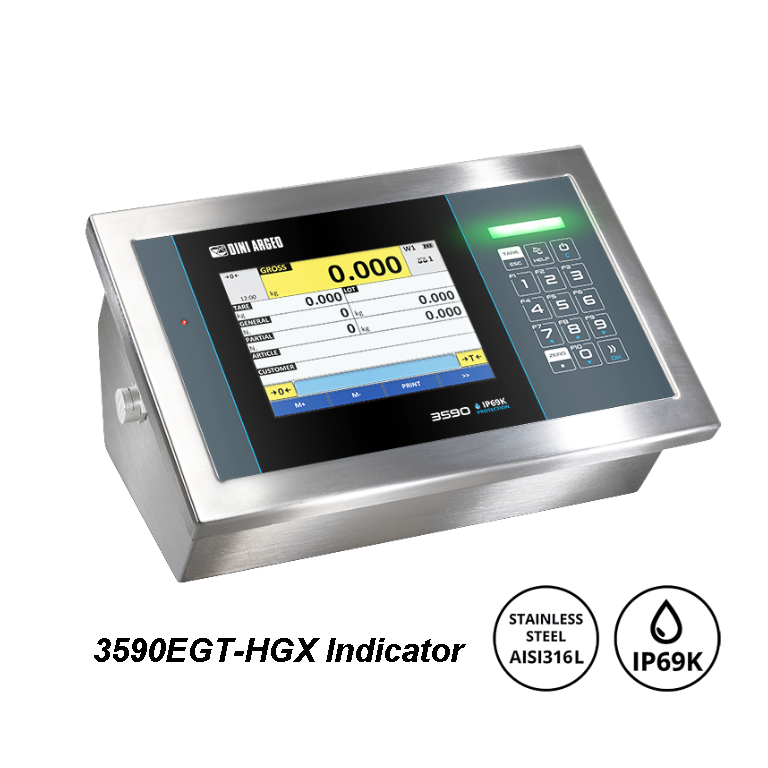

3590EGT-HGX indicator -
- Touchscreen backlit graphic display , dimensions lxh= 120x90 mm.
- Multilanguage software.
- Waterproof alphanumeric keyboard with 15 keys.
- Traffic light with 3 colours.
- Touchscreen keyboard type QWERTY, AZERTY or QWERTZ, selectable.
- AISI 316 stainless steel case.
- IP68/IP69K certification against water, dust and high pressure hot water jets.
- Dimensions: 280x143x185 mm.
- Suitable for use on a table, column or wall.
- Calendar clock and permanent data memory.
- Alibi Memory as standard, integrated on the motherboard.
- Internal micro SD slot (optional) for saving logos.
