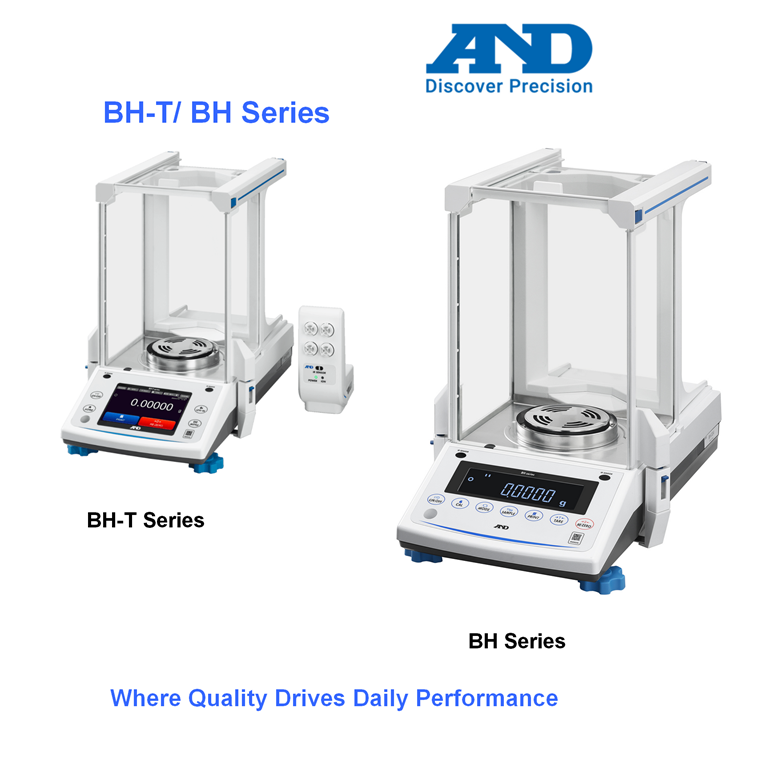

A&D BH / BH-T Semi-Micro/Analytical Balances
About the A&D BH-T / BH Semi-Micro/Analytical Balances
Exciting new Premium-Level BH-T and BH Semi-Micro/Analytical Balances from A&DBH-T models feature a 5-inch WVGA, TFT LCD colour touch screen.
The colour touch screen enables intuitive operations without often having to refer to an instruction manual, while making it easy to enter numbers, change settings, etc. It employs a pressure sensor and responds to pressure, so users can operate it even if they are wearing thick gloves. Four frequently used keys, namely ON:OFF, HOME, LOG-IN and MENU are provided as physical keys to allow quick access.
BH models feature a Reverse backlit LCD display.
The contrast of the black and white display provides excellent visibility even in poorly-lit areas. It prevents fatigue of users' eyes and makes long hours of work less tiresome.
Automatic opening/closing of the breeze break doors using non-contact IR sensors. Each glass pane of the breeze break (including the rear glass) can be easily separated for thorough cleaning/disinfection thanks to the unique clip system.The side doors of the breeze break can be opened/closed using either the IR sensors on the display unit or an optional foot switch, allowing smooth, efficient access to the weighing chamber. The sensitivity of the IR sensors is adjustable to three levels (users may want to lower the sensitivity to reduce unwanted operation, for example). For the BH-T series, the IR sensors can also be used for the RE-ZERO or PRINT
Multiple languages.
For users with various backgrounds, the display can be set to English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Korean, Chinese, or Japanese.
Multiple units of measure
It is easy to select from and switch between mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), and % (percent mode). Either tael (Singapore/HK jewellery/Taiwan) or tola can be added upon request.
A&D BH / BH-T Semi-Micro/Analytical Balances features =
Touchscreen models: BH-225TE, BH-225DTE, BH-224TE, BH-324TE
- Touch screen and user navigation
- Multiple languages
- Smart routine check (SRC)
- Formulation mode
- HPLC mode
- Daily/periodic balance check support
- Advanced user access control
- History information
- GLP custom output mode
- Label output mode
Reverse backlit LCD models: BH-225, BH-225D, BH-124, BH-224, BH-324
- Automatic opening/closing of the breeze break doors
- IR sensors
- Engineered design for quick and effortless balance cleaning
- Minimising the impact of drafts and convection flows
- Automatic self-sensitivity adjustment
- Quick on-site performance test
- Impact shock detection (ISD)

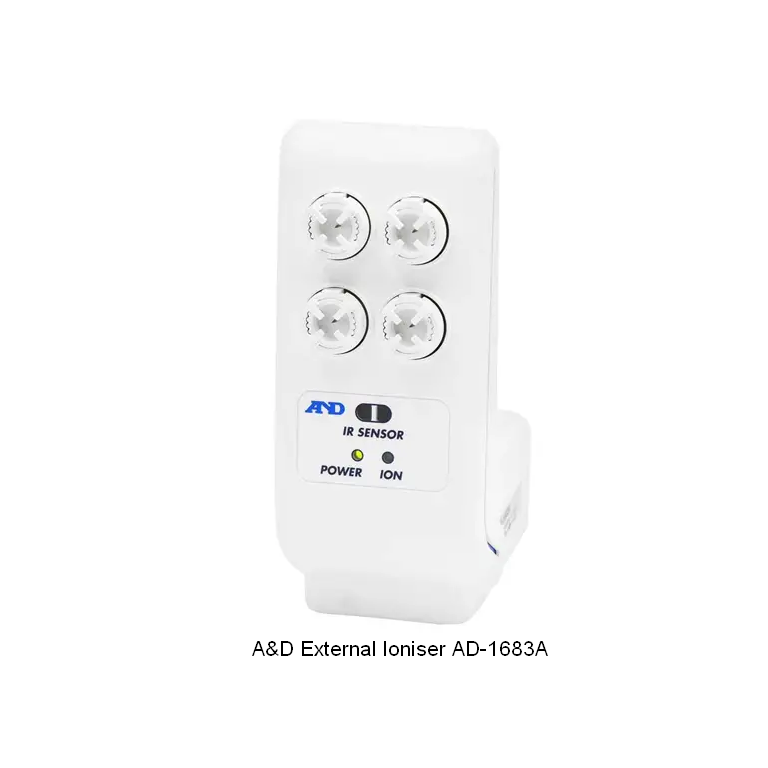

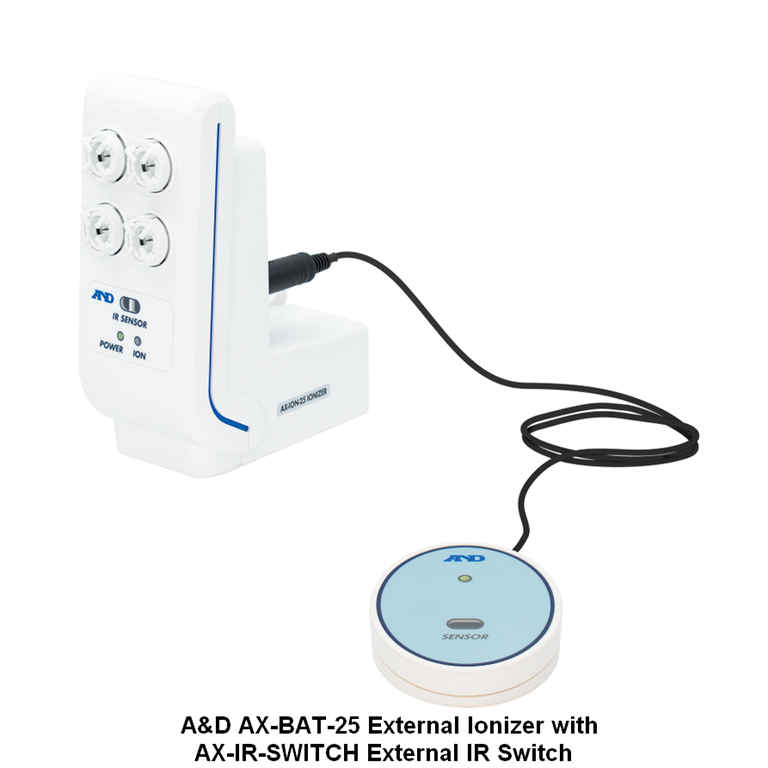

- External ioniser for instant static elimination (optional)

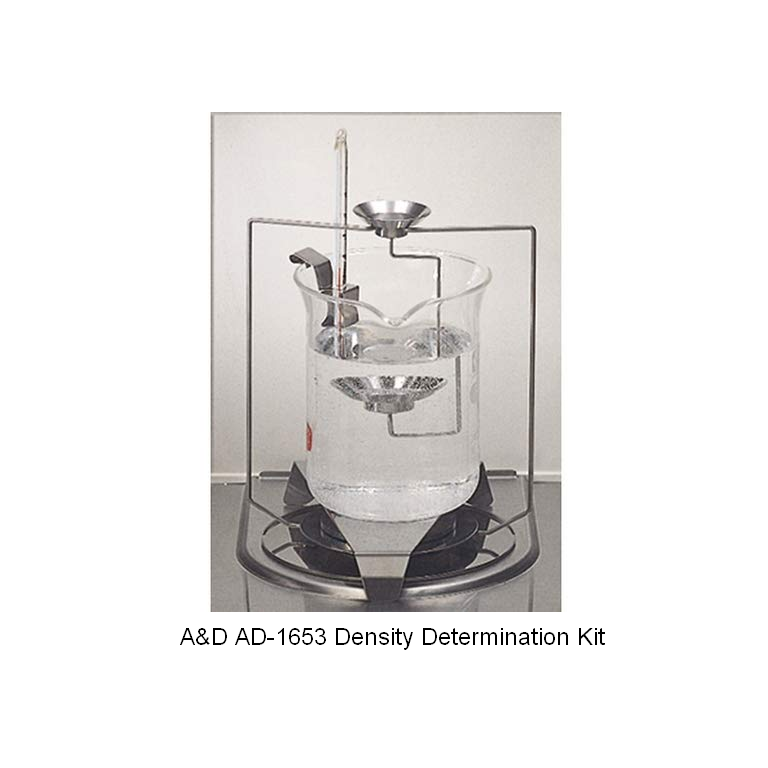

- Density measurement mode
- Minimum weight setting and alert.
Model |
Capacity (g) |
Division (mg) |
Plate Size (Ø mm) | Linearity (mg) +/- | Repeatability (mg) |
|---|---|---|---|---|---|
| BH-225TE | 220 | 0.01 | 90 | 0.10 | 0.015 for 50g 0.03 for 200g |
| BH-225DTE | 51 | 0.01 | 90 | 0.2 | 0.025 for 50g 0.1 for 200g |
| BH-224TE | 220 | 0.1 | 90 | 0.2 | 0.09 |
| BH324TE | 320 | 0.1 | 90 | 0.2 | 0.1 |
| BH-225 | 220 | 0.01 | 90 | 0.10 | 0.015 for 50g 0.03 for 200g |
| BH-225D | 220 | 0.1 | 90 | 0.2 | 0.025 for 50g 0.1 for 200g |
| BH-124 | 120 | 0.1 | 90 | 0.2 | 0.09 |
| BH-224 | 220 | 0.1 | 90 | 0.2 | 0.09 |
| BH-324 | 320 | 0.1 | 90 | 0.2 | 0.01 |
