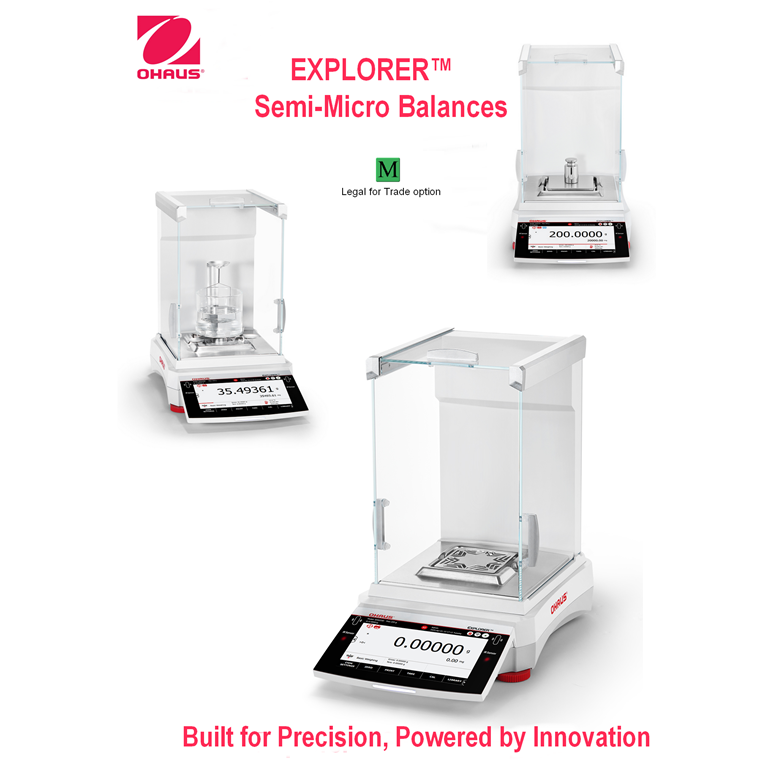

Ohaus Explorer EXR Semi-Micro Balances
About the Ohaus Explorer EXR Semi-Micro Balances

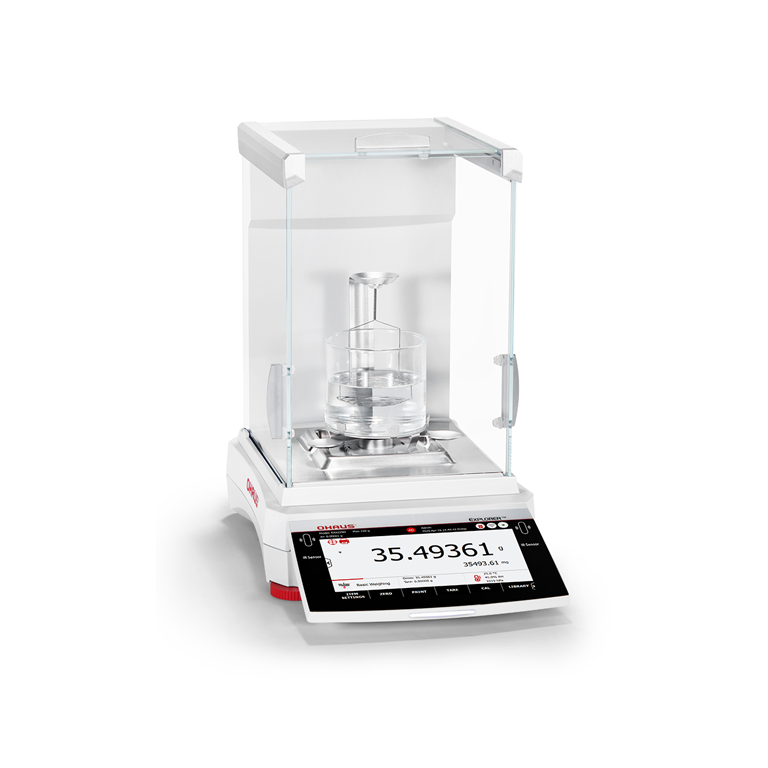

The new Ohaus Explorer EXR Semi-Micro Balances offer an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The High Performance Weighing achieves consistent results with built-in automatic calibration, touchless sensors and a ventilated weighing pan. An intuitive 7-inch glass touchscreen, digital leveling, digital high-speed load cell and simplified data management is easy to use.
Communication Options - The EXR Supports HID connection to PC or keyboard without drivers, and provides 2-way communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data transfer.
Weighing Units - g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tcl, tola, baht, Custom 1, Custom 2
Trade Approved (Legal for Trade) models EXR125M, EXR225M.

Ohaus EXR Semi-Micro features -
Applications

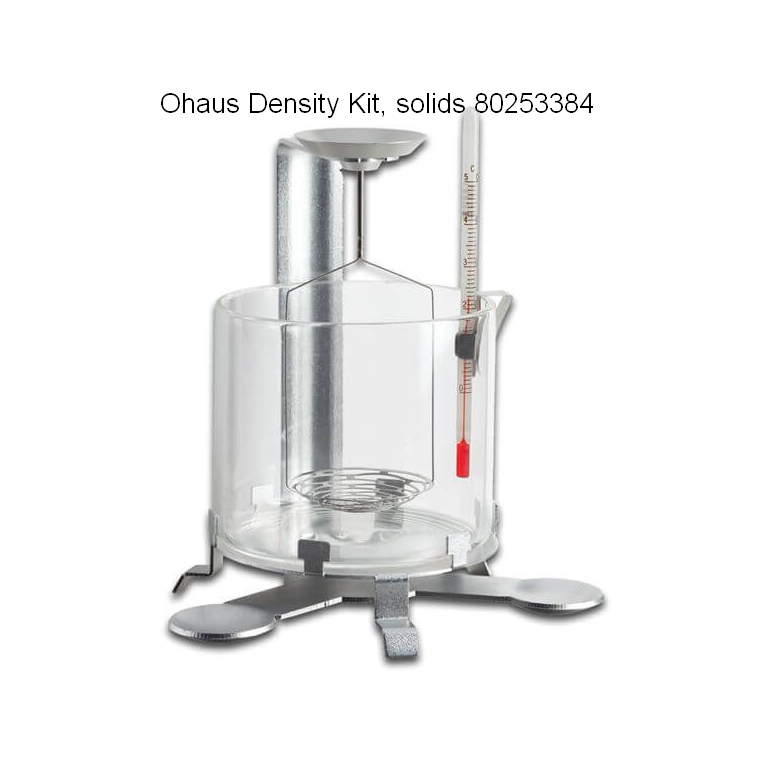

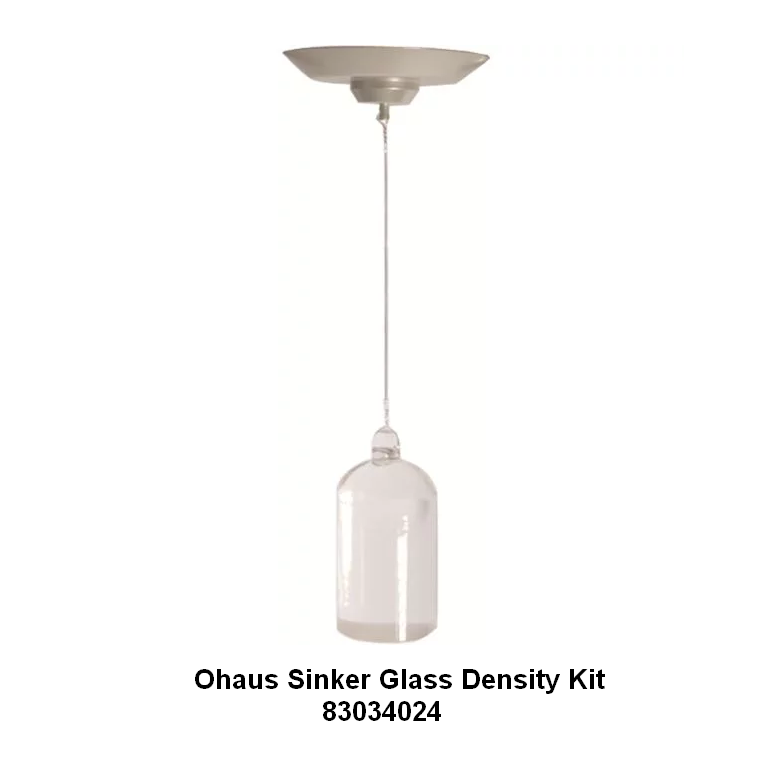

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
Display
7-inch TFT 16.7M Colour Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication

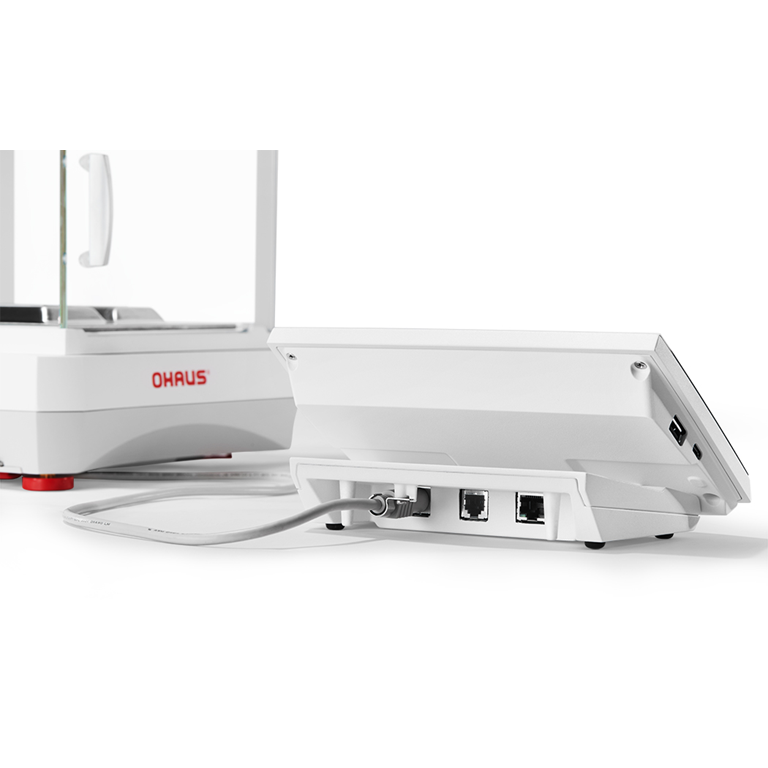

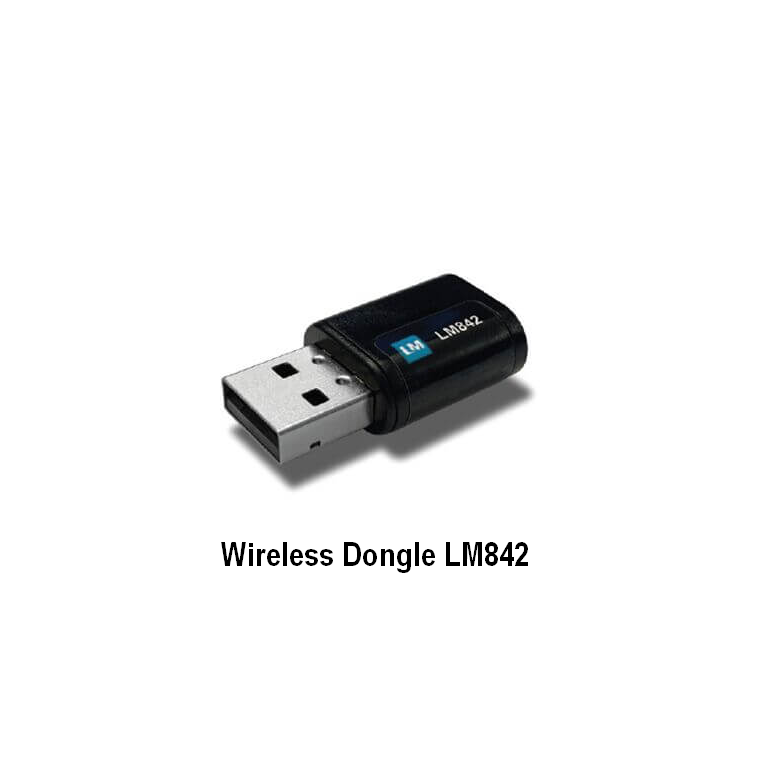

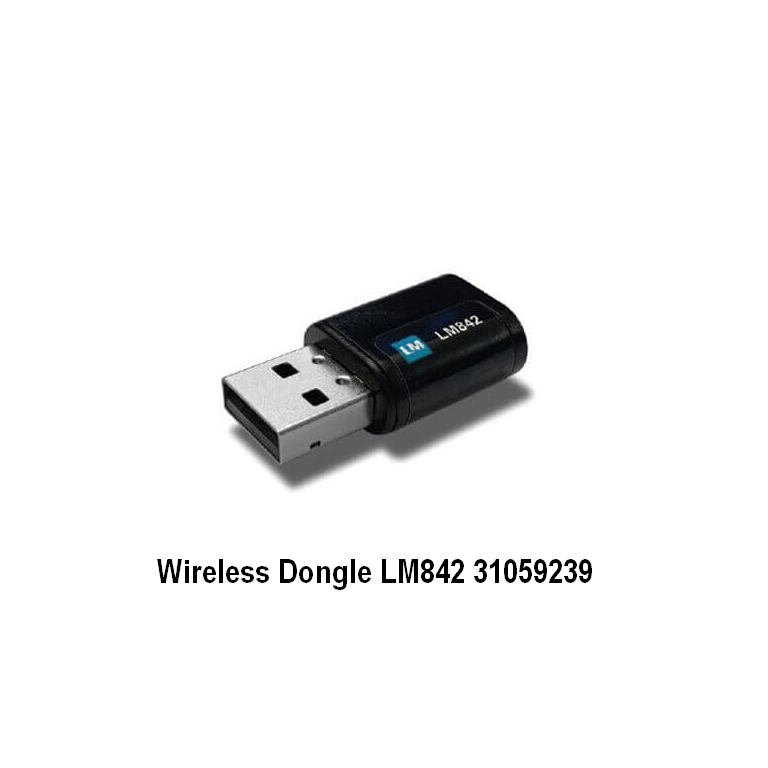

USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Metal housing, Zinc alloy aero weighing pan, Anti-static glass draft shield, 2 touchless sensors, Terminal status light
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries
Model |
Class | Capacity (g) |
Division (mg) |
Plate Size (mm) | Division (CE-M Approved) (mg) | Code |
---|---|---|---|---|---|---|
EXR125 | 1 | 125 | 0.01 | 80 x 80 | x | 31059122 |
EXR125D | 1 | 82/120 | 0.01/0.1 | 80 x 80 | x | 31059121 |
EXR125DM | 1 | 82/120 | 0.01/0.1 | 80 x 80 | x | 31059132 |
EXR125M | 1 | 120 | 0.01 | 80 x 80 | 1 | 31059133 |
EXR225 | 1 | 220 | 0.01 | 80 x 80 | x | 31059124 |
EXR225D | 1 | 120/220 | 0.01/0.1 | 80 x 80 | x | 31059123 |
EXR225DM | 1 | 120/220 | 0.01/0.1 | 80 x 80 | x | 31059134 |
EXR225M | 1 | 220 | 0.01 | 80 x 80 | 1 | 31059135 |
