Kern KERN DAB 100-3IR Moisture Analyser

1,485.00

(1,782.00 Incl. VAT)

Item in Stock

(0 review)

Accessories

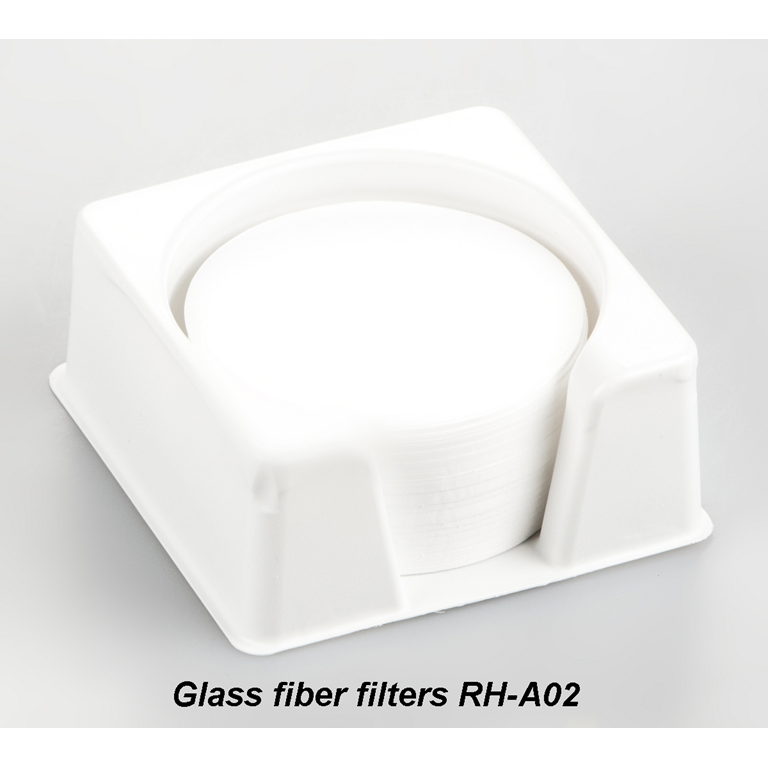

Kern Glass fiber filters RH-A02 +£71.00 (+£85.20 Incl. VAT)

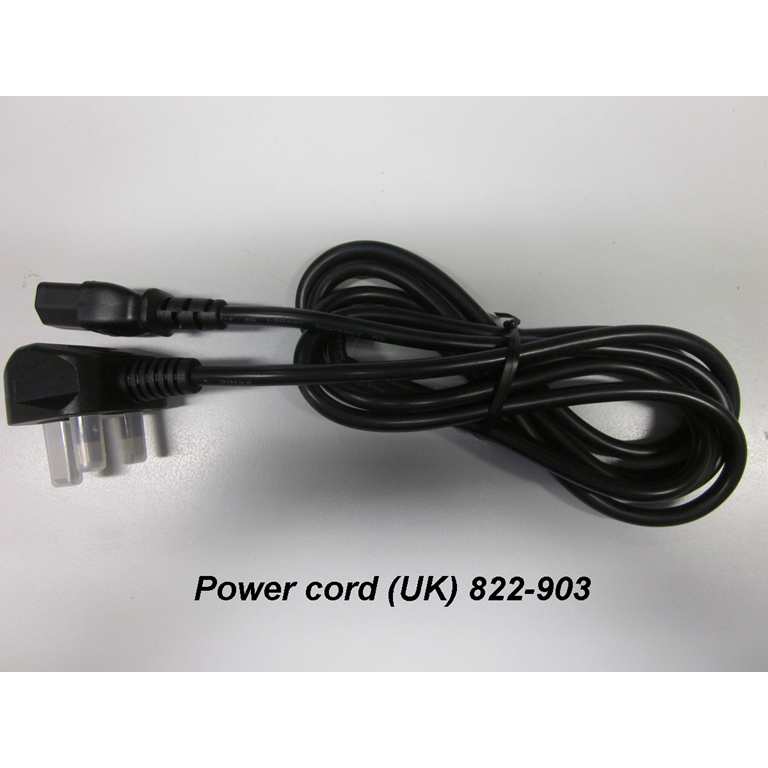

Kern Power cord 822-903 +£35.00 (+£42.00 Incl. VAT)

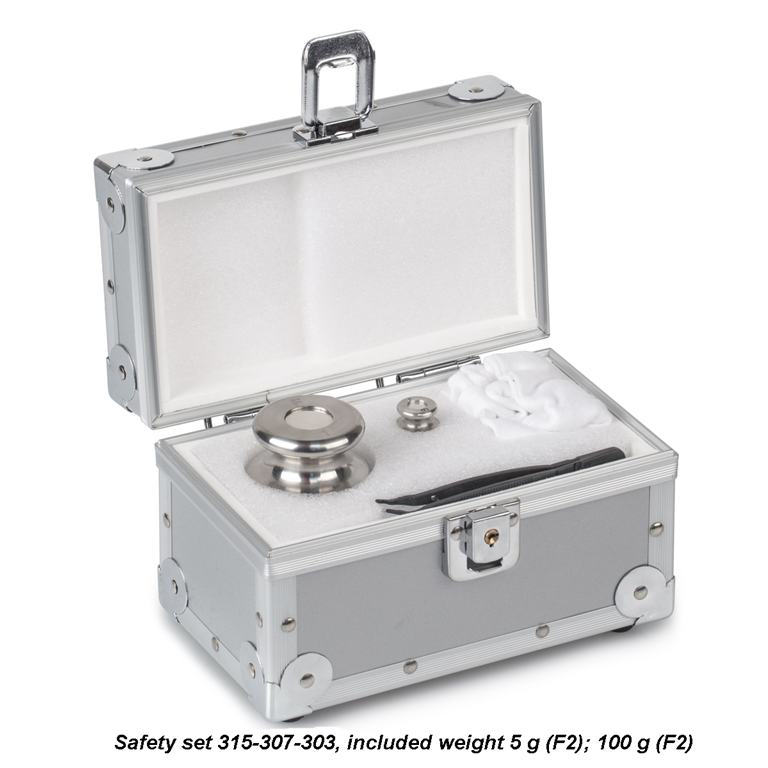

Kern Safety set 315-307-303 5 g (F2); 100 g (F2) DAB 100-3 +£150.00 (+£180.00 Incl. VAT)

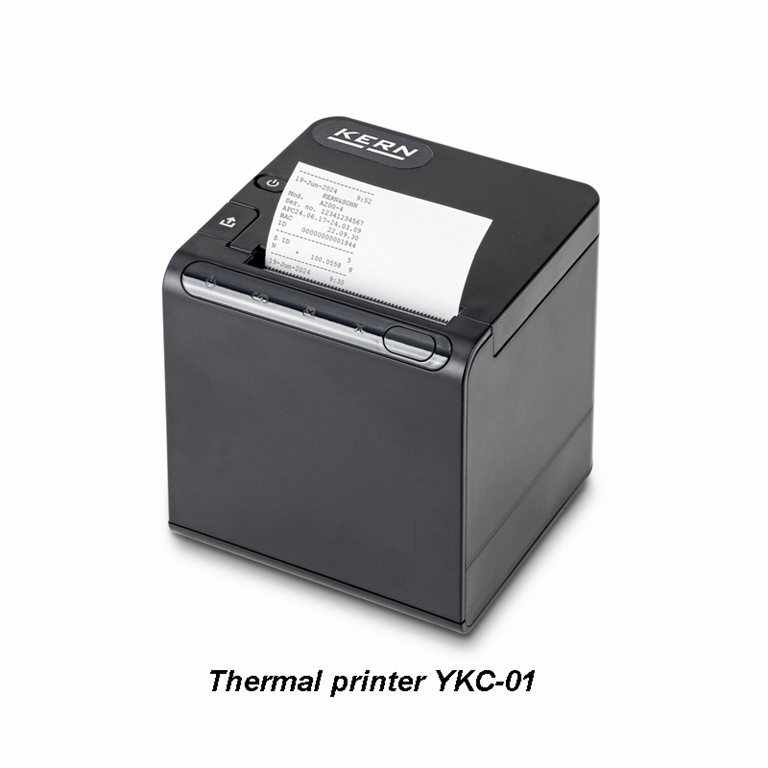

Kern Thermal printer YKC-01 +£279.00 (+£334.80 Incl. VAT)

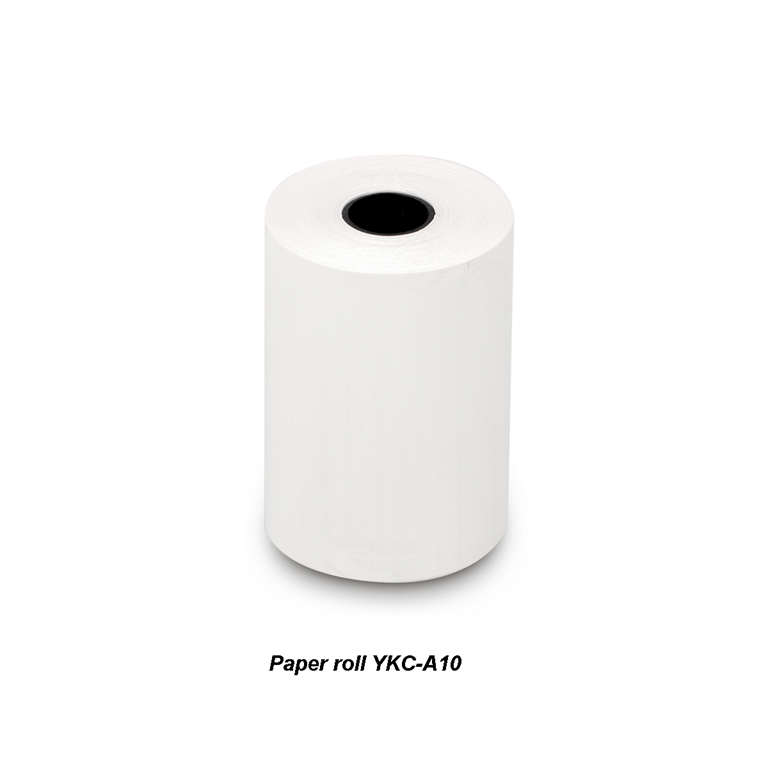

Kern paper rolls YKC-A10 (10) +£45.00 (+£54.00 Incl. VAT)

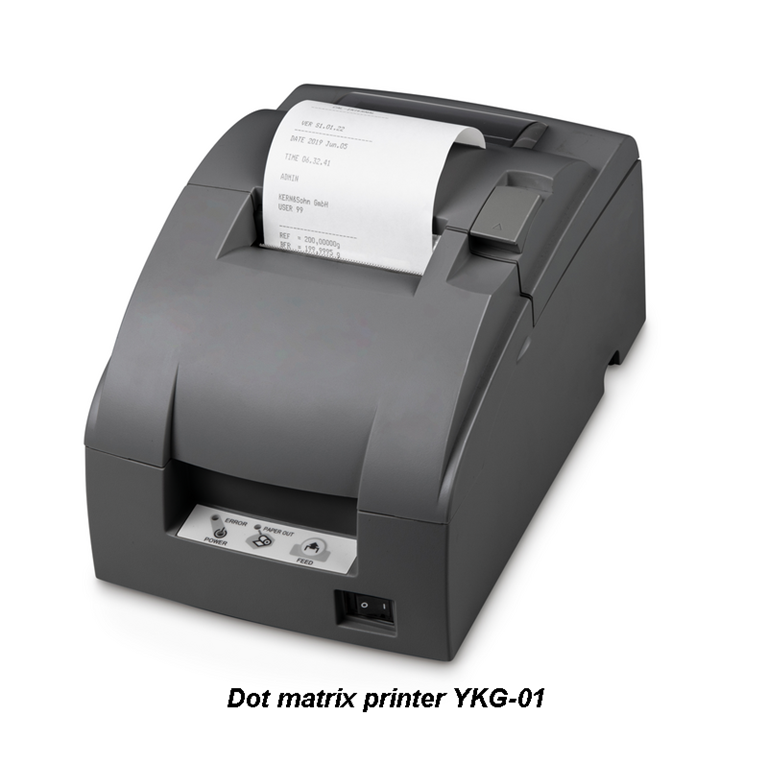

Kern Dot Matrix Printer YKG-01 +£530.00 (+£636.00 Incl. VAT)

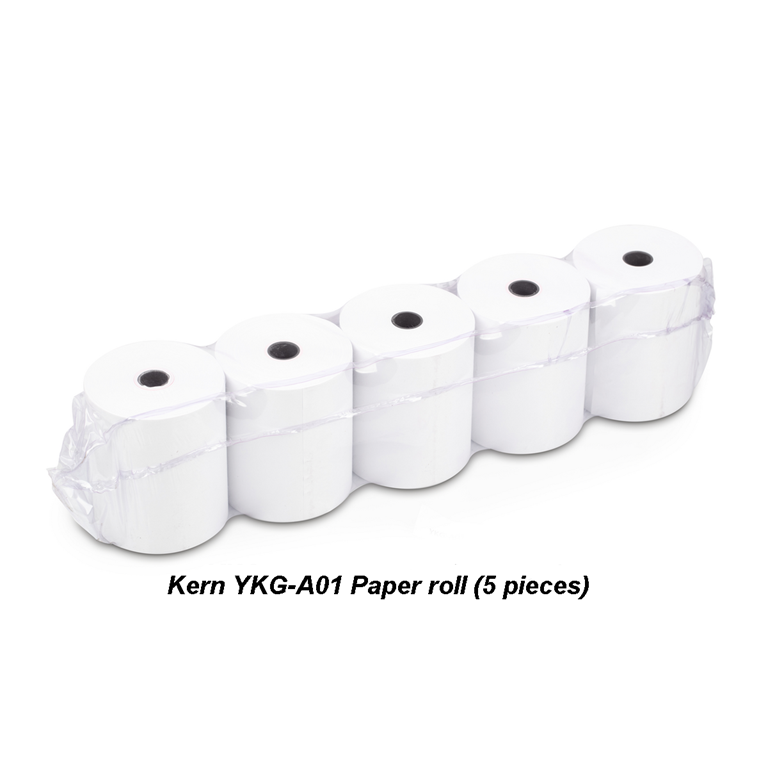

Kern Paper rolls YKG-A01 (5) +£27.00 (+£32.40 Incl. VAT)

DAkkS Calibration Certificate (Mass)

DAkkS Calibration Certificate ≤ 5kg (only if ordered with scale) +£95.00 (+£114.00 Incl. VAT)

DAkkS Calibration Certificate (Temperature)

1 x Kern Factory Calibration Certificate 964-305 (Temperature) +£156.00 (+£187.20 Incl. VAT)

Quantity

About the Kern DAB 100-3IR Moisture Analyser

Particularly user-friendly moisture analyser with high-quality infrared quartz glass heater,

Backlit graphic display, digit height 14 mm
[[1]] Active drying process
[[2]] Active heating profile
[[3]] Active switch-off criteria
[[4]] Previous drying time
[[5]] Current temperature
[[6]] Current moisture content in %
Infrared heater 400 W
Suitable for temperature-insensitive samples
Observation window above the sample, useful during initial setting
Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out
The last value measured remains on the display until it is replaced by a new measurement

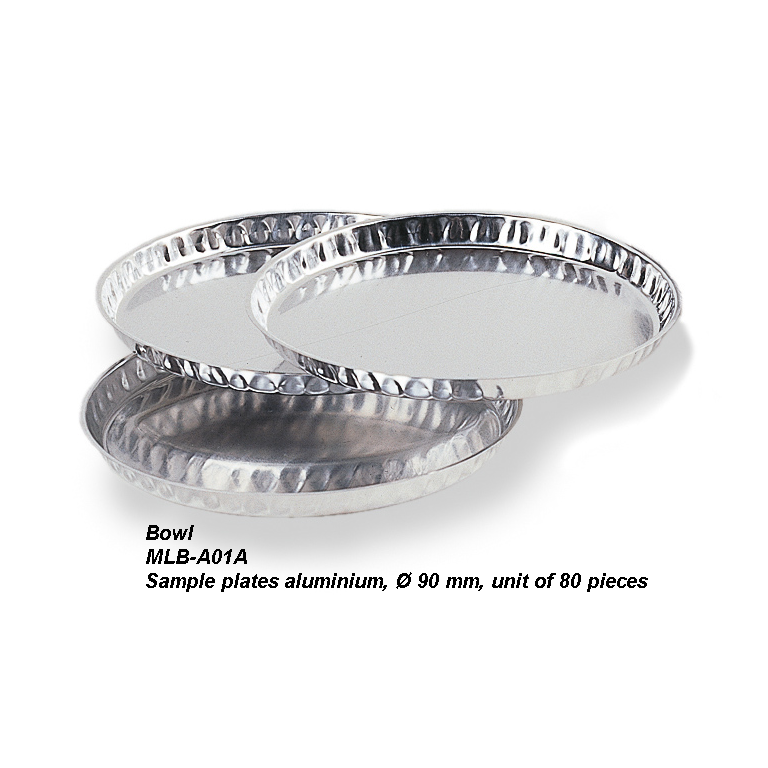

50 sample plates included
Application handbook: In the download centre you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

Choice of Certificates of Calibration a) Oakleyweigh ISO Certificate b) DAkkS Certificate.
Option DAkkS Calibration Certificate | Mass 963-127
Option Factory Calibration Certificate | Temperature 964-305

Kern KERN DAB 100-3IR Moisture Analyser Technical Data

Weighing capacity [Max] 110 g
Readability [d] 0,001 g
Weighing system Strain gauge
Sample – Moisture content 20% - 100%
Sample – Dry content 100% - 20%
Temperature [Min] (°C) 40 °C
Temperature [Max] (°C) 160 °C
Stabilization time 3 s
Units g, % Humidity, % Dry mass
Reproducibility 0,001 g
Linearity ± 0,003 g
Readability moisture [d] (%) 0,01%
Drying modes Standard drying, Rapid drying, Gentle drying
Switch-off criteria time controlled, automatic, manual
Input voltage device / power [Max] 230 V AC, 50 Hz
GTIN/EAN number 4045761226319

How does a moisture analyzer work?

A Moisture Analyser (also known as Moisture Balances) determines the amount of moisture in a product. This moisture content is directly responsible for the effective life and quality of the product being analysed.

The Moisture Analyser weighs a sample of the product, heats it up and once it is dry, weighs it again. This weight after drying is subtracted from the first weight. The result indicates the loss of moisture as a loss of mass.
