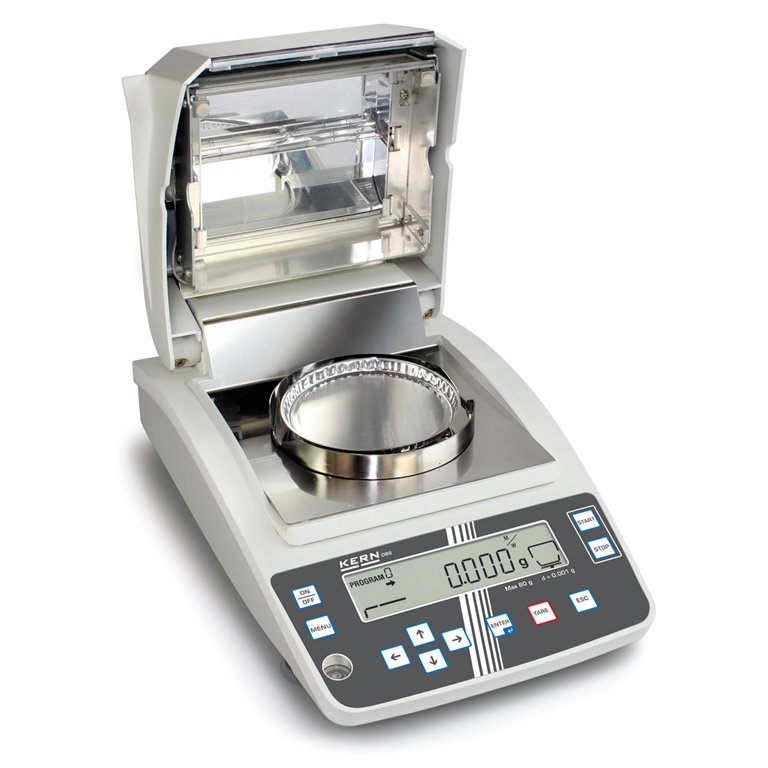

Kern KERN DBS 60-3:Moisture Analyser

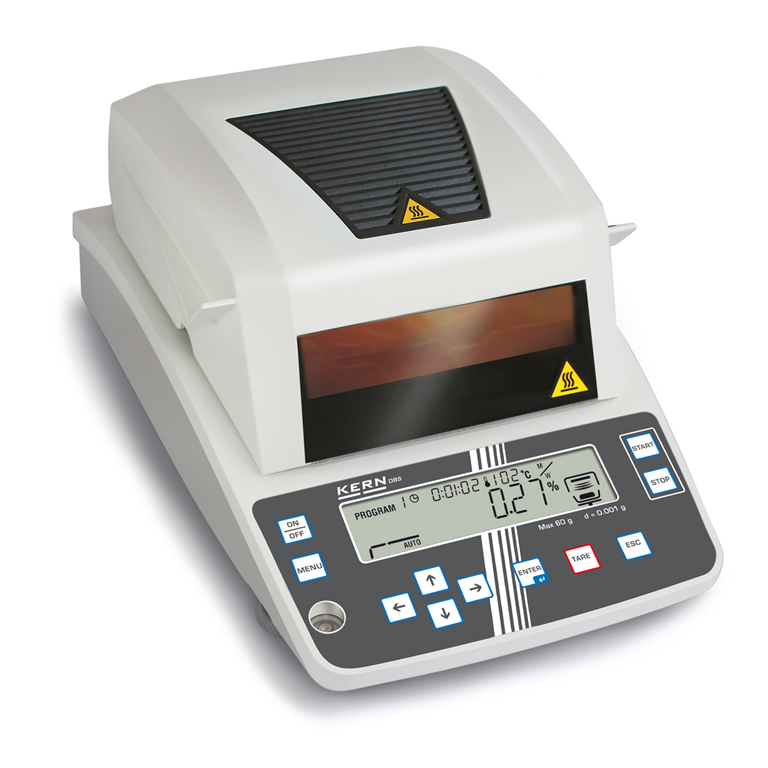

About the Kern DBS 60-3 Moisture Analyser

Moisture analyser with high-quality single-cell weighing system for outstanding stability, reliability and response speed. Suitable for samples with low moisture content, e.g. plastics.

• Backlit graphic display, digit height 15 mm
  [[1]] Active drying process
  [[2]] Previous drying time
  [[3]] Current temperature
  [[4]] Unit for displaying the results
  [[5]] Current moisture content in %
  [[6]] Active heating profile
• 400 W halogen-quartz glass heater
• Excellent temperature control thanks to halogen technology, suitable for temperature-sensitive samples
• Internal memory for automatic sequence of 10 complete drying processes and 100 drying processes carried out
• The last value measured remains on the display until it is replaced by a new measurement
• Password protection to prevent manipulation of stored settings, data, etc.
• Sample description for up to 99 samples, freely programmable, and is printed in the measuring protocol
• Date and time display as standard
• USB data interface for transferring weighing data to the PC, printer etc.

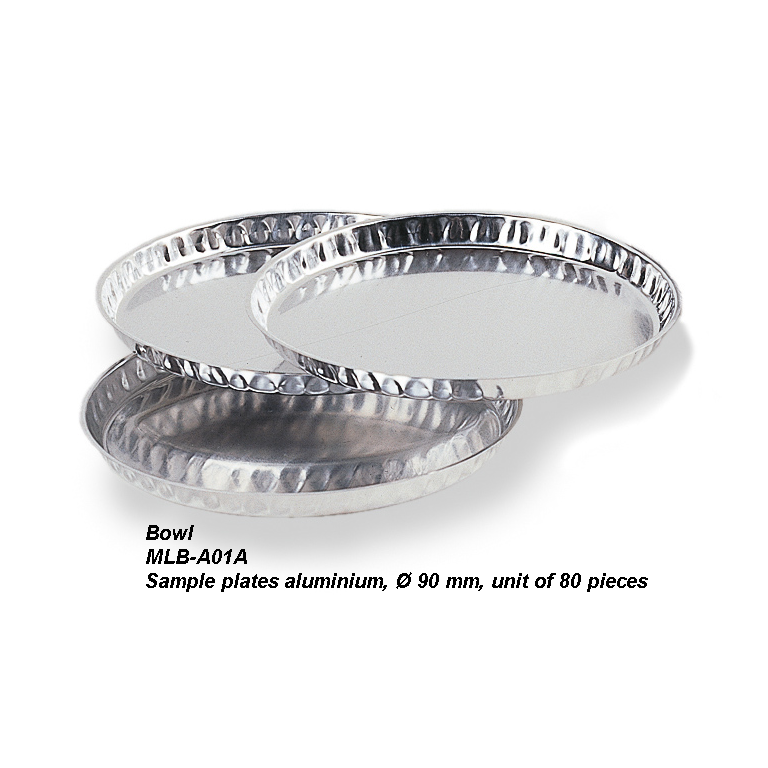

• 50 sample plates included

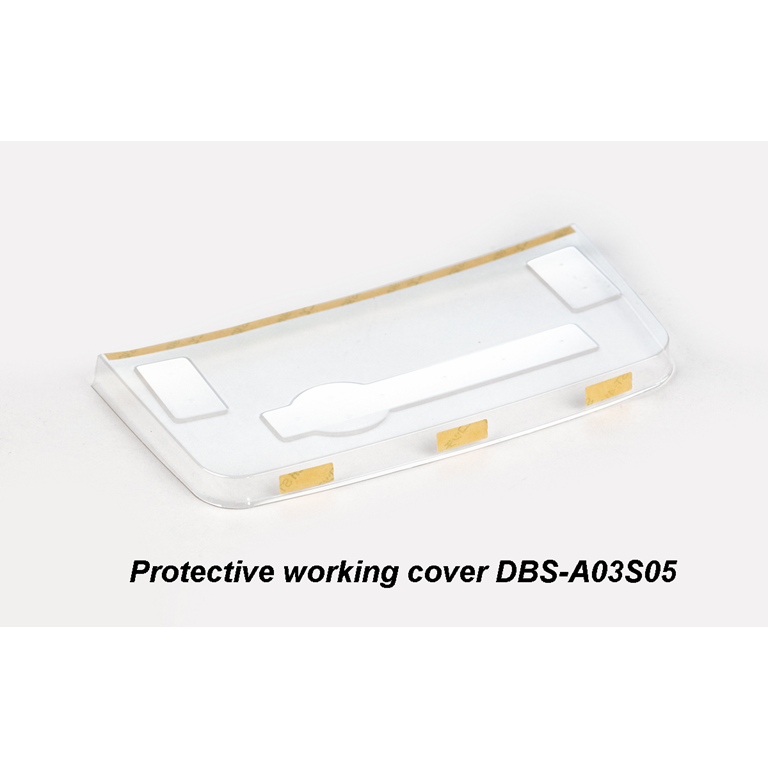

• Protective working cover included with delivery

Choice of Certificates of Calibration a)Oakleyweigh ISO Certificate b) DAkkS Certificate.
Option DAkkS Calibration Certificate | Mass 963-127

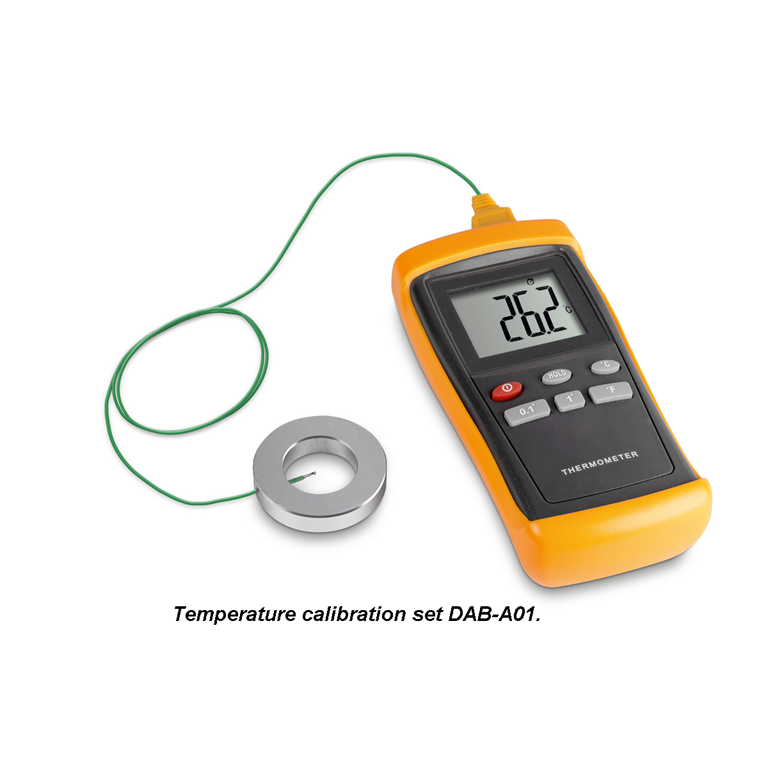

Option Factory Calibration Certificate | Temperature 964-305

Kern KERN DBS 60-3:Moisture Analyser Technical Data

• Weighing capacity [Max] 60 g
• Readability [d] 0,001 g
• Weighing system Single-Cell
• Sample – Moisture content 0,1% - 100%
• Sample – Dry content 100% - 0,1%
• Temperature [Min] (°C) 50 °C
• Temperature [Max] (°C) 200 °C
• Stabilization time 3 s
• Units g, % Humidity, % Dry mass, % ATRO
• Reproducibility 0,001 g
• Linearity ± 0,003 g
• Readability moisture [d] (%) 0,01%
• Drying modes Standard drying, Rapid drying, Gentle drying, Drying in levels
• Switch-off criteria time controlled, automatic, manual
• Input voltage device / power [Max] 220V -240V AC, 50Hz
• GTIN/EAN number 4045761124226



How does a moisture analyzer work?

A Moisture Analyser (also known as Moisture Balances) determines the amount of moisture in a product. This moisture content is directly responsible for the effective life and quality of the product being analysed.

The Moisture Analyser weighs a sample of the product, heats it up and once it is dry, weighs it again. This weight after drying is subtracted from the first weight. The result indicates the loss of moisture as a loss of mass.
