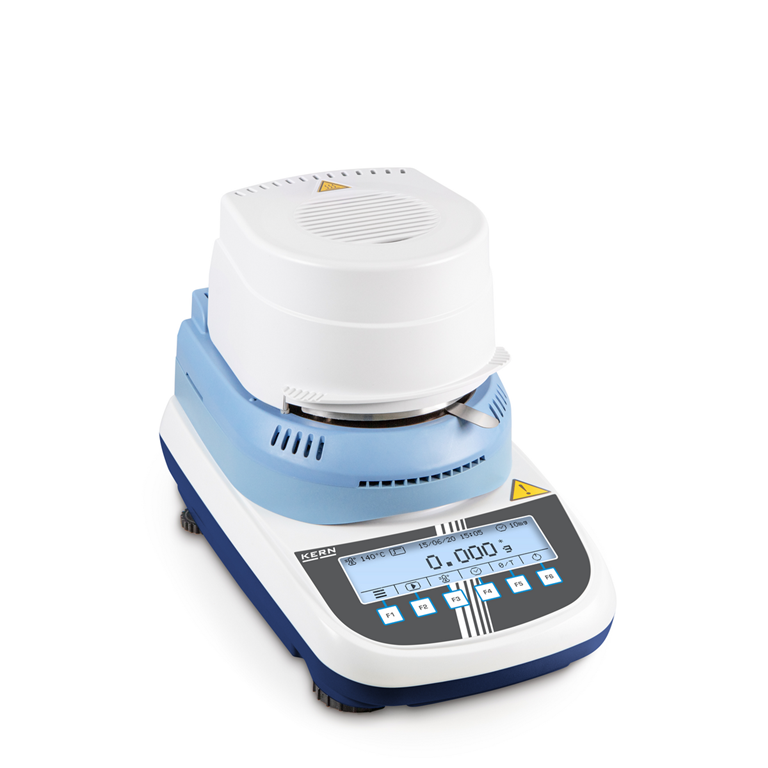

Kern KERN DLB 160-3A Moisture Analyser

1,305.00
(1,566.00 Incl. VAT)
Item in Stock
(0 review)

Accessories
DAkkS Calibration Certificate (Mass)
DAkkS Calibration Certificate (Temperature)

About the Kern DLB 160-3A Moisture Analyser

Moisture analyser with intuitive graphic display and step-by-step user guidance in 6 languages.
  • Backlit LCD graphic display, digit height 11 mm
  • 6 direct keys for rapid access to the main functions
    Home screen:
    [[1]] Main menu
    [[2]] Start drying process
    [[3]] Select drying temperature
    [[4]] Select shut-off criteria
    [[5]] Setting to zero/taring
    [[6]] Stand-by
    During measurement:
    [[7]] Current temperature
    [[8]] Current heating profile
    [[9]] Active switch-off criteria
    [[10]] Abort drying process
    [[11]] Stop drying process
    [[12]] Display current drying parameters
    [[13]] Toggle the unit for displaying the results
    At the end of the measurement:
    [[14]] Exit drying program
    [[15]] Print measurement report
    [[16]] (De)activate, edit GLP parameters
    [[17]] Display detailed result
    [[18]] Toggle the unit for displaying the results
  • 400 W halogen-quartz glass heater
  • User guidance in 6 languages (DE, EN, FR, IT, ES, PT)
  • Automatic taring when starting a measurement by closing the lid
  • The last value measured remains on the display until it is replaced by a new measurement

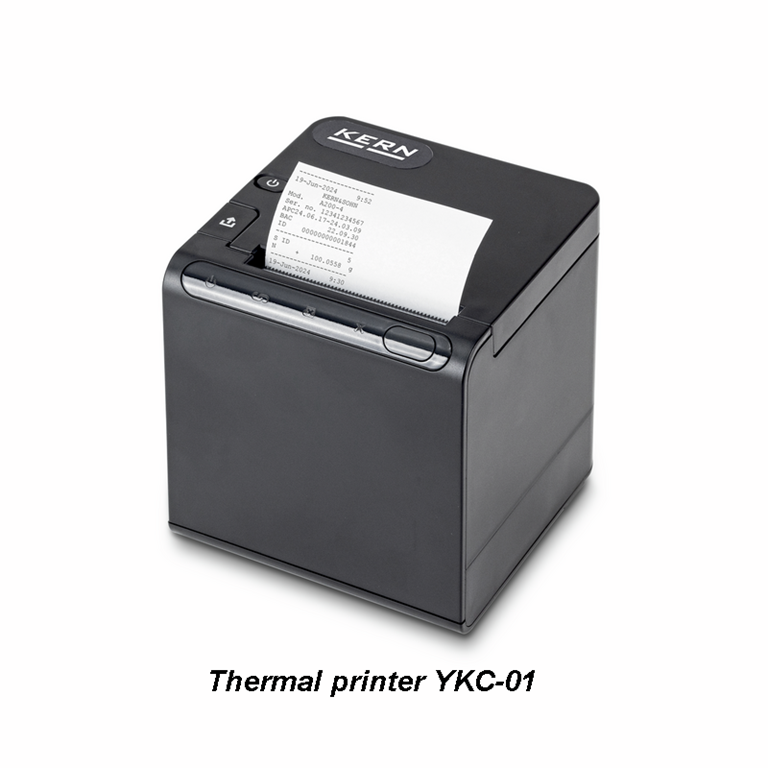

  • [[19]] Internal ; printout of balance ID, project ID, user ID, values determined by the drying process etc.

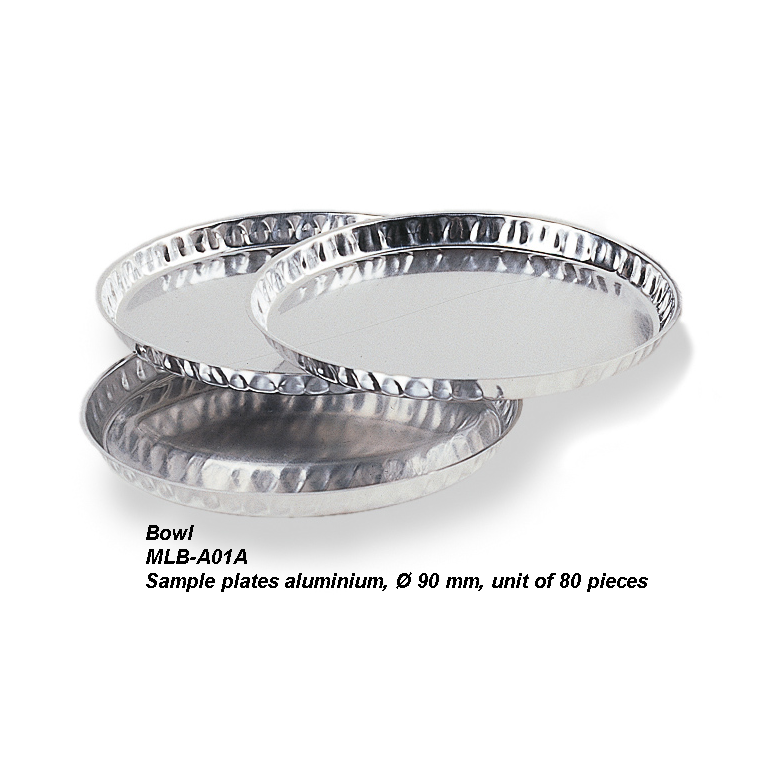

  • 10 sample plates included

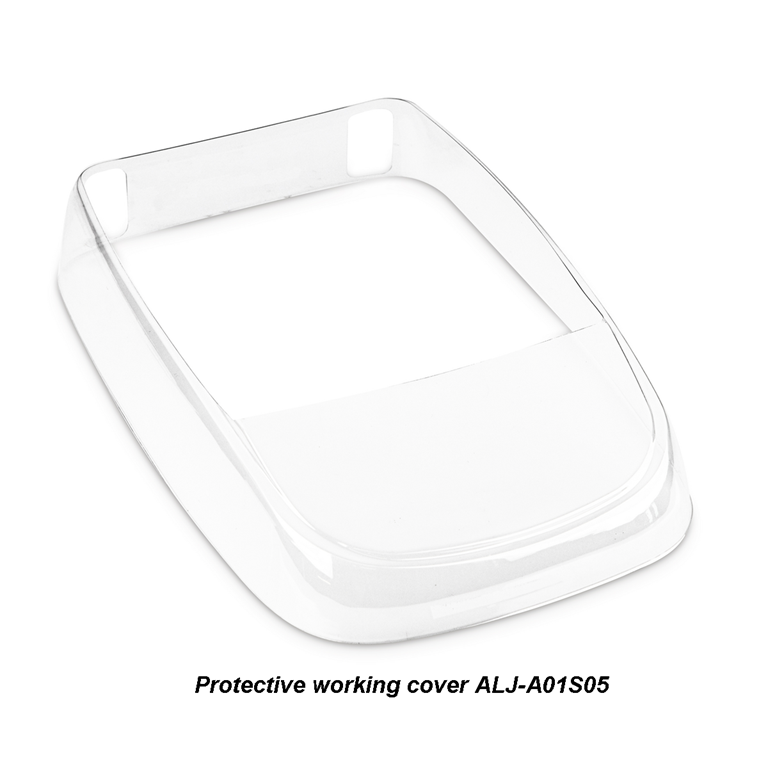

  • Protective working cover included with delivery
Choice of Certificates of Calibration a)Oakleyweigh ISO Certificate b) DAkkS Certificate.
Option DAkkS Calibration Certificate | Mass 963-127
Option Factory Calibration Certificate | Temperature 964-305


Kern KERN DLB 160-3A Moisture Analyser Technical Data
  • Weighing capacity [Max] 160 g
  • Readability [d] 0,001 g
  • Weighing system Strain gauge
  • Sample – Moisture content 10% - 100%
  • Sample – Dry content 100% - 10%
  • Temperature [Min] (°C) 35 °C
  • Temperature [Max] (°C) 160 °C
  • Stabilization time 4 s
  • Units g, % Humidity, % Dry mass
  • Reproducibility 0,001 g
  • Linearity ± 0,003 g
  • Readability moisture [d] (%) 0,01%
  • Drying modes Standard drying, Rapid drying
  • Switch-off criteria time controlled, automatic, manual
  • Input voltage device /  220 V -240V AC, 50 Hz power [Max] 60 Hz
  • GTIN/EAN number 4045761243361

  • How does a moisture analyzer work?

    A Moisture Analyser (also known as Moisture Balances) determines the amount of moisture in a product. This moisture content is directly responsible for the effective life and quality of the product being analysed.

    The Moisture Analyser weighs a sample of the product, heats it up and once it is dry, weighs it again. This weight after drying is subtracted from the first weight. The result indicates the loss of moisture as a loss of mass.
