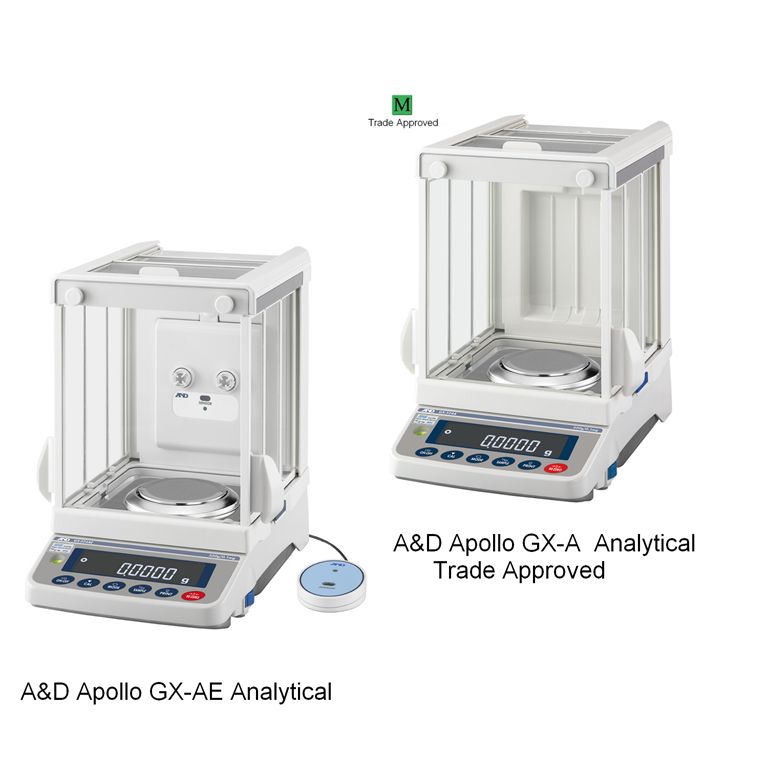

A&D Apollo GX-A & GF-A Analytical Balances
About the A&D Apollo GX-A & GF-A Analytical Balances
The A&D Apollo Series of GX-A and GF-A analytical lab balances incorporate advanced technologies to provide innovative solutions for the user. The A&D GX- A models have Internal Calibration, A&D GF-A have External Calibration and Trade Approved versions of the GX-A-Approved models are also available. The Electronically Controlled Load (ECL) technology enables users to perform a quick repeatability test internally without the need for an external weight. The entire process takes only 1.5 minutes versus traditional external weight procedures which can take up to 5-10 minutes, ultimately providing greater convenience and efficiency.Standard deviation is calculated by the Auto Precision Assessment (APA) feature. A&D Apollo smartly performs a diagnostic system check or Dia-Check providing a critical pass or fail indication. The integrated Impact Shock Detection (ISD) visually indicates the magnitudes of impact shocks that the sensor receives at four different levels. This function provides real-time feedback to the user to prevent damage to the weighing sensor.
Do I need a Calibration Certificate?
Oakleyweigh in-house traceable certificate.
Specifications for the GX-A and GF-A Analytical Balance Series -
- Wide selection including high-capacity, high-resolution, internal calibration (GX-A)
- Newly developed Smart SHS weighing sensor featuring ECL technology*2
- APA – Auto Precision Assessment. Automatic assessment of the balance performance. Calculation and display of Standard Deviation (repeatability) at the point of use without the need for calibration weights! Can be checked daily via a key press.
- Automatic Minimum Weight Calculation and setting via APA function
- Input minimum weight automatically via APA or manually using weights
- Visual Minimum Weight alert
- UAC – User Access Control, Administrator and Operator password access to ensure data integrity
- Calibration via One-touch, Interval, pre-set times (3) or automatically in response to ambient temperature changes (GX-AE/A)
- ISD – Impact Shock Detection*1, 4 level shock detection with visual and audible feedback. Maintain the performance of your investment through correct use of the balance. Ideal in automated loading applications and ideal for operator guidance
- FRD – Flow Rate Display*2, direct display of flow rate of a sample in g/s, g/m, g/h or volume flow rate in mL/s, mL/m, mL/h. Up to 10 sample densities can be saved to memory. Use in conjunction with the flow Rate Comparator to keep flow rates within designated limits

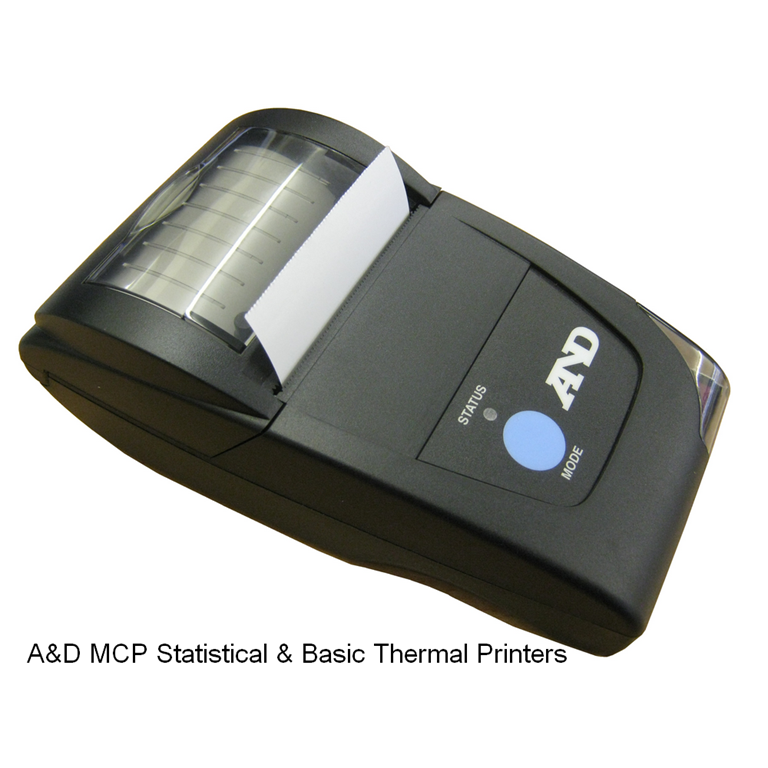

- SCF – Statistical Calculation Function, display and print various statistical results on the balance display or output to a printer or PC

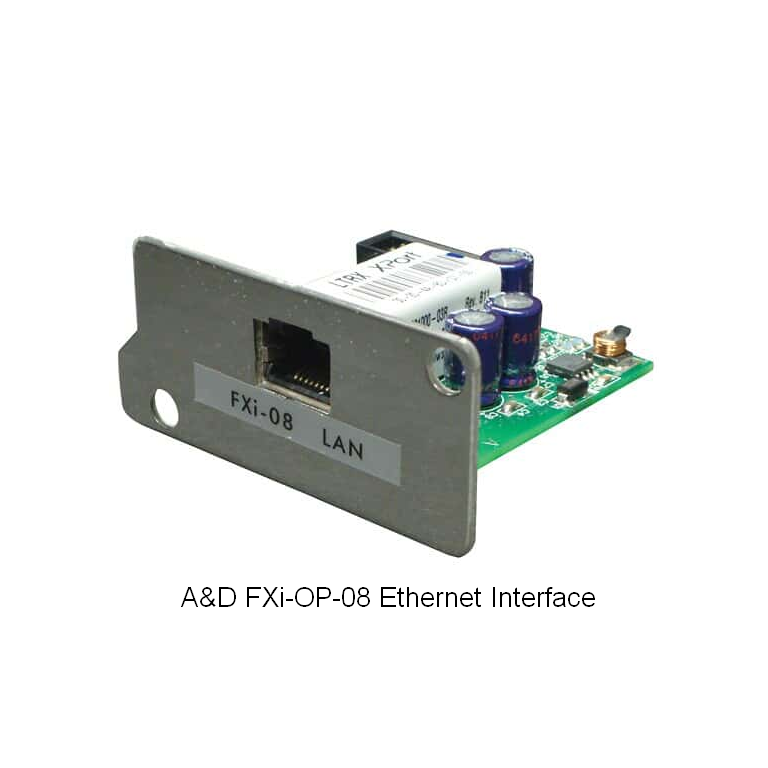

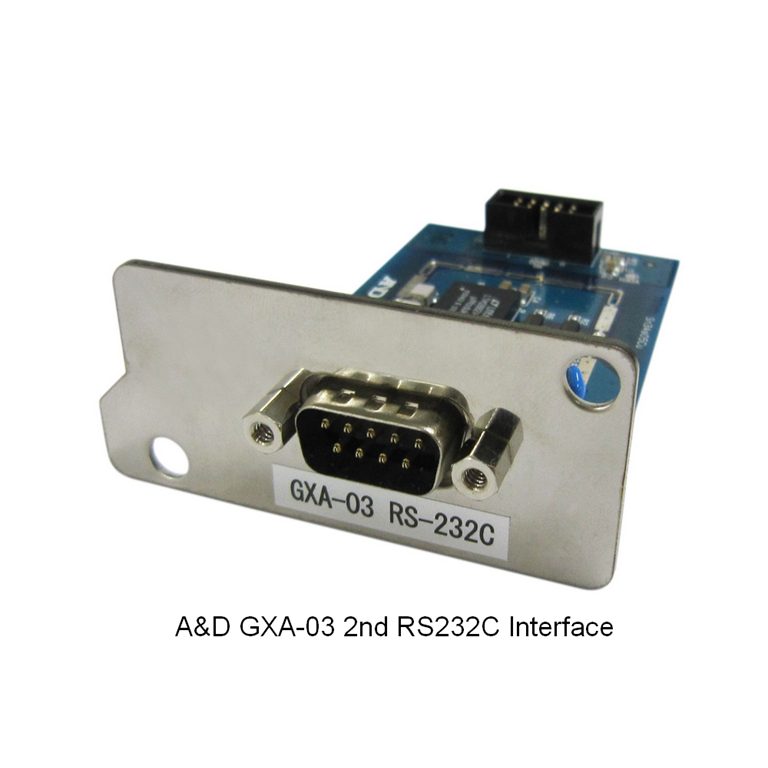

- Standard RS232 and Dual Mode USB interface. USB can be configured for ‘quick’ mode (connect to PC without the need for software installation) or bi-directional mode
- UFC – Universal Flexi Coms configurable data output, ideal for connection to data acquisition systems or barcode label printers etc.
- Gross/Net/Tare data output, Tare memory, Underhook, Capacity Indicator

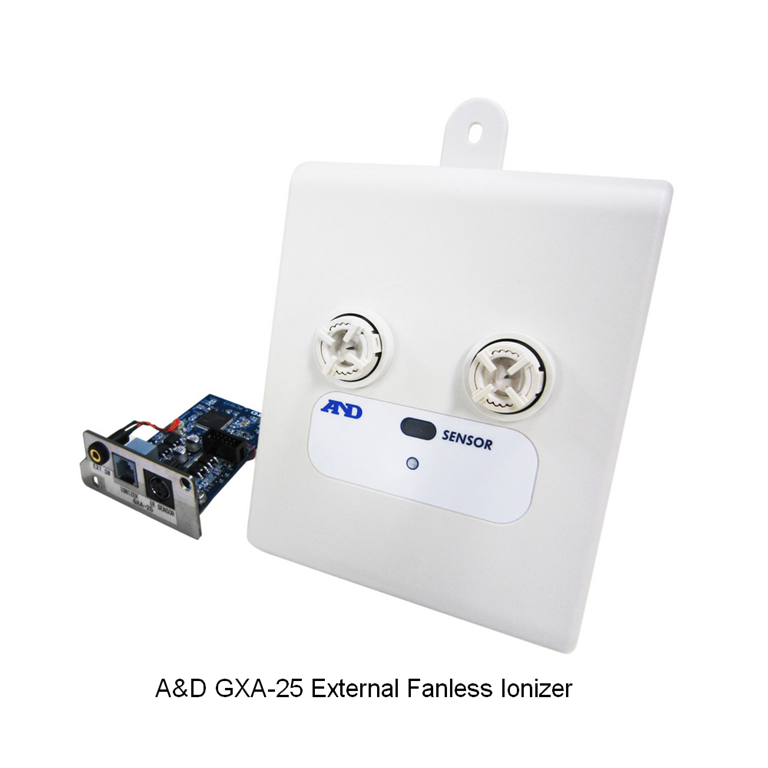

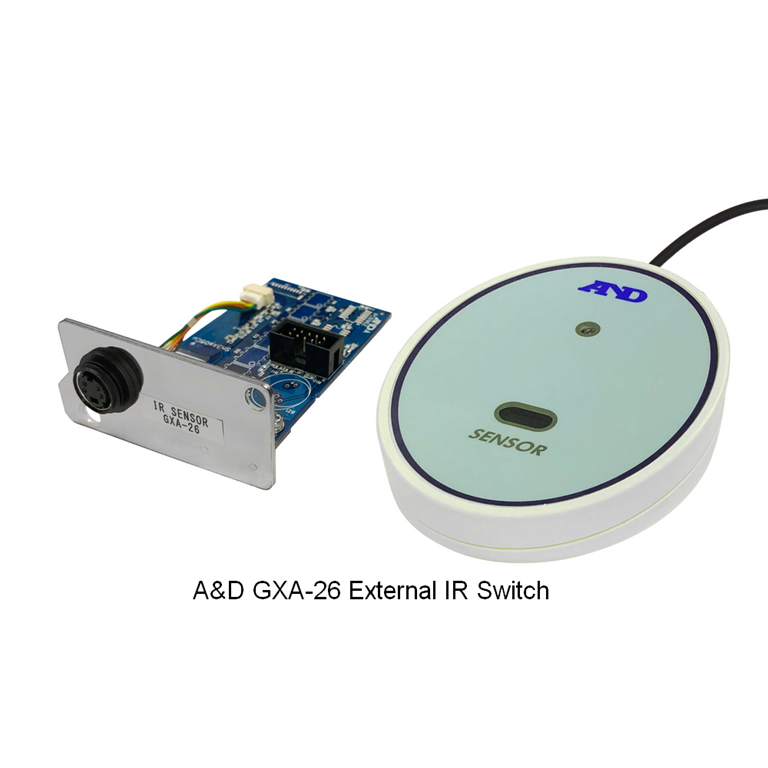

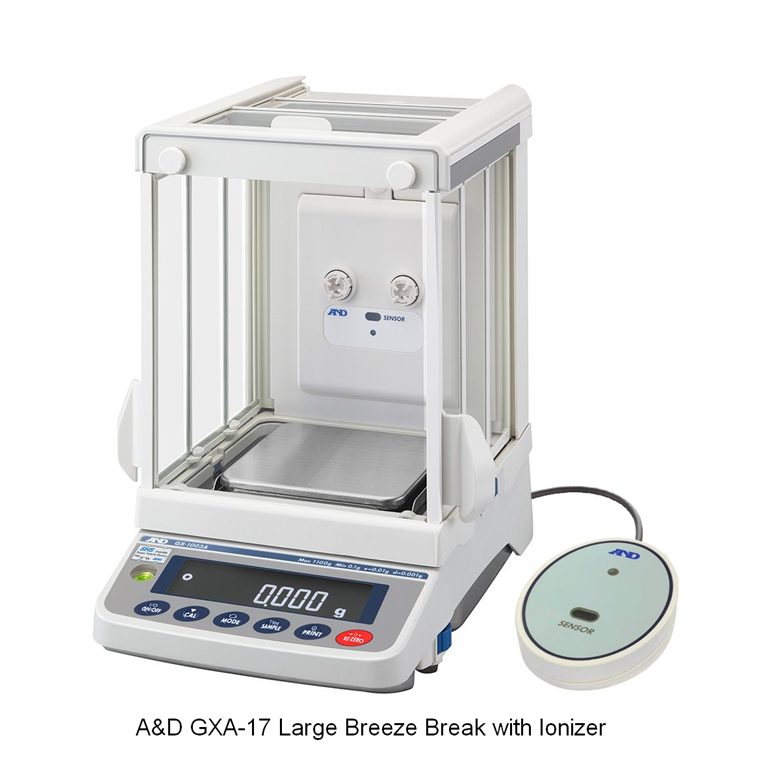

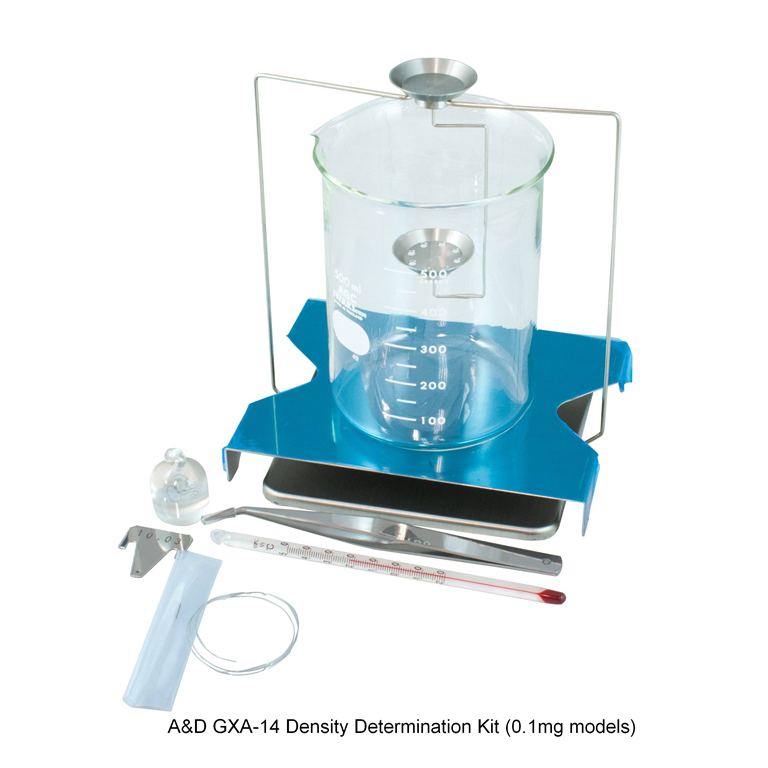

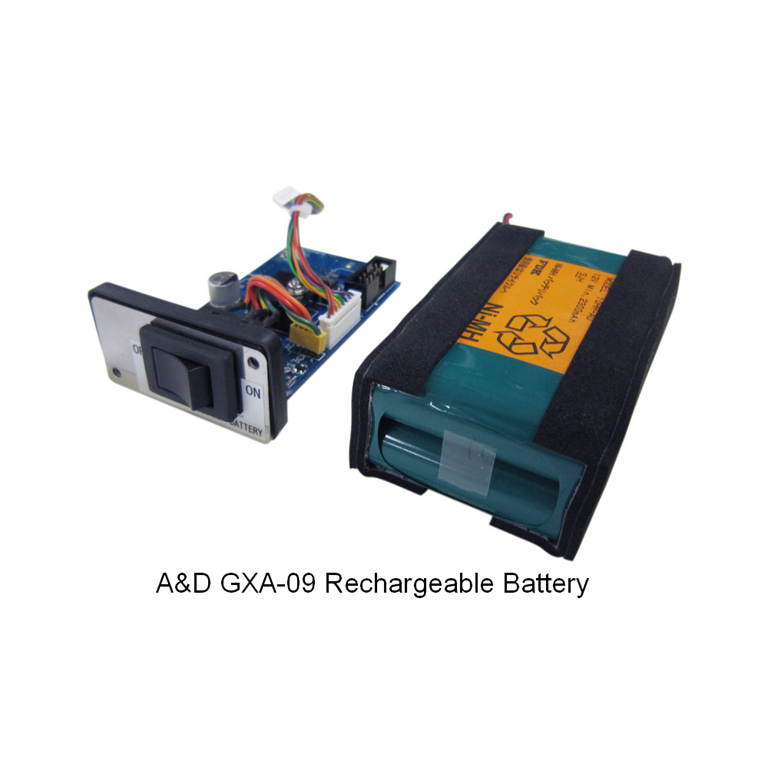

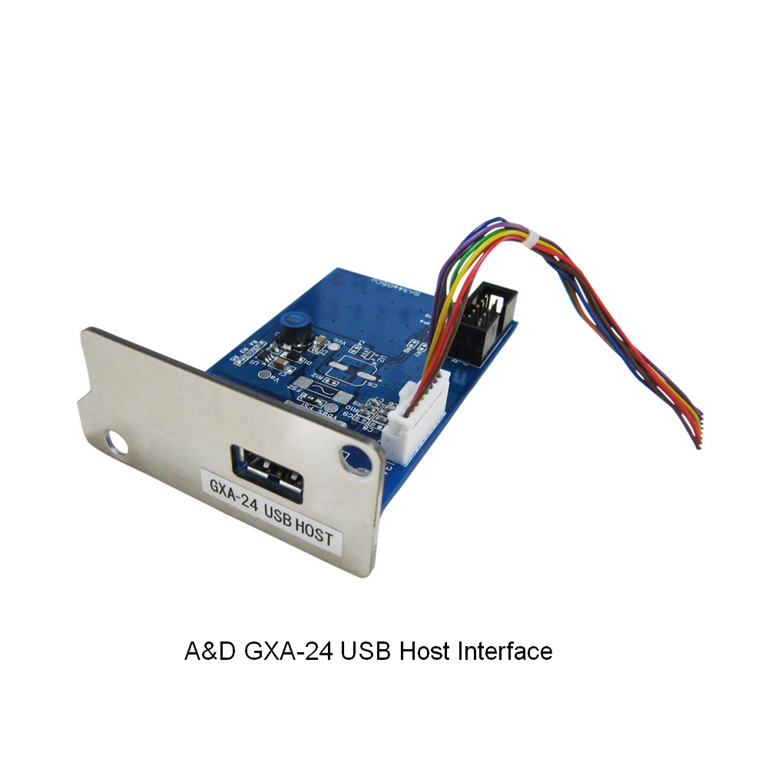

- Large selection of Options and Accessories
*1 Patented
*2 Patent pending
Model | Capacity |
Division |
Platform | Calibration |
|---|---|---|---|---|
| GX-124A-LFT | 122g | 0.1mg | Ø90mm | Internal |
| GX-224-LFT | 220g | 0.1mg | Ø90mm | Internal |
| GX-324A-LFT | 320g | 0.1mg | Ø90mm | Internal |
| GF-124A | 120g | 0.1mg | Ø90mm | External |
| GF-224A | 220g | 0.1mg | Ø90mm | External |
| GF-324A | 320g | 0.1mg | Ø90mm | External |
| GX-124A-LFT-Approved | 120g | 1mg | Ø90mm | Internal |
| GX-224A-LFT-Approved | 220g | 1mg | Ø90mm | Internal |
| GX-324A-LFT-Approved | 320g | 1mg | Ø90mm | Internal |
After purchasing a few cheaper balances in the past, we decided to increase our budget and find a better balance that would be more accurate and more importantly, repeatable. After discussing with the engineers at Oakleywe...igh, who were very knowledgeable and helpful, guided us to this model, the GX-124A-LFT. I have asked the other chemists using this balance and they all agree that the repeatability is fantastic. it make such a difference when you put a sample on the pan, shut the door and it goes straight to a stable reading and does not move! The internal calibration feature is a great added feature, just push the CAL button and its re-calibrated! Thank you again, very happy with our purchase, more to come! More
Used this balance for 1 month now and really impressed with the accuracy and how stable the reading are. Use a USB to link into our PC to take the reading and its very simple to set up. Very impressed.
