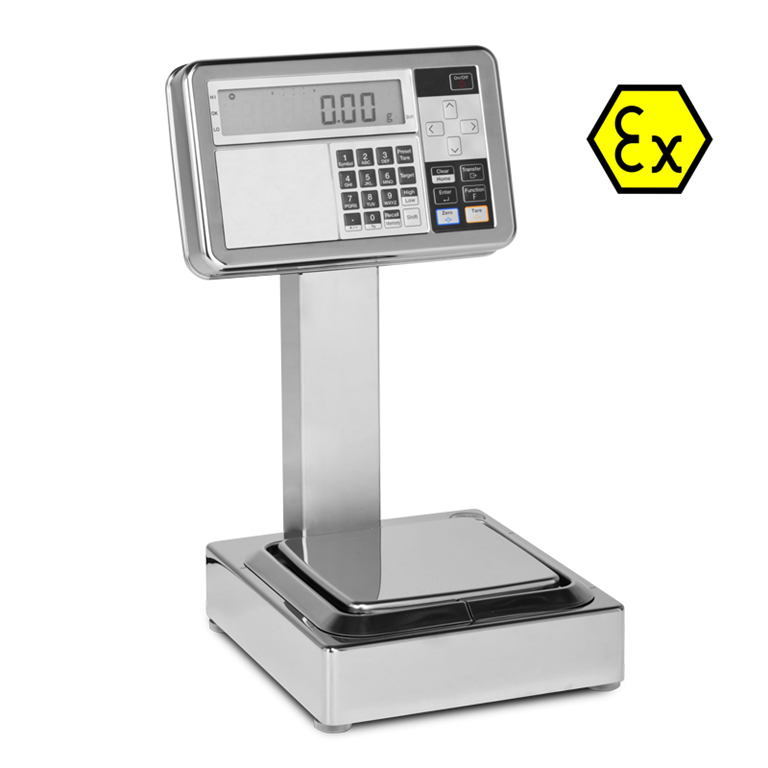

Dini Argeo GEX-FZ15000-1G 190 x 190mm (15000g x 0.1g)

About the Dini Argeo GEX-FZ15000-1G High Precision Balance for ATEX Zone 0.

• 27-key numeric and functional waterproof keyboard.
• 9-digit 25 mm LCD display.
• IP65 stainless steel structure.
• Dimensions 294 x 352 x 570 mm.
• Weighing sensor with tuning fork technology.
• Stainless steel plate, dimensions:
  - GEX-FZ620-1G, Ø 140 mm;
  - GEX-FZ6200-1G e GEX-FZ15000-1G, 190×190 mm;
• RS232 serial output incorporated in the power supply in safe area.
• 100 - 240VAC power supply in safe area, with RS232 serial port.
• 5 m cable between power supply and weight indicator.
• 1 m cable between platform and weight indicator.
• 2.5 m power cable.
• Operating temperature +5°C...+40°C (display and platform, 0°C...+40°C (power supply), non-condensing relative humidity 85%.
• Version approved for CE-M II legal-for-trade use.
• Capacity 15000g x 0.01g. Pan size 190 x 190mm.

AVAILABLE FUNCTIONS

• Zeroing;
• Semiautomatic tare;
• Preset tare;
• Tolerance check;
• Totalization in loading and unloading;
• Up to 100 storable tares;
• Bar graph display in relation to flow rate;
• 6 configurable serial communication protocols, sending the string continuously, at stability, on demand or at the press of a key;
• 5 selectable weighing filters;
• Zero tracking.

WEIGHING MODES

• Weighing in grams;
• Percentage weighing for formulation and recipe dosing;
• Customized coefficient for liquid weighing and grammage.

MAIN CERTIFICATIONS

• II 1G Ex ia II B T4 Ga
• OIML R76
