Dini Argeo GEX 1G High Precision Scales & Balances Atex Zone 0

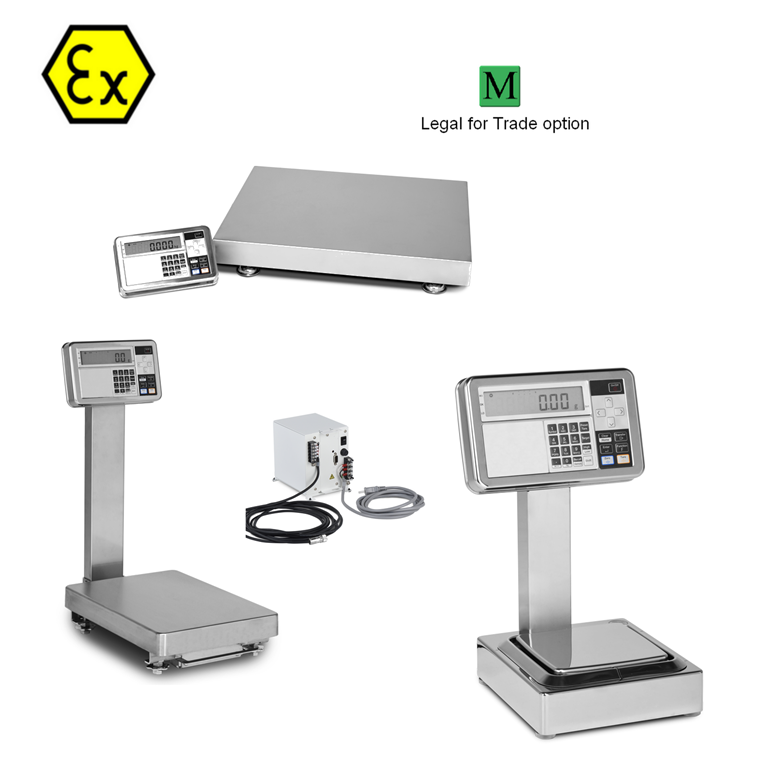

About the Dini Argeo GEX 1G ATEX Zone 0 Scales and Balances

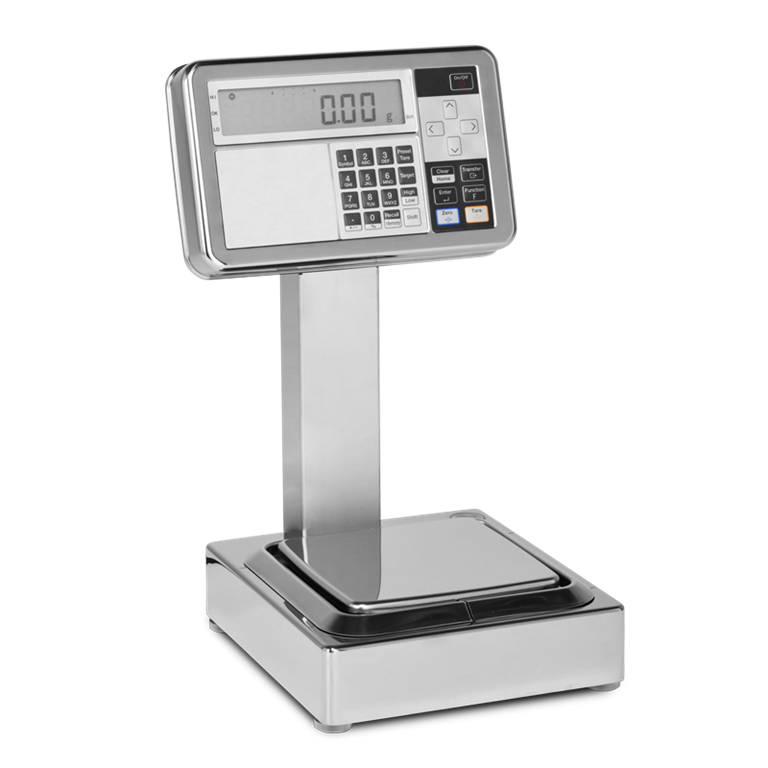

Balances: High precision laboratory balance for hazardous areas. Protection rating II 1G Ex ia II B T4 Ga for gas. CE-M approved (OIML R-76 / EN 45501).

• 27-key numeric and functional waterproof keyboard.
• 9-digit 25 mm LCD display.
• IP65 stainless steel structure.
• Dimensions 294 x 352 x 570 mm.
• Weighing sensor with tuning fork technology.
• Stainless steel plate, dimensions:
  - GEX-FZ620-1G, Ø 140 mm;
  - GEX-FZ6200-1G e GEX-FZ15000-1G, 190×190 mm;
• RS232 serial output incorporated in the power supply in safe area.
• 100 - 240VAC power supply in safe area, with RS232 serial port.
• 5 m cable between power supply and weight indicator.
• 1 m cable between platform and weight indicator.
• 2.5 m power cable.
• Operating temperature +5°C...+40°C (display and platform, 0°C...+40°C (power supply), non-condensing relative humidity 85%.
• Version approved for CE-M II legal-for-trade use.

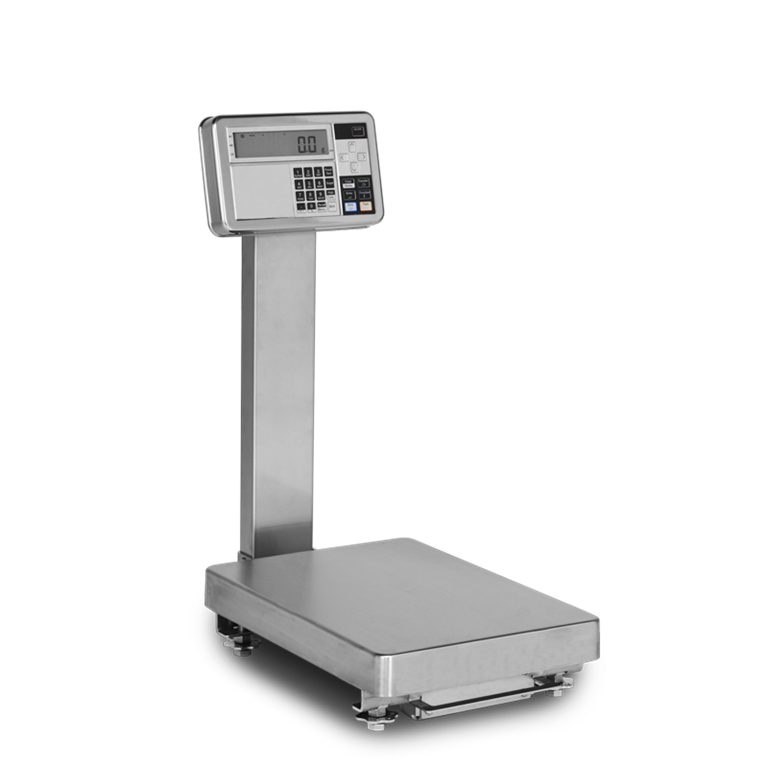

Bench Scales: High precision bench balance for hazardous areas. Protection rating II 1G Ex ia II B T4 Ga for gas. CE-M approved (OIML R-76 / EN 45501).

• 27-key numeric and functional waterproof keyboard.
• 9-digit 25 mm LCD display.
• IP65 stainless steel structure.
• Dimensions:
  - GEX-FZ30K-1G, 310 x 444 x 672 mm;
  - GEX-FZ60K-1G e GEX-FZ200K-1G, 380 x 653 x 804 mm;
• Weighing sensor with tuning fork technology.
• Stainless steel plate, dimensions:
  - GEX-FZ30K-1G, 310 x 330 mm;
  - GEX-FZ60K-1G e GEX-FZ200K-1G, 380 x 530 mm;
• 100 - 240VAC power supply in safe area, with RS232 serial port.
• 5 m cable between power supply and weight indicator.
• 1 m cable between platform and weight indicator.
• 2.5 m power cable.
• Operating temperature +5°C...+40°C (display and platform, 0°C...+40°C (power supply), non-condensing relative humidity 85%.
• Version approved for CE-M II legal-for-trade use.

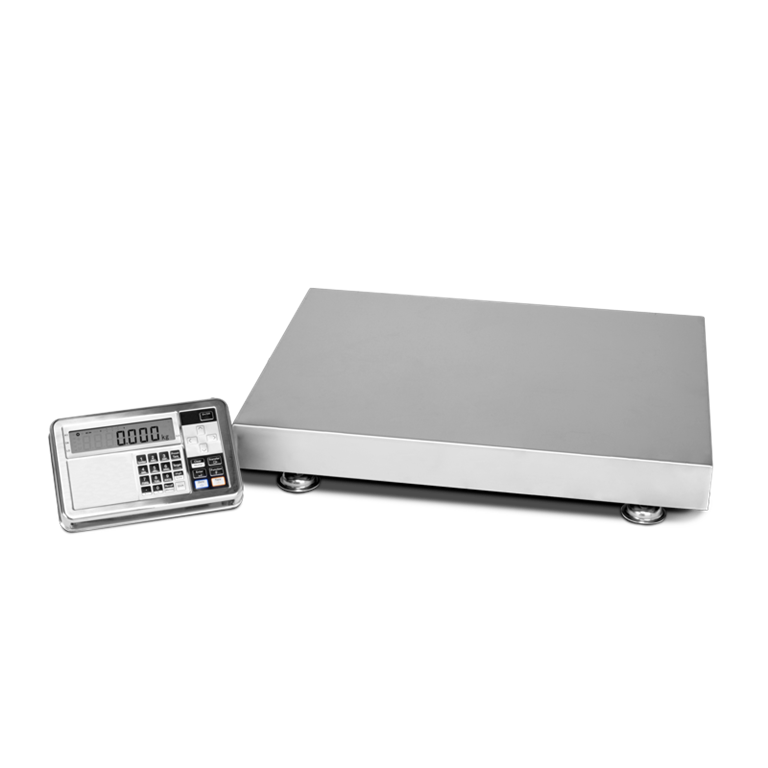

Floor Scales: High precision floor balance for hazardous areas. Protection rating II 1G Ex ia II B T4 Ga for gas. CE-M approved (OIML R-76 / EN 45501).

• 27-key numeric and functional waterproof keyboard.
• 9-digit 25 mm LCD display.
• IP65 stainless steel structure.
• Dimensions 800 x 600 x 142 mm.
• Weighing sensor with tuning fork technology.
• Stainless steel plate, dimensions 800 x 600 mm;
• 100 – 240VAC power supply unit in safe area, with RS232 serial port.
• 5 m cable between power supply and weight indicator.
• 5 m cable between platform and weight indicator.
• 2.5 m power cable.
• Operating temperature +5°C...+40°C (display and platform, 0°C...+40°C (power supply), non-condensing relative humidity 85%.
• Version approved for CE-M II legal-for-trade use.

AVAILABLE FUNCTIONS

• Zeroing;
• Semiautomatic tare;
• Preset tare;
• Tolerance check;
• Totalization in loading and unloading;
• Up to 100 storable tares;
• Bar graph display in relation to flow rate;
• 6 configurable serial communication protocols, sending the string continuously, at stability, on demand or at the press of a key;
• 5 selectable weighing filters;
• Zero tracking.

WEIGHING MODES

• Weighing in grams;
• Percentage weighing for formulation and recipe dosing;
• Customized coefficient for liquid weighing and grammage.

MAIN CERTIFICATIONS

• II 1G Ex ia II B T4 Ga
• OIML R7

Balances	Class	Capacity  (g)	Division (g)	Plate Size (mm)	Division (CE-M Approved) (g)	Linearity (g) +/-	Repeatability (g)
GEX-FZ620-1G	II	620	0.001	Ø 140	0.01	0.002	0.001
GEX-FZ6200-1G	II	6,200	0.01	190 x 190	0.1	0.02	0.01
GEX-FZ15000-1G	II	15,000	1	190 x 190	0.02	0.2	0.1

Bench Scales	Class	Capacity  (g)	Division (g)	Plate Size (mm)	Division (Trade Approved) (g)	Linearity (g) +/-	Repeatability (g)
GEX-FZ30K-1G	II	620	0.001	Ø 140	0.01	0.002	0.001
GEX-FZ60K-1G	II	6,200	0.01	190 x 190	0.1	0.02	0.01
GEX-FZ200K-1G	II	15,000	1	190 x 190	0.02	0.2	0.1

Floor Scale	Class	Capacity  (kg)	Division (g)	Plate Size (mm)	Division (CE-M Approved) (g)	Linearity (g) +/-	Repeatability (g)
GEX-FZ300K-1G	II	300	1	800 x 600	10	5	8
