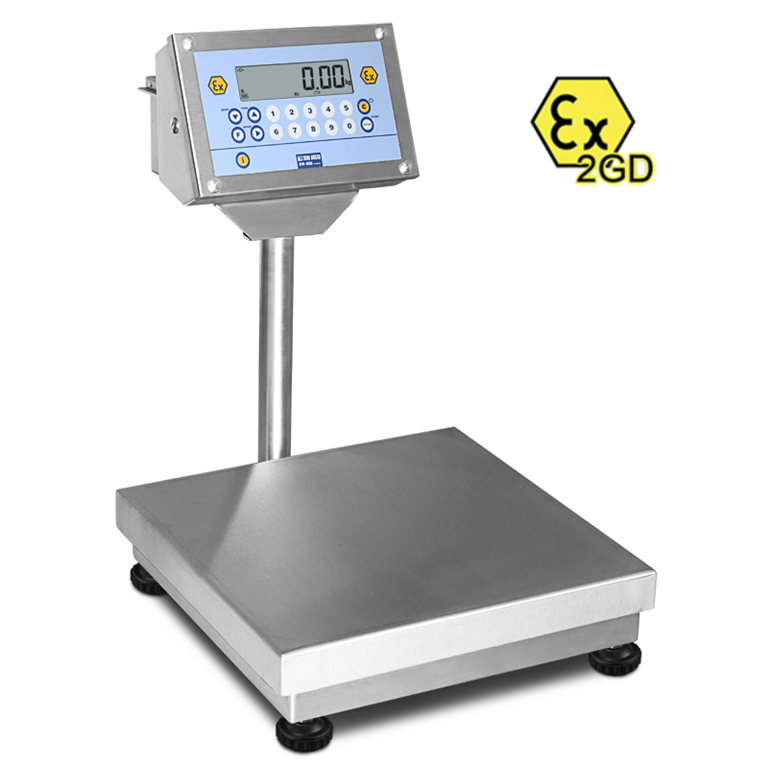

Dini Argeo EPXI2GD150B "Easy Pesa 2GD" 600mm x 600mm (150kg x 20g)

About the Dini Argeo EPXI2GD150B Scale for ATEX 1, 21, 2, 22 zones

Fully stainless steel bench scales, for specific use in ATEX hazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it's needed. These scales don't need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with the ATEX declaration of conformity. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection.

Platform: Approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards. ATEX approved load cell with ATEX protection:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
Structure, enclosure and loading plate made in AISI304 satin finish stainless steel. Adjustable levelling feet with plastic over shoe. Supplied with support column, height:
- 500 mm in the "Q" models;
- 700 mm in the "X" models.

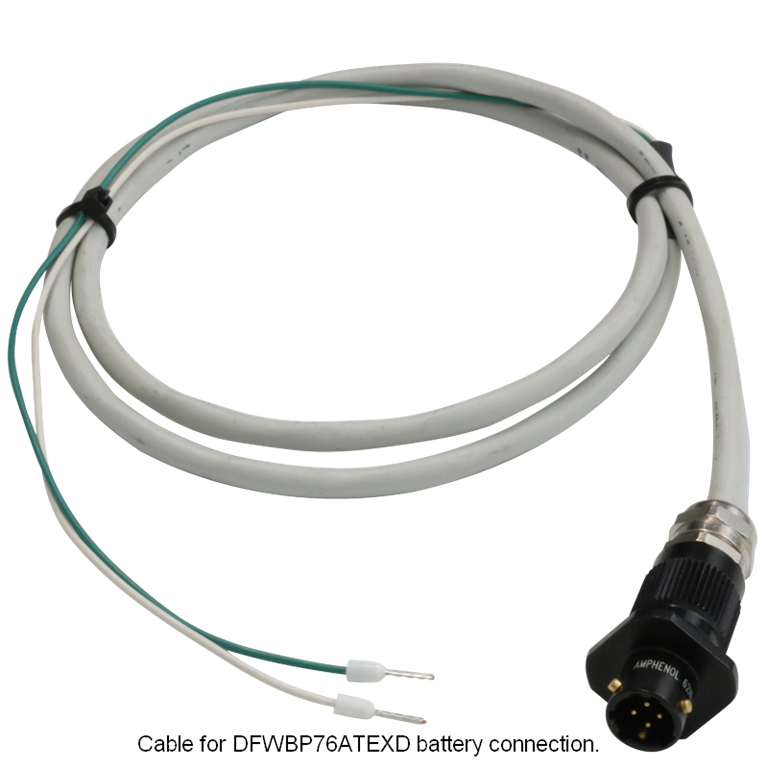

Length of connection cable to the indicator: 3m.
Indicator:
IP68 Weight indicator for ATEX zones with protection methods according to:
ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases.
ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust.
EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501).
Waterproof 17-key numerical and functional keyboard.
LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
A/D 24-bit sigma-delta conversion, up to 100 conv./sec. autoselect.

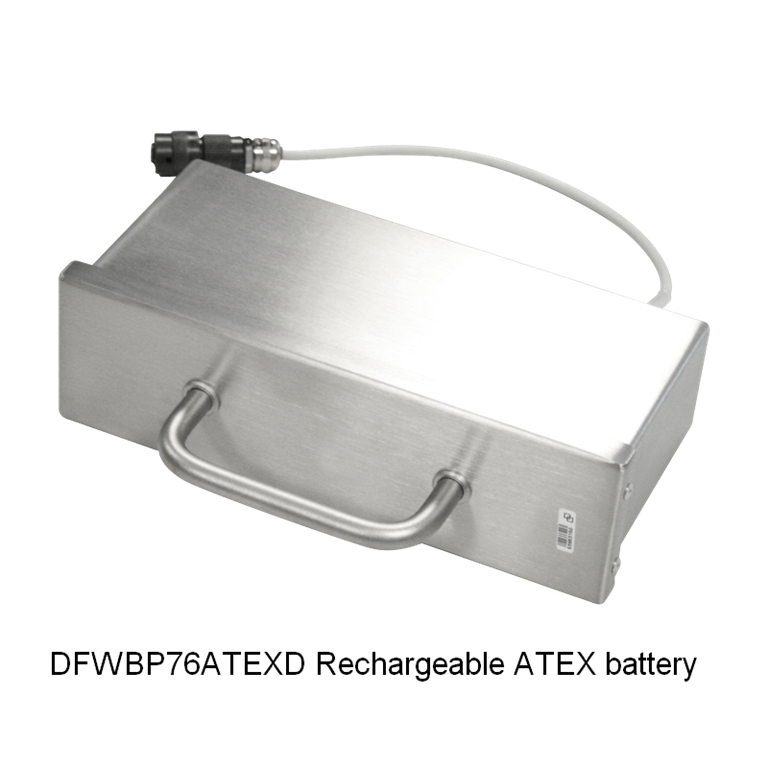

Power supply through external battery pack with 160h operating time. An extra battery pack and cable for continuous use (24/7) are available as an option. EU, UK, US, AU plugs included as standard.
Charger included in the supply.
Capacity 150kg x 20g. Platform size: 600mm x 600mm.

• Zeroing
• Automatic tare
• Pre-settable tare
• Selectable function command
• On/off switching.

• High Resolution Weighing x 10
• Net/Gross or lb/kg conversion
• Weight totalization
• Formula weighing
• +/- Check-weighing
• Counting (Max. resolution of 1.500.000 divisions)

The price includes the ATEX declaration of conformity (DCATEX2GD) and the load cell certificate of conformity (CCATEX).
