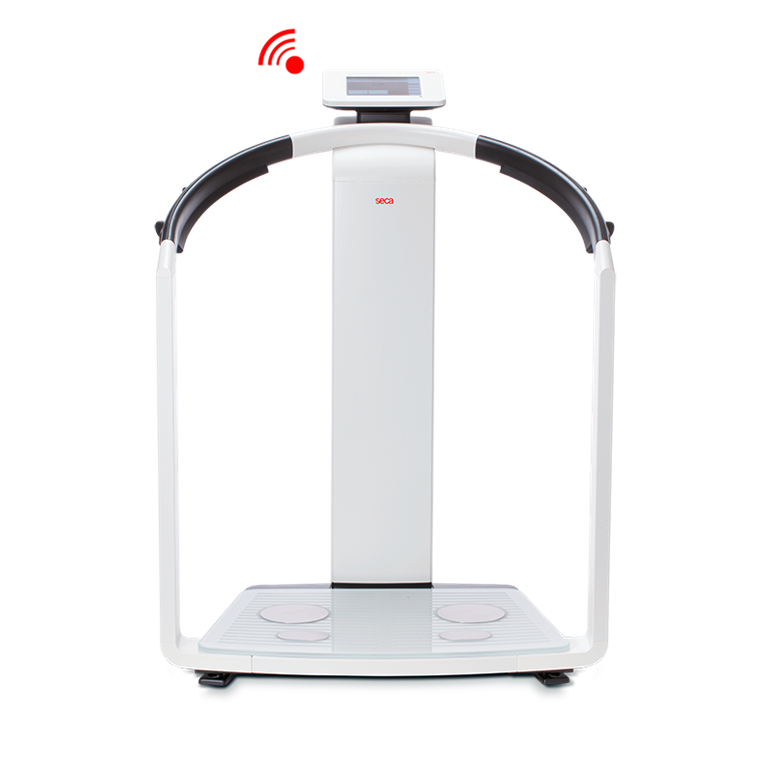

Seca mBCA 515 Diagnostic Scale
About the Seca mBCA 515 Diagnostic Scales
The Seca mBCA 515 (Medical Body Calculation Analyser) is a unique medically valid device which takes over where BMI calculation stops. It breaks down the patients body weight in to body compartments relevant to the practice of medicine, namely, Fat Mass and Fat-Free Mass, Body Water (made up of extracellular water and intracellular water) and Skeletal Muscle Mass. With the short measurement time of less than 20 seconds and the simple and intuitive navigation over the touch-screen display the doctor can now obtain indications of medical disorders which were previously difficult to diagnose without additional examinations. Clinically validated, medically precise, and medically relevant. seca has compared its measurement results from the seca mBCA with those of the scientific gold standard in clinical studies. It is clear that the Seca mBCA not only promises to but also fulfills medical requirements. It has a large glass platform which is suitable for weighing patients up to 300 kilograms with increments of 50g
Analysis with six modules
The six analytical modules of the new seca mBCA 515 offer the user innumerable diagnostic options. With precise ratios such as fat mass to weight or extracellular to intracellular water, the doctor can now obtain indications of medical disorders which were previously difficult to diagnose without additional examinations. Another significant advantage comes with the graphic presentation of measurement results, which visualizes the doctor’s findings for the patient.
The six modules in the seca mBCA 515:
- Energy
- Fluid
- Function/Rehabilitation
- Development/Growth
- Health risk
- Raw impedance data
Technical data
- Capacity: 300 kg
- Division: 50 g
- Calibration class: III
- Medical Device class: IIa
- Dimensions (WxHxD): 984 x 1209 x 850 mm
- Display type: 8.4" touch-screen display, can be rotated 360°
- Interfaces: 360° wireless (wireless), USB 2.0, Ethernet
- Measurement method: 8-point bioelectrical impedance analysis
- Measurement current: 100 µA
- Measurement time, normal mode: max. 20 seconds
